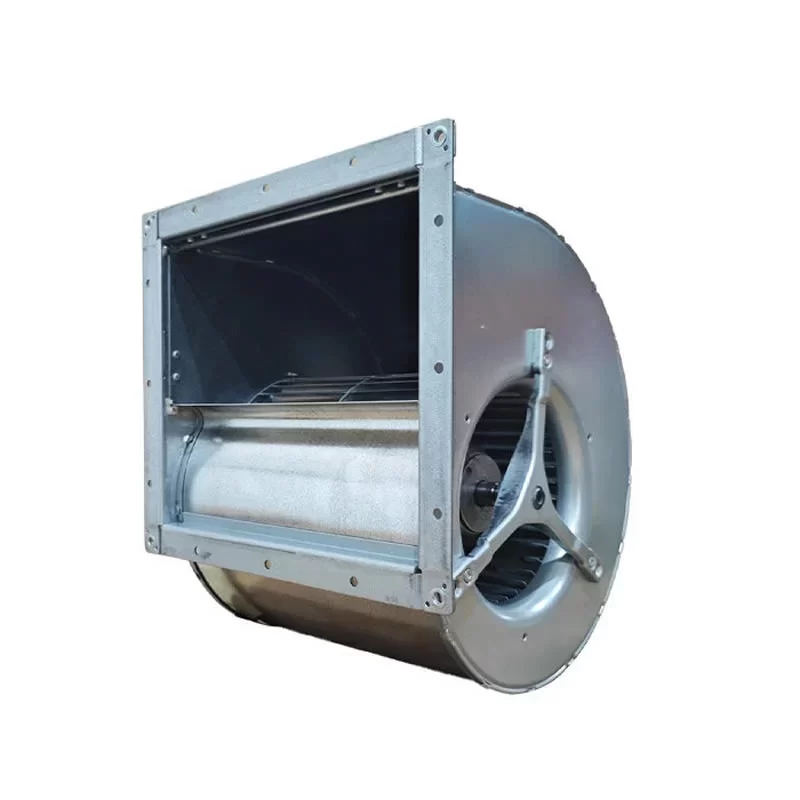

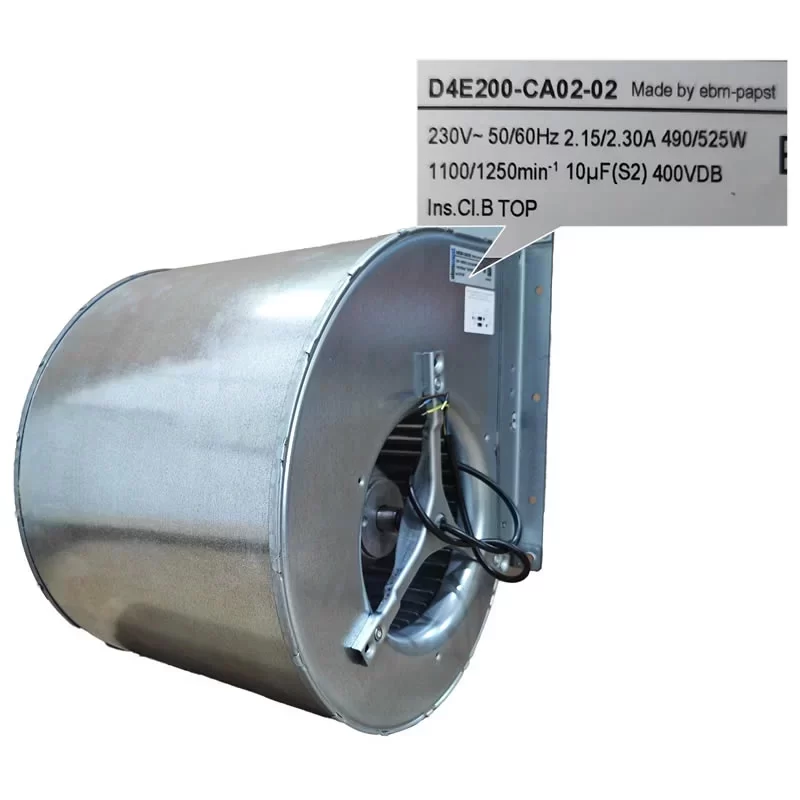

D4E200-CA02-02 ebmpapst 230V 200mm AC Centrifugal Fan

Description

The ebmpapst D4E200-CA02-02 is a heavy-duty 230 V single-phase AC dual-inlet centrifugal fan featuring a 200 mm forward-curved galvanized steel impeller integrated into a robust scroll housing. Driven by the high-power M4E068-LA external rotor motor, this unit is engineered for demanding industrial ventilation, delivering significant airflow with a power consumption up to 525 W. Designed for S1 continuous operation, it features a black painted rotor, premium ball bearings, and internal thermal overload protection. This high-torque air-moving solution is optimized for high-resistance cooling environments, requiring a minimum back pressure of up to 200 Pa for safe operation, and is ideal for large-scale air conditioning and industrial ventilation systems across an ambient temperature range of -25 °C to 30 °C.

D4E200-CA02-02 Fan Parameters
Model Number: D4E200-CA02-02
Manufacturer: ebmpapst
Motor Model: M4E068-LA
Series: AC Centrifugal Series
Type: AC Centrifugal Fan (Dual-Inlet with Scroll Housing)
Impeller Size: 200 mm
Dimensions: 216 x 228 x 206 mm (Approximate housing size)
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Weight: 11.3 kg
Power Consumption: 490 W (50 Hz) / 525 W (60 Hz)
Nominal Current: 2.15 A (50 Hz) / 2.30 A (60 Hz)
Starting Current: 3.1 A (50 Hz) / 2.9 A (60 Hz)
Speed: 1100 RPM (50 Hz) / 1250 RPM (60 Hz)
Required Capacitor: 10 µF / 400 VDB (S2 standard)
Min. Back Pressure: 50 Pa (50 Hz) / 200 Pa (60 Hz)
Motor Design: Single-phase External Rotor Motor (PSC)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Touch Current: < 0.75 mA
Number of Blades: 42 (Forward-curved)
Direction of Rotation: Counter-clockwise, viewed toward rotor
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Rotor Surface: Painted black
Installation Position: Any
Condensate Discharge Holes: None
Degree of Protection: IP54
Moisture Protection Class: F3-1
Operating Temperature: -25 – +30 °C
Standard Compliance: EN 60335-1
Approval Agency: CCC

Application
The ebmpapst D4E200-CA02-02 centrifugal fan is primarily utilized in air conditioning units, cleanroom ventilation systems, laboratory equipment cooling, industrial air curtains, and electronic cabinet climate control.
