Description

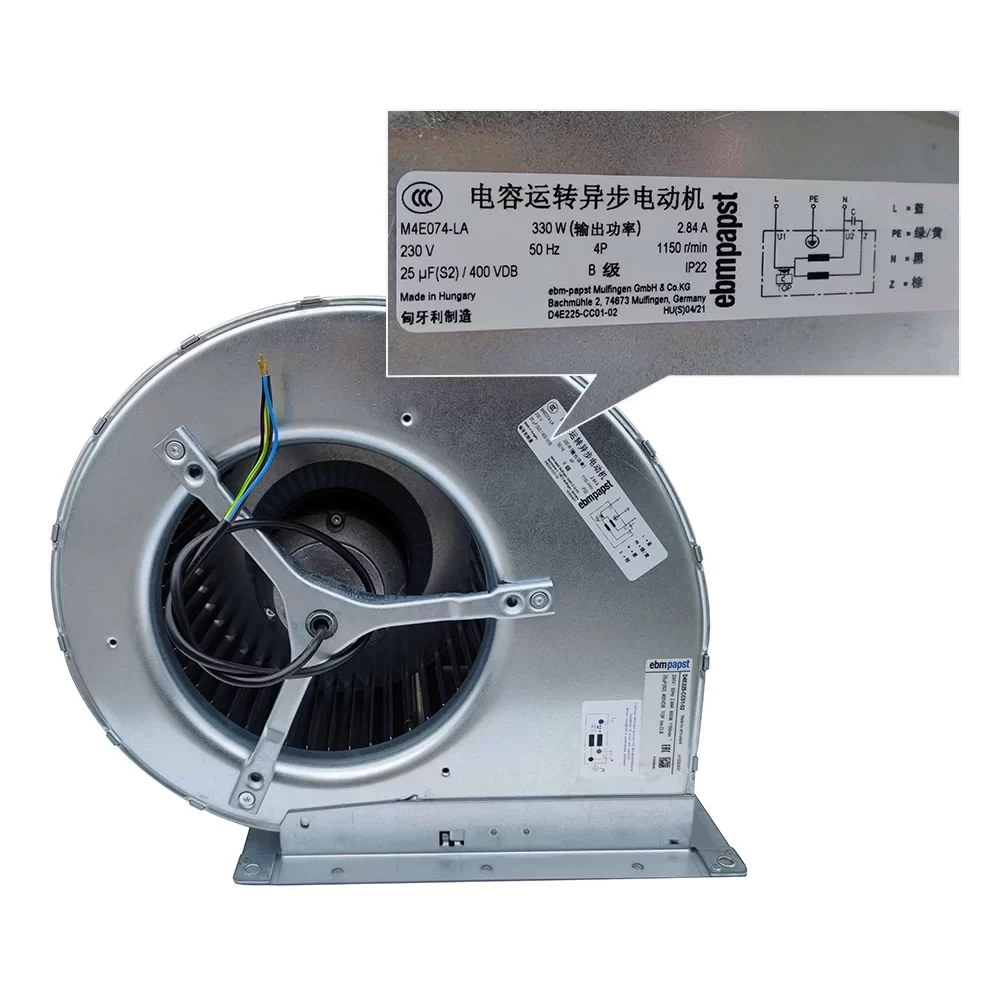

The ebmpapst D4E225-CC01-02 is a single-phase AC Centrifugal Blower with a size of 225mm. It operates on a nominal voltage of 230VAC and supports both 50Hz and 60Hz frequencies.At 50Hz, the blower operates at 1150 RPM, with a power input of 650W and a current draw of 2.84A. It delivers an airflow of 2650 m³/h and produces a sound pressure level of 65 dB(A). It uses a 25 µF motor capacitor with a voltage of 400 VDB. At 60Hz, it operates at 1300 RPM, with a power input of 625W and a current draw of 2.75A. The airflow is 1970 m³/h, and the sound pressure level is 61 dB(A). For 60Hz operation, it requires a 16 µF motor capacitor with a voltage of 400 VDB.
The fan is designed for operation within an ambient temperature range of -25°C to 30°C, and is suitable for transport/storage between -40°C and +80°C. It features a ball bearing motor, with an impeller and housing made of galvanised sheet steel. The motor is anti-vibration mounted on both sides. It has an IP22 type of protection, an insulation class of “B”, and includes an internally wired thermal overload protector (TOP). The D4E225-CC01-02 conforms to standard EN 60335-1 and holds approvals including CCC and EAC. It also meets EMC standards for both immunity (EN 61000-6-2) and emission (EN 55022 Class B).
D4E225-CC01-02 Fan Parameters
Model: D4E225-CC01-02
Manufacturer: ebmpapst
Type: AC Centrifugal Blower
Motor: M4E074-LA
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Performance (50Hz):
Speed: 1150 RPM
Power Input: 650 W
Current Draw: 2.84 A

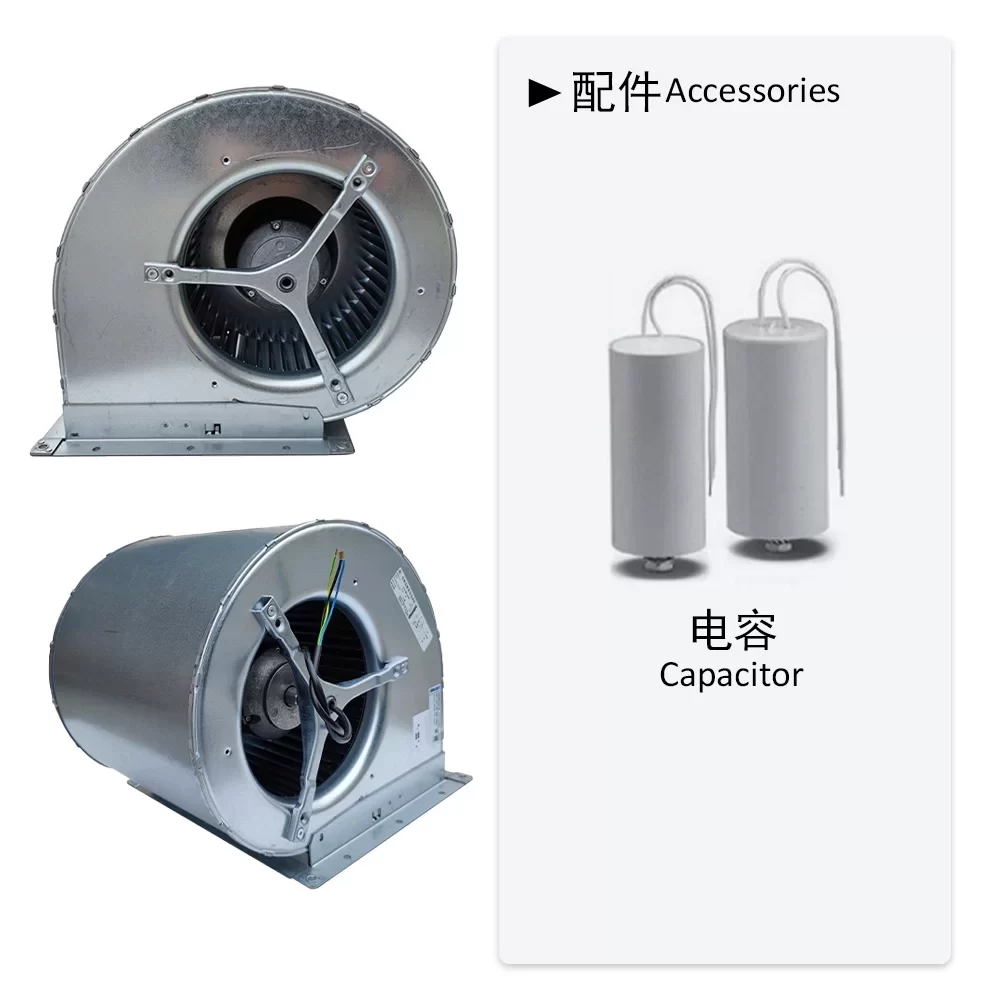

Motor Capacitor: 25 µF
Capacitor Voltage: 400 VDB
Capacitor Standard: P2 (CE)
Min. Back Pressure: 100 Pa
Airflow: 2650 m³/h
Sound Pressure Level: 65 dB(A)
Performance (60Hz):
Speed: 1300 RPM
Power Input: 625 W
Current Draw: 2.75 A
Motor Capacitor: 16 µF
Capacitor Voltage: 400 VDB
Capacitor Standard: P2 (CE)
Min. Back Pressure: 300 Pa
Airflow: 1970 m³/h
Sound Pressure Level: 61 dB(A)
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 30 °C
Max. Permitted Ambient Temperature for Motor (transport/storage): +80 °C
Min. Permitted Ambient Temperature for Motor (transport/storage): -40 °C
Starting Current: 4.5 A
Size: 225 mm
Motor Size: 74
Material of Impeller: Sheet steel, galvanised
Housing Material: Sheet steel, galvanised
Motor Suspension: Motor anti-vibration mounted on both sides
Direction of Rotation: Counter-clockwise, seen on rotor
Type of Protection: IP22
Insulation Class: “B”
Humidity (F) / Environmental Protection Class (H): H0+
Mounting Position: Any
Condensation Drainage Holes: None, open rotor
Operation Mode: S1
Motor Bearing: Ball bearing
Touch Current (according to IEC 60990): < 0.75 mA
Motor Protection: Thermal overload protector (TOP) wired internally
Protection Class: I (if protective earth is connected by customer)
Product Conforming to Standard: EN 60335-1
Approval: CCC; EAC
EMC Immunity to Interference: According to EN 61000-6-2 (industrial environment)
EMC Interference Emission: According to EN 55022 (Class B, household environment)
Weight: 12 KG
Application: General ventilation, industrial air circulation, machinery cooling.
