Description

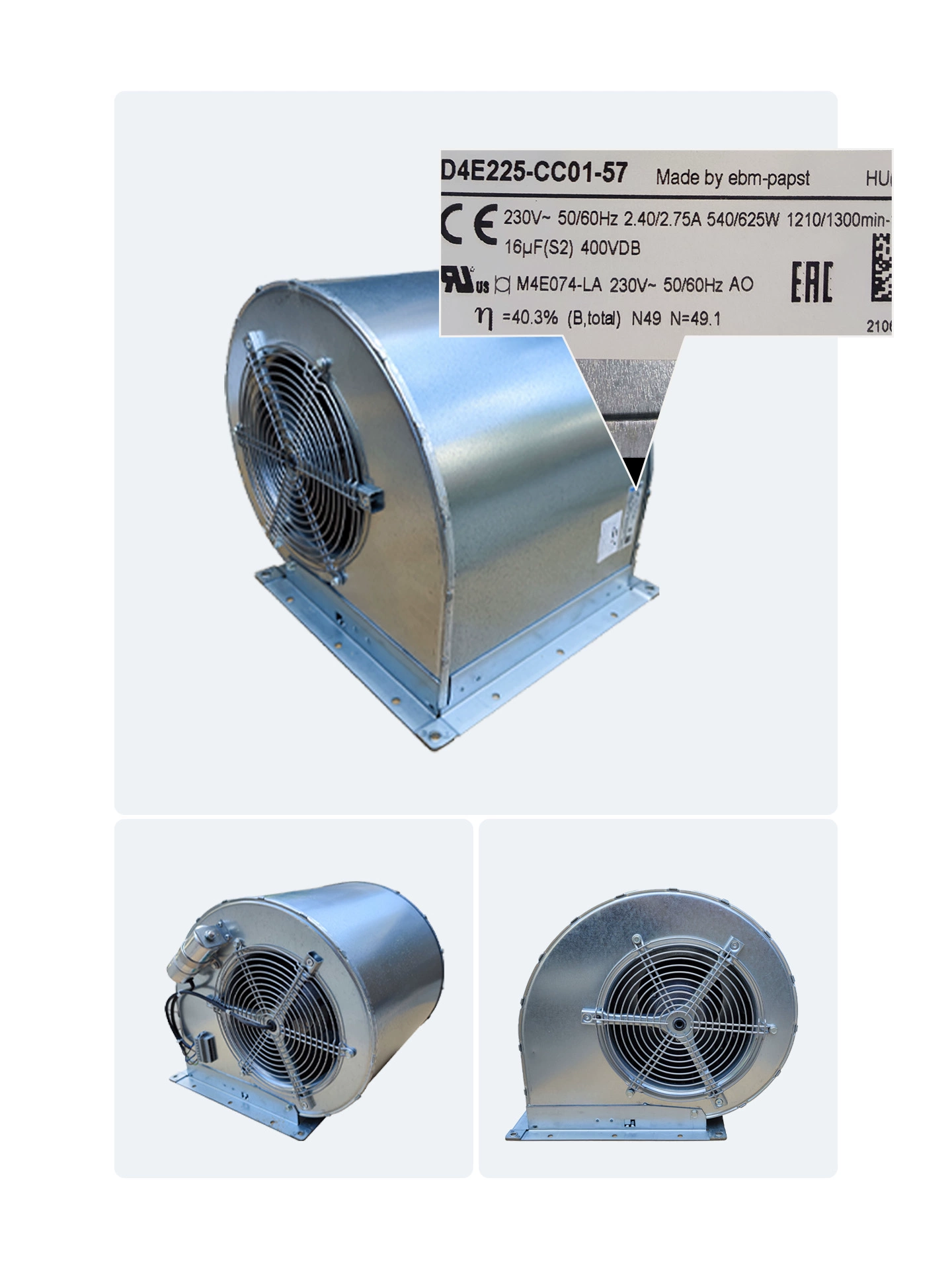

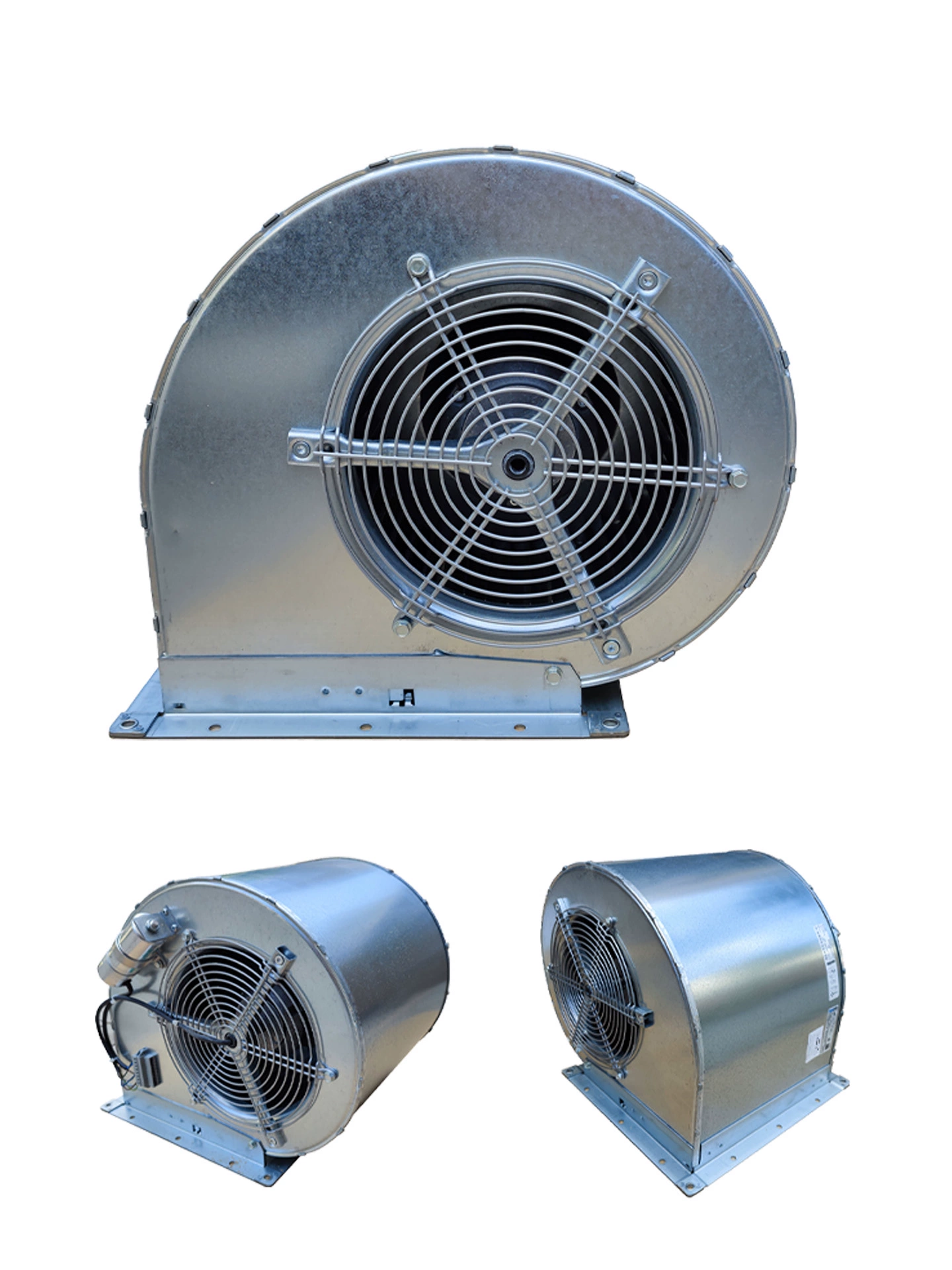

The ebmpapst D4E225-CC01-57 is a robust 225mm AC centrifugal fan designed for high-performance air movement in demanding industrial applications. Operating on 230VAC at both 50Hz and 60Hz, this fan has a current draw between 2.4A and 2.75A, with power consumption ranging from 540W to 625W. It achieves rotational speeds between 1210 RPM and 1300 RPM. Constructed with a galvanized sheet steel impeller and housing, and equipped with ball bearings, it ensures reliable operation and a long service life. With an IP22 degree of protection, it is ideal for applications like inverters, HVAC systems, and general industrial cooling. Its design includes an M4E074-LA motor.
D4E225-CC01-57 Fan Parameters
Model Number: D4E225-CC01-57
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Motor: M4E074-LA
Dimensions: 225 mm (diameter)
Nominal Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Current Draw: 2.4A / 2.75A
Power Consumption: 540W / 625W
Speed: 1210 RPM (50Hz) / 1300 RPM (60Hz)
Bearing Type: Ball Bearing
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Insulation Class: B
Degree of Protection: IP22
Weight: 12.67 kg
Application: Electric drives, inverters, ventilation, air conditioning, refrigeration, heating, electrical automation, rail transit, air purification, new energy.
