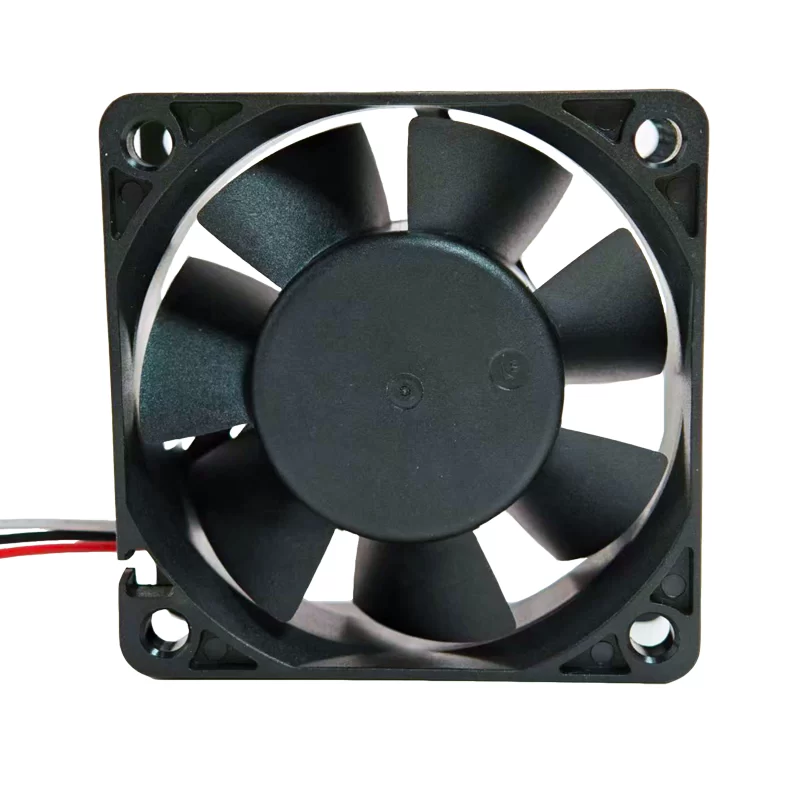

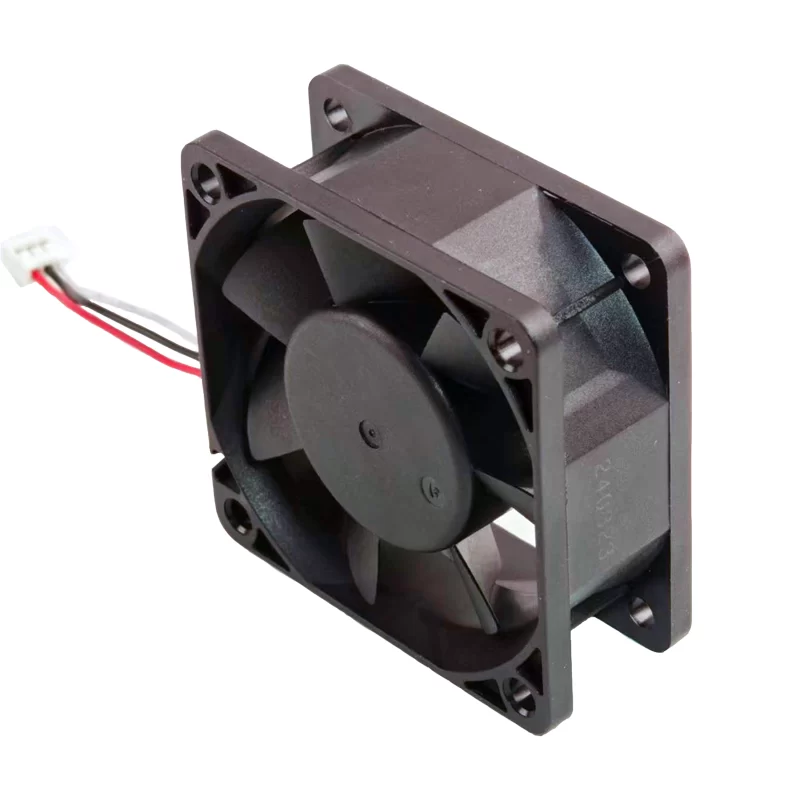

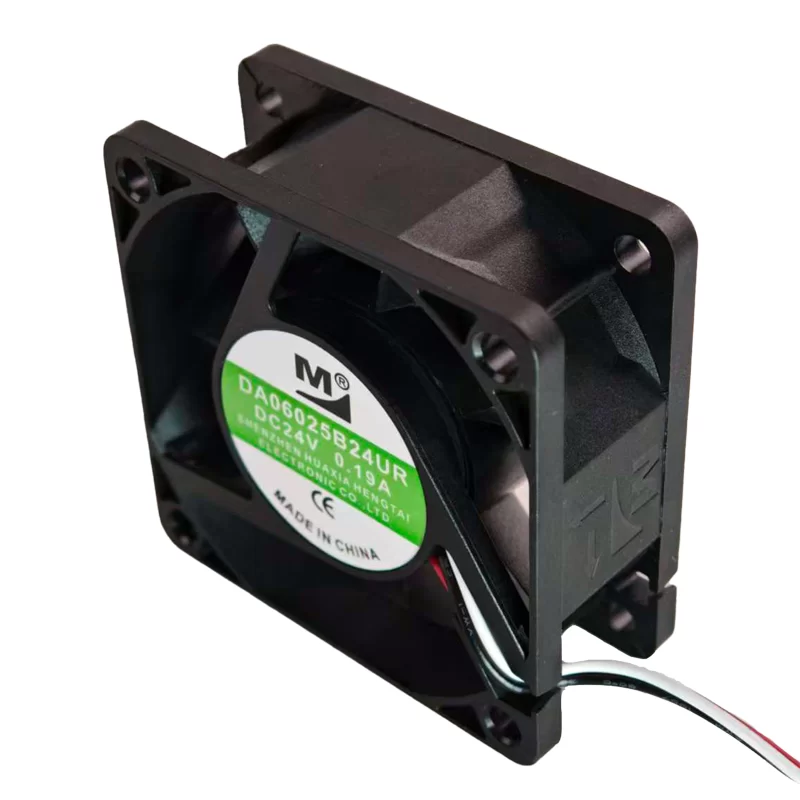

DA06025B24UR 24V 0.19A 60mm 6015 DC Axial Fan

Description

The Huaxia Hengtai DA06025B24UR is a high-efficiency 24 VDC industrial DC axial fan with dimensions of 60 x 60 x 25 mm, engineered for continuous thermal regulation in demanding environments. This unit utilizes a precision-engineered 7-blade impeller driven by a high-torque brushless DC motor, which maintains a powerful 4.80 W power profile for efficient air displacement. Its structural integrity is anchored by a reinforced thermoplastic PBT frame and a premium dual ball bearing system, ensuring exceptional mechanical longevity. The 3-wire configuration provides a dedicated Speed Sensor (FG) signal, offering a robust and modular electrical connection ideal for high-reliability systems such as industrial power rectifiers, network switches, and compact server enclosures requiring significant static pressure.

DA06025B24UR Fan Parameters
Manufacturer: Huaxia Hengtai
Model Number: DA06025B24UR
Industry Size Code: 6025
Type: DC Axial Fan
Bearing Type: Dual Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Starting Voltage: 14.0 VDC
Dimensions: 60 x 60 x 25 mm
Weight: 75 g

[Electrical Data]
Input Power: 4.80 W
Nominal Current: 0.20 A
Max. Current: 0.28 A
Nominal Speed: 6500 RPM (Tolerance ±10%)
Motor Design: Brushless DC Motor
Signal Output: FG (Frequency Generator/Tachometer)
Motor Protection: Auto Restart, Polarity Protection, Locked Rotor Protection
Insulation Class: Class A
Insulation Resistance: >10M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Termination: 3-Lead wires

[Performance & Acoustics]
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Sound Pressure Level: 45.5 dB(A) (Measured at 1 meter)
Number of Blades: 7
Direction of Rotation: Counter-clockwise (viewed toward impeller)
Airflow Direction: Intake over struts

[Materials & Construction]
Frame Material: Thermoplastic PBT (Black, UL94V-0)
Impeller Material: Thermoplastic PBT (Black, UL94V-0)
Installation Position: Any
Degree of Protection: IP54

[Reliability & Safety Standards]
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy (L10): 70,000 hours at 40 °C
Standard Compliance: UL 507, CSA C22.2, EN 60950-1
Approval Agency: UL, TUV, CE, RoHS

Application
The Huaxia Hengtai DA06025B24UR axial fan is used in industrial power supplies, telecommunications equipment racks, CNC controller cooling, network switches, and 24V DC motor drives.
