Description

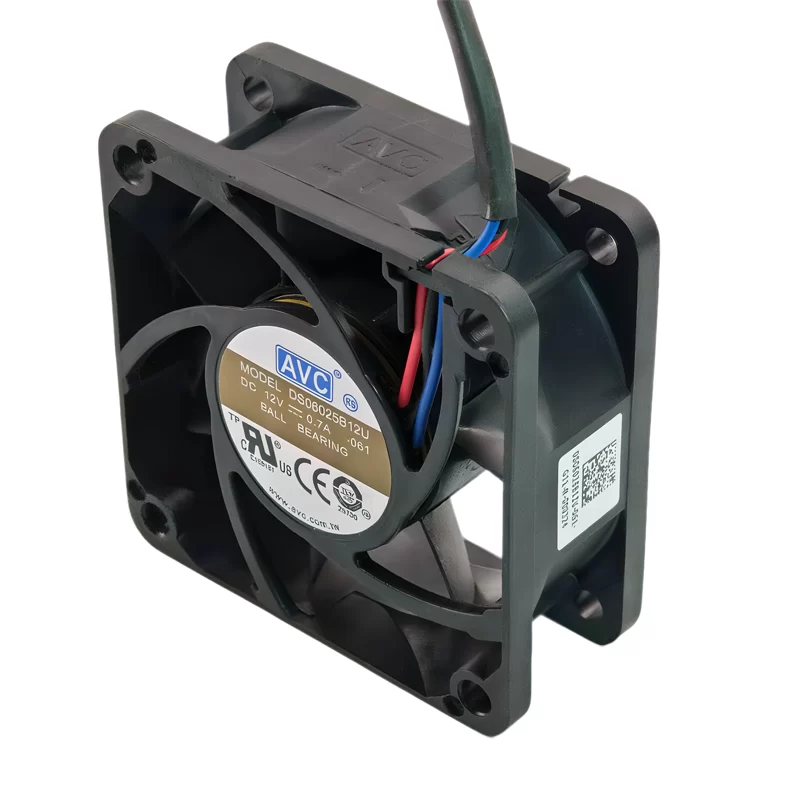

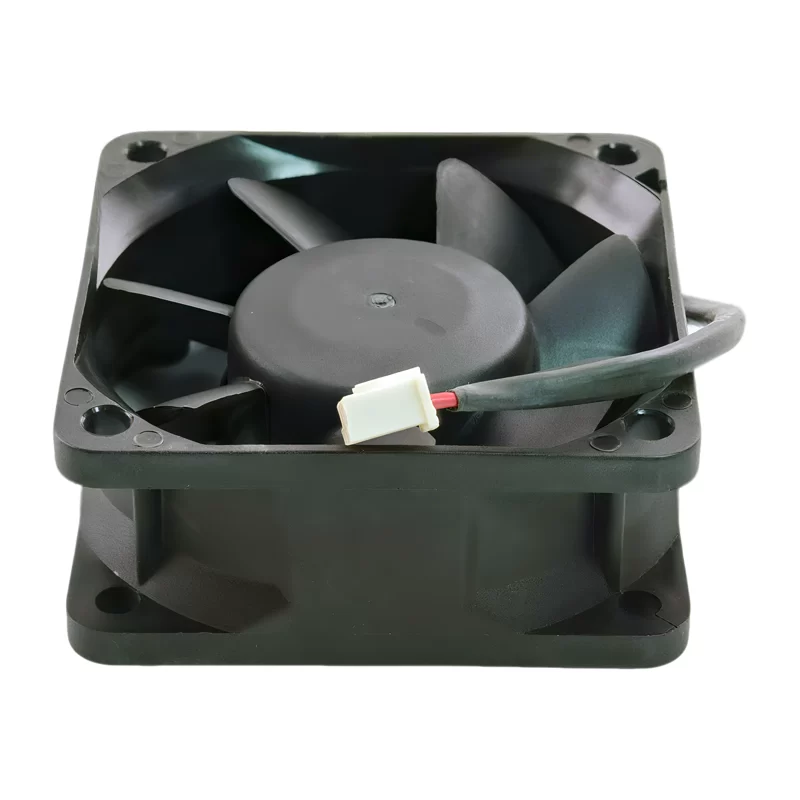

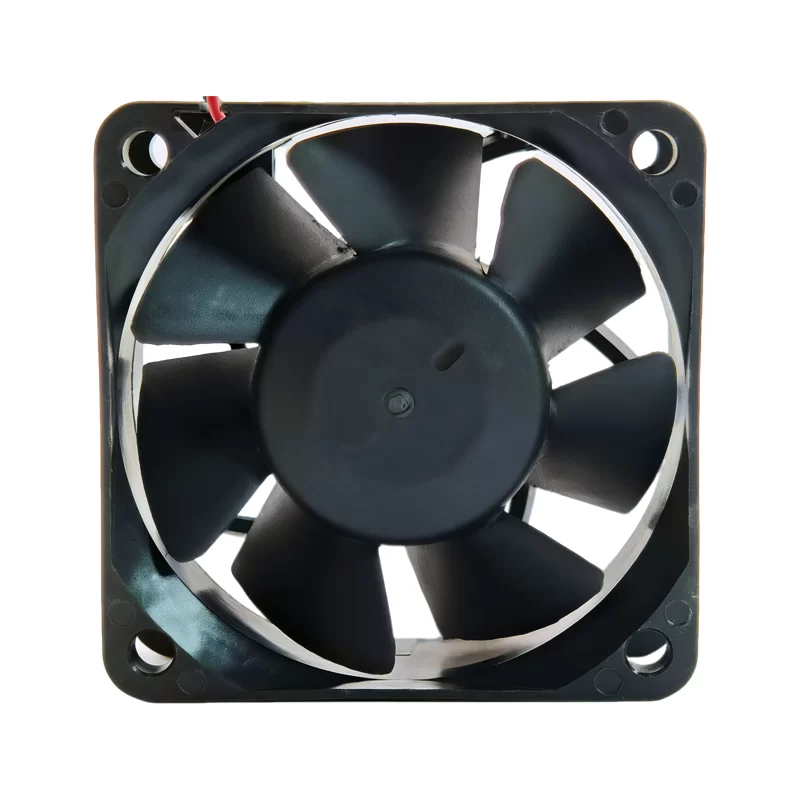

The AVC DB06025B12U is a standard 12VDC axial fan with dimensions of 60x60x25mm. It is designed for compact applications, providing 38.85 CFM (66.0 m³/h) of airflow and generating 12.54 mmH₂O (123 Pa) of static pressure. Operating at 6800 RPM, the fan consumes 8.40 W of power and is built with durable plastic materials. It uses ball bearings for a long and reliable lifespan. Its 3-wire termination provides a dedicated tachometer signal for monitoring fan speed. It is commonly used for cooling high-density electronics, servers, and telecommunications equipment.
DB06025B12U Fan Parameters
Manufacturer: AVC
Model: DB06025B12U
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12 VDC
Current Rating: 0.7 A
Power Consumption: 8.40 W
Airflow: 38.85 CFM (66.0 m³/h)
Static Pressure: 12.54 mmH₂O (123 Pa)
Speed: 6800 RPM
Noise Level: 45.9 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG signal)
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C ~ 70 °C
Weight: 50 g
Application: This AVC DC axial fan is suitable for cooling high-density electronics, servers, and telecommunications equipment.
