Description

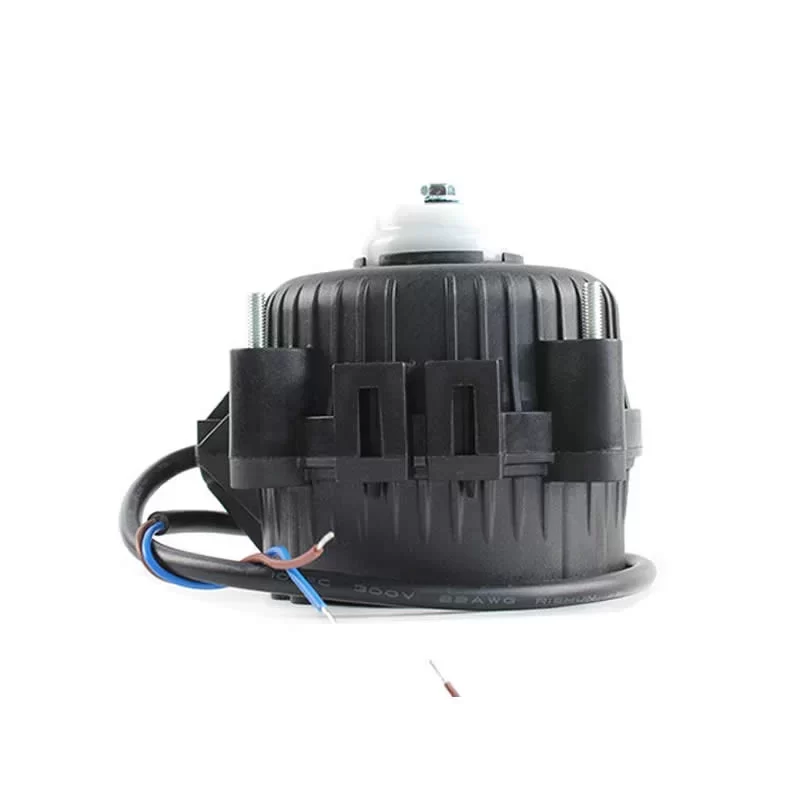

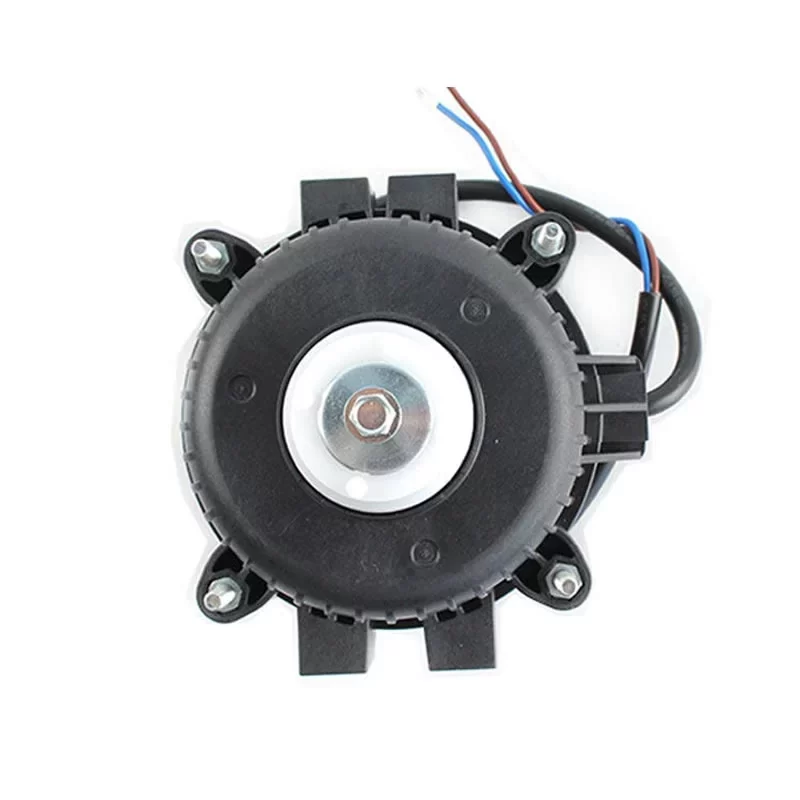

The ebmpapst 8317080724 DE036BRKXX0S is a high-efficiency GreenTech EC motor fan designed as an energy-saving 1:1 replacement for traditional 5W-output shaded-pole (Q-type) motors. Featuring a universal 100-240V input and a robust IP65 protection rating, this fan is engineered for the rigorous demands of commercial refrigeration and industrial cooling. By integrating advanced EC electronics within the compact “square motor” form factor, it delivers a stable speed of up to 1550 RPM while significantly reducing power consumption compared to standard induction motors. Its maintenance-free ball bearing system and moisture-resistant construction ensure reliable performance in continuous-duty applications.

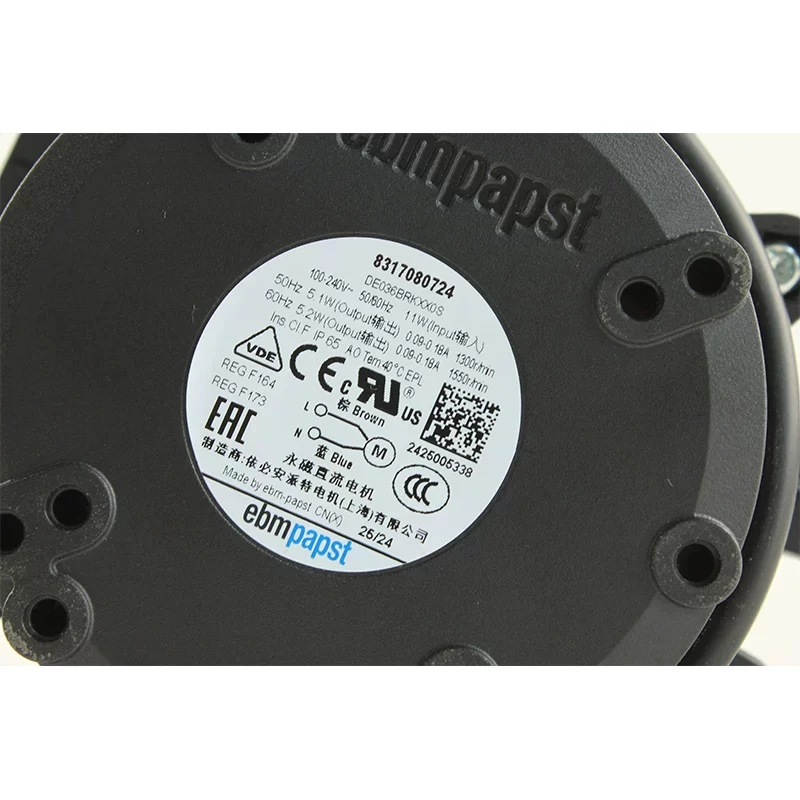

8317080724 Fan Parameters
Manufacturer: ebmpapst
Model Number: DE036BRKXX0S
Part Number: 8317080724
Type: EC axial fan (Q-motor replacement)
Phase: 1~
Nominal Voltage: 100 – 240 V
Nominal Voltage Range: 85 – 264 VAC
Frequency: 50/60 Hz
Weight: 0.5 kg
[Electrical Data]
Input Power: 11 W
Power Output (50 Hz): 5.1 W
Power Output (60 Hz): 5.2 W
Nominal Speed (50 Hz): 1300 RPM
Nominal Speed (60 Hz): 1550 RPM
Current Draw: 0.09 – 0.18 A
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: B
Termination: 2 lead wires (flexible cable)
[Performance & Acoustics]
Max. Air Flow: 223.7 CFM (380.0 m³/h / 6.33 m³/min)
Max. Static Pressure: 4.08 mmH₂O (40.0 Pa / 0.16 inH₂O)
Sound Pressure Level: 42 dB(A)
Direction of Rotation: Counterclockwise (viewed toward shaft end)
Airflow Direction: Varies by attached impeller (Exhaust/Intake)
[Materials & Construction]
Housing Material: Die-cast aluminum
Impeller Material: Glass-fiber reinforced plastic or Aluminum
Motor Bearing: Ball Bearing
Installation Position: Any
Degree of Protection: IP65
[Reliability & Safety Standards]
Min. Ambient Temperature: -30 °C
Max. Ambient Temperature: 50 °C
Min. Storage Temperature: -40 °C
Max. Storage Temperature: 80 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: VDE, UL, CSA, CCC
Application
The ebmpapst 8317080724 DE036BRKXX0S EC fan is used in supermarket refrigerated display cases, bottle coolers, commercial freezers, cold storage evaporators, and condensing units where moisture resistance and energy efficiency are critical.
