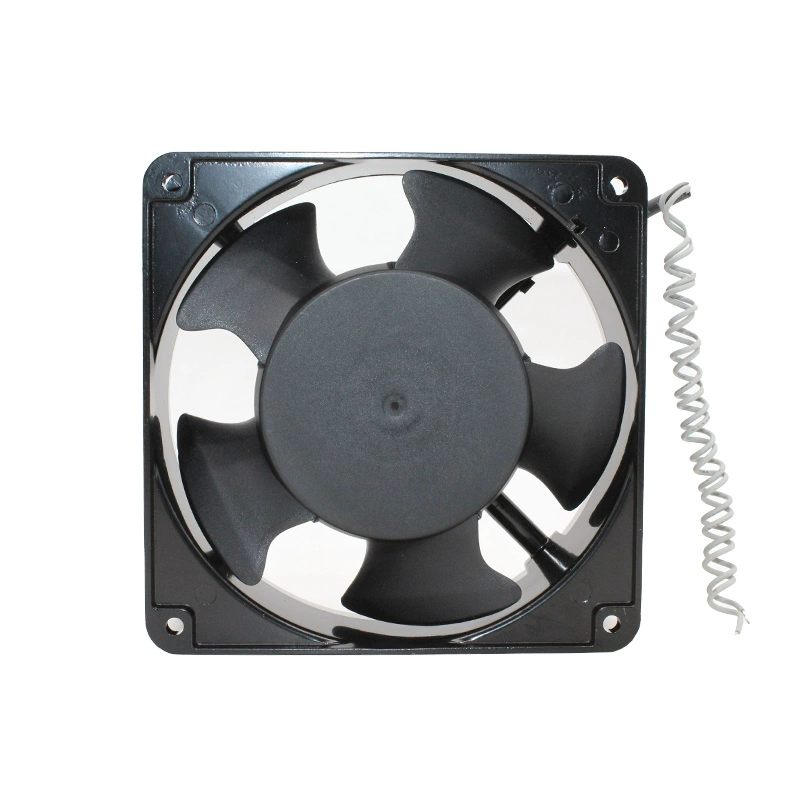

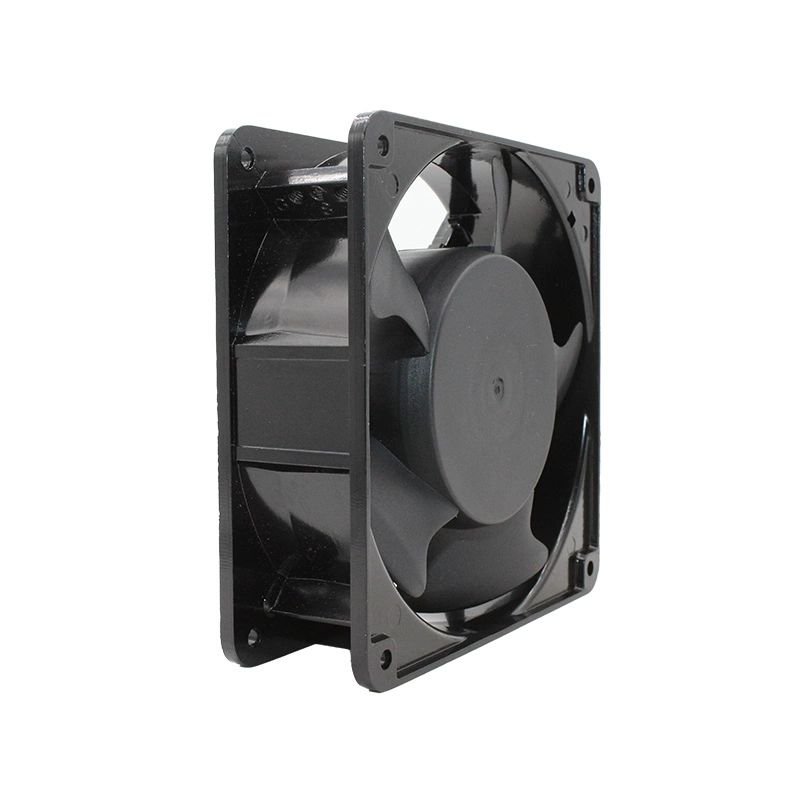

DP200A 2123XBL.GN SUNON AC Axial Flow Fan

Description

DP200A 2123XBL.GN SUNON 12038 220V built-in fan 2123XSL P/N2123HSL
Model Number: DP200A 2123XBL.GN
Manufacturer: SUNON Fans
Series: DP200A
Fan Type: AC Axial Flow Fan
Dimensions L x H x W: 120 mm x 120 mm x 38 mm
Rated Voltage: 220-240 VAC
Operating Voltage Range: 185 – 245 VAC
Frequency: 50/60 Hz
Phase: Single-phase
Rated Current:
0.14 A (at 50 Hz)
0.12 A (at 60 Hz)
Input Power:
22 W (at 50 Hz)
21 W (at 60 Hz)
Wiring: 2 Wire Leads (typically)
Bearing Type: Ball Bearing
Rotational Speed RPM:
2850 RPM (at 50 Hz)
3150 RPM (at 60 Hz)
Maximum Airflow:
97.0 CFM (at 50 Hz)
117.0 CFM (at 60 Hz)
Maximum Static Pressure:
0.34 in H2O (at 50 Hz)
0.39 in H2O (at 60 Hz)
Noise Level:
45 dB (at 50 Hz)
50 dB (at 60 Hz)
Frame Material: Aluminum Alloy
Impeller Blade Material: Polybutylene Terephthalate (PBT)
Motor Protection: Impedance Protected, Automatic Restart Capability
Insulation Resistance: 500 Megohms minimum at 500 VDC
Dielectric Strength: 1800 VAC for one second
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +70°C
Expected Life: 50,000 hours
Safety Approvals: CE, cURus, TUV
Weight: 550 g (approximately 1.213 lbs)
The SUNON DP200A 2123XBL.GN is a robust 120x120x38mm AC axial fan designed for reliable cooling in industrial and electronic applications. Operating on 220-240 VAC at 50/60Hz, it consumes 21-22W of power. This fan features durable ball bearings and an aluminum alloy frame, delivering substantial airflow of 97 CFM to 117 CFM at speeds ranging from 2850 RPM to 3150 RPM. With a noise level of 45-50 dB, it provides effective heat dissipation. Its impedance protection and auto-restart capability enhance reliability, making it an excellent choice for control cabinets, power supplies, servers, and other equipment requiring continuous AC cooling.

Card plug-in DP200A 2123XBL.GN

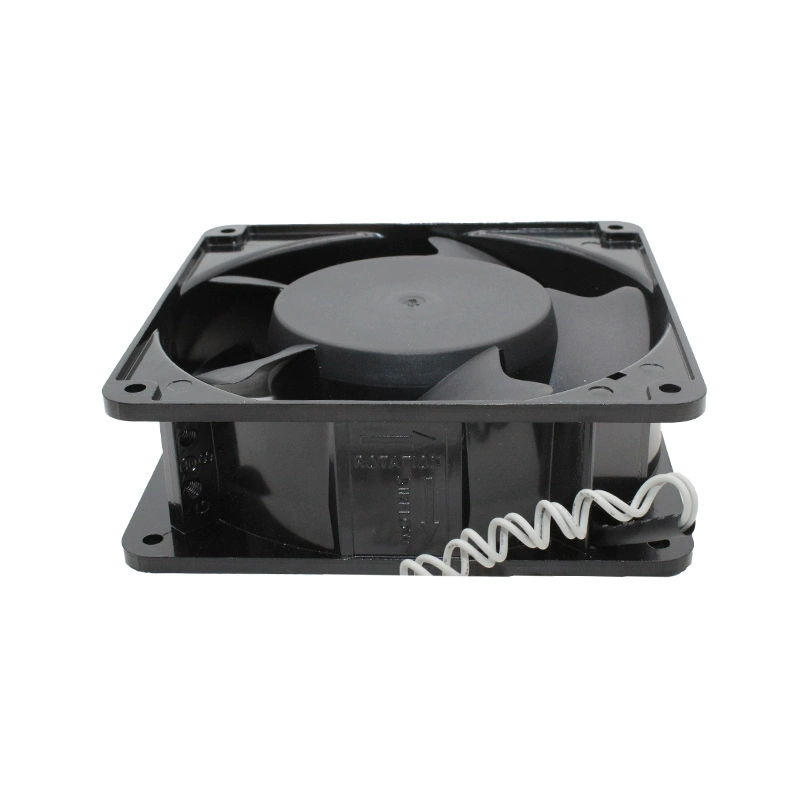

Lead type DP200A 2123XBL.GN
DP200A P/N2123XSL.GN
DP200A P/N2123HSL.GN
