DP200A P/N 2123HSL SUNON 220-240V AC axial fan

Description

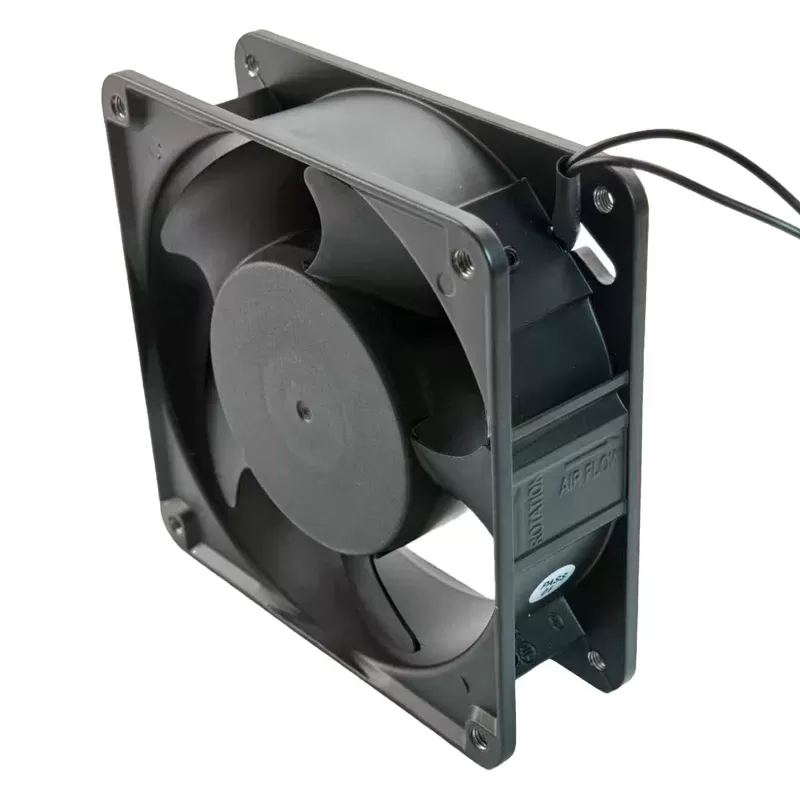

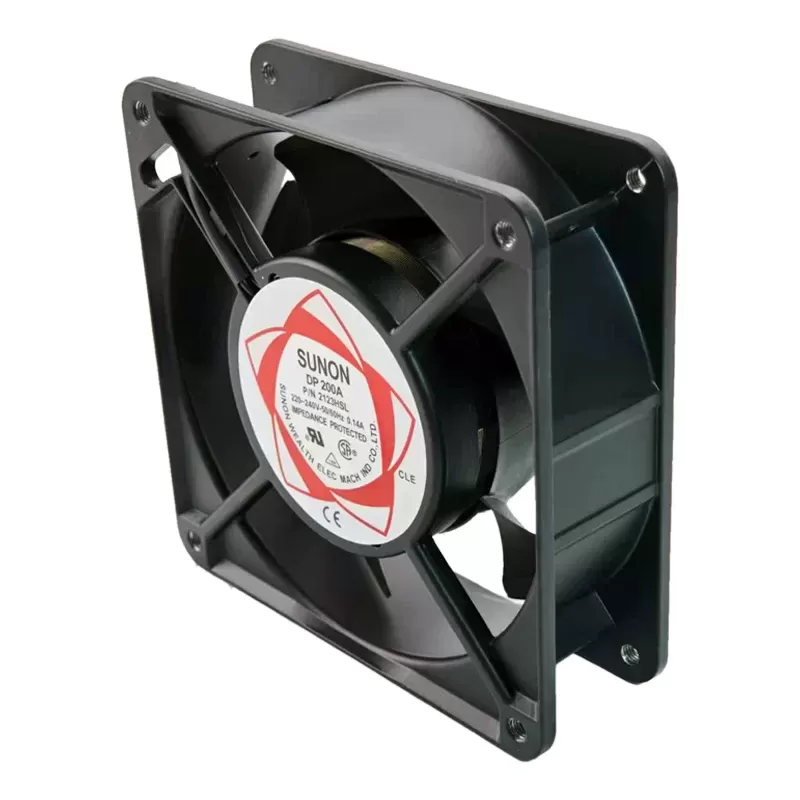

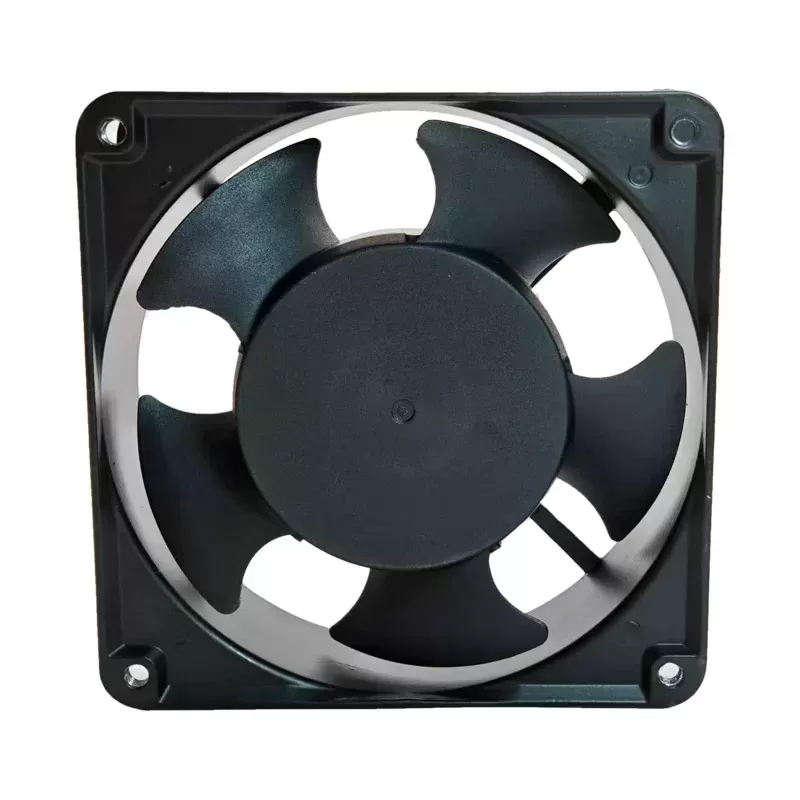

The SUNON DP200A P/N 2123HSL is an AC axial fan measuring 120x120x38mm. It operates on 220-240 VAC at 50/60 Hz frequencies, drawing 0.14 A of current, with a power consumption typically ranging from 21 W to 22 W. This fan achieves a speed between 2850 RPM and 3150 RPM, providing an airflow of 2.6 to 3.0 m³/min (approximately 92 to 106 CFM). The noise level is typically between 42 dB(A) and 46 dB(A). It features sleeve bearings, which are generally quieter initially but may have a shorter lifespan compared to ball bearings. The frame is often made of die-cast aluminum alloy, and the blades are made from PBT + glass fiber flame retardant material. It connects via 2-wire Leads. This fan is widely used for cooling in various electronic equipment, industrial machinery, and control cabinets.

DP200A P/N 2123HSL Fan Parameters
Model: DP200A P/N 2123HSL
Manufacturer: SUNON
Type: AC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.14 A
Power Consumption: 21 W – 22 W
Speed: 2850-3150 RPM
Airflow: 2.6-3.0 m³/min (92-106 CFM)
Noise Level: 42-46 dB(A)
Bearing Type: Sleeve Bearing
Termination: 2-wire Leads
Weight: 550 g
Material Frame: Die-cast aluminum alloy
Material Blade: Plastic (PBT + 30% Glass + VO grade flame retardant)
Operating Temperature: -20 to 50°C (for sleeve bearing models)
Application: Electronic equipment cooling, industrial machinery, control cabinets.
