Description

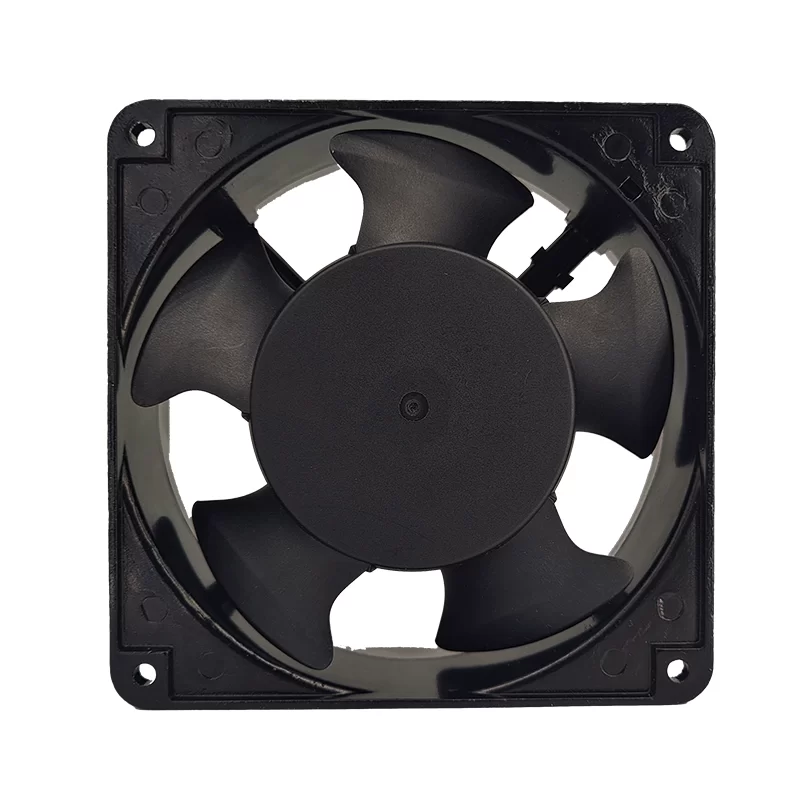

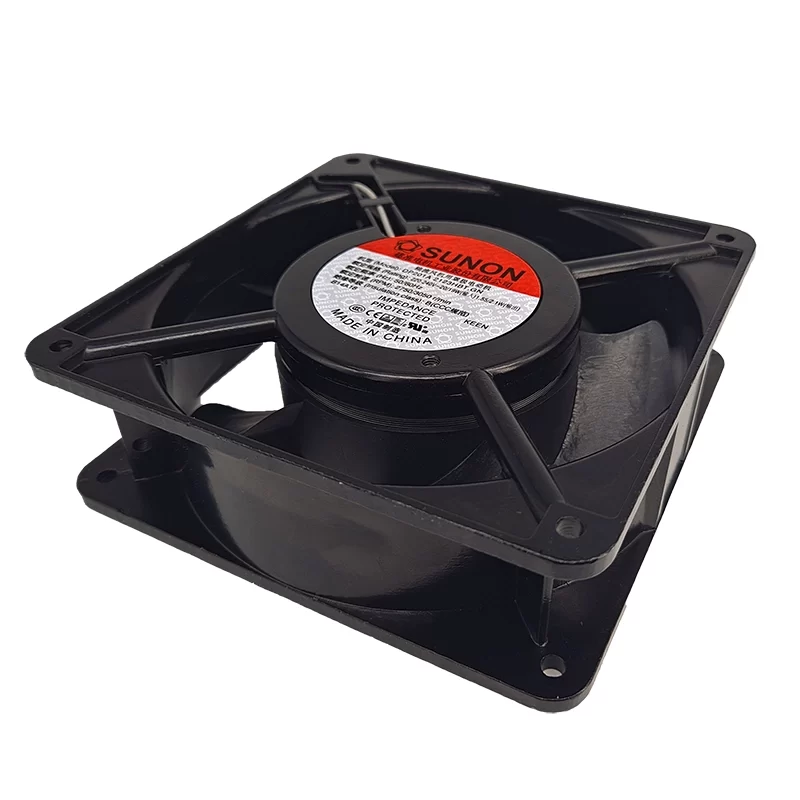

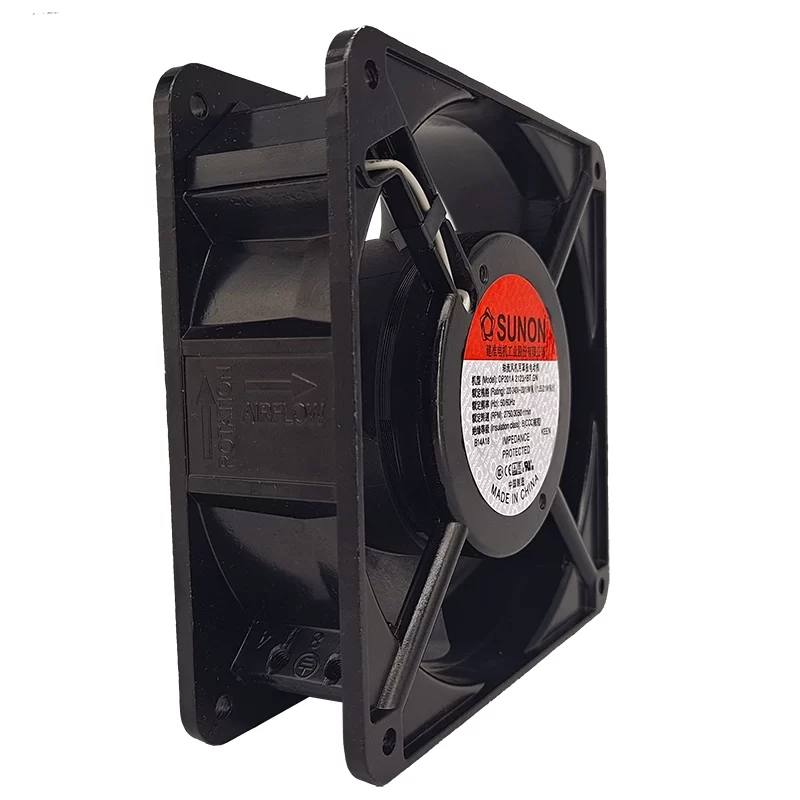

The SUNON DP201A2123HBT.GN is a robust AC axial fan measuring 120x120x38mm. It operates on 220-240 VAC at 50/60 Hz. This fan features a reliable ball bearing system for long-term performance and connects via 2 terminals. The frame is made of die-cast aluminum, and the impeller is thermoplastic (PBT) with a UL94V-0 flammability rating. It incorporates an impedance protected shaded-pole motor.
For 50 Hz operation, it typically draws 0.11 A with a power consumption of 19 W, achieving a speed of 2750 RPM, an airflow of 87 CFM (approximately 148 m³/h), and a noise level of 45 dB(A).
For 60 Hz operation, it typically draws 0.125 A with a power consumption of 20 W, achieving a speed of 3050 RPM, an airflow of 107 CFM (approximately 182 m³/h), and a noise level of 50 dB(A).
It is commonly used in various electronic equipment, power supplies, and general cooling applications where efficient and durable airflow is required.
DP201A2123HBT.GN Fan Parameters
Model: DP201A2123HBT.GN
Manufacturer: SUNON
Type: AC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 220-240 VAC
Operating Voltage Range: 185-245 VAC
Frequency: 50/60 Hz
Rated Current: 0.11 A (at 50 Hz) / 0.125 A (at 60 Hz)
Power Consumption: 19 W (at 50 Hz) / 20 W (at 60 Hz)
Speed: 2750 RPM (at 50 Hz) / 3050 RPM (at 60 Hz)
Speed Tolerance: ±10% (on rated speed)
Airflow: 87 CFM (148 m³/h) (at 50 Hz) / 107 CFM (182 m³/h) (at 60 Hz)
Static Pressure: 0.26 inH2O (at 50 Hz) / 0.32 inH2O (at 60 Hz)
Noise Level: 45 dB(A) (at 50 Hz) / 50 dB(A) (at 60 Hz)
Bearing Type: Ball Bearing
Termination: 2 Terminals (2.8×0.3mm connectors)
Frame Material: Die-cast Aluminum
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Resistance: 500 MΩ minimum (at 500 VDC)
Dielectric Strength: 1800 VAC for 1 second
Motor Protection: Impedance Protected
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Weight: 0.55 kg (550 g)
Application: Electronic equipment, power supplies, general cooling.
