Description

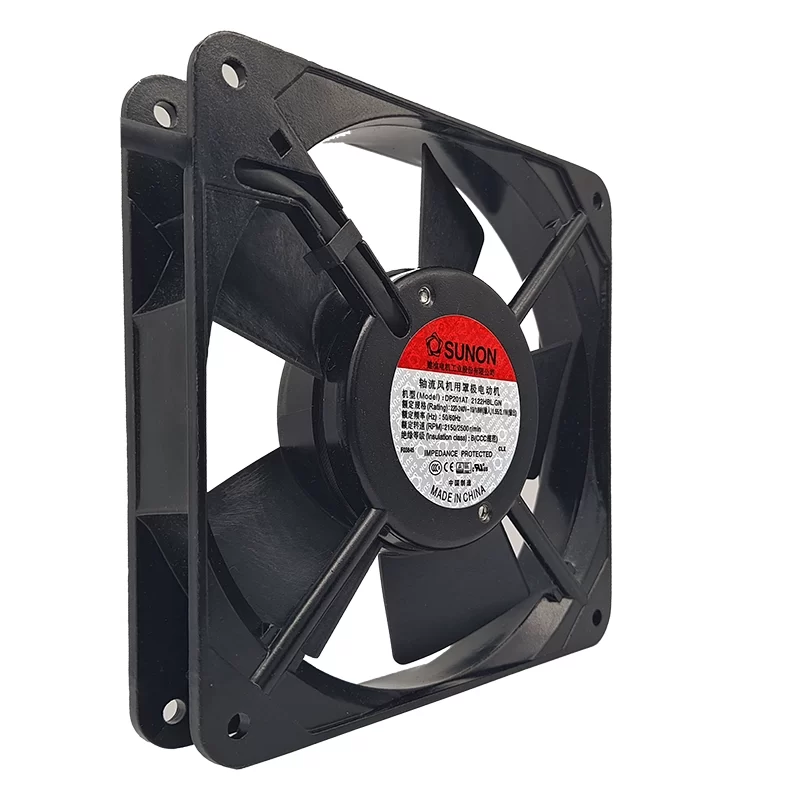

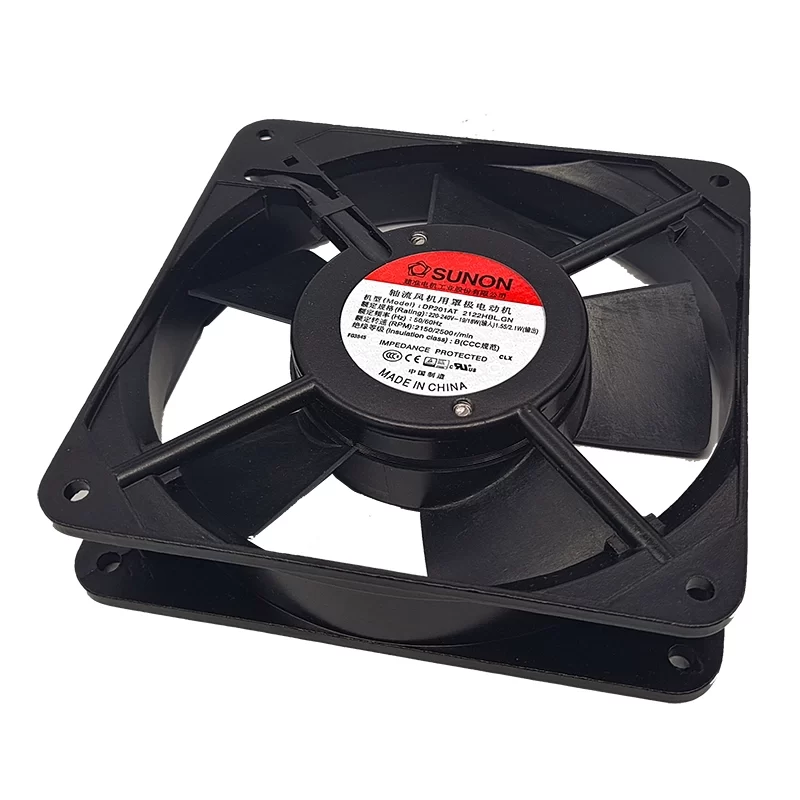

The SUNON DP201AT 2122HBL.GN is an AC axial fan measuring 120x120x25mm. It operates on 220-240 VAC at 50/60 Hz. This fan features a reliable ball bearing system for long-term performance and connects via 2 wire leads. The frame is made of die-cast aluminum, and the impeller is thermoplastic (PBT) with a UL94V-0 flammability rating. It incorporates a shaded-pole motor with impedance protection. For 50 Hz operation, it typically draws 100 mA with a power consumption of 19 W, achieving a speed of 2150 RPM, an airflow of 66 CFM (approximately 112 m³/h), and a noise level of 44 dB(A). For 60 Hz operation, it typically draws 90 mA with a power consumption of 18 W, achieving a speed of 2500 RPM, an airflow of 80 CFM (approximately 136 m³/h), and a noise level of 48 dB(A). This fan is commonly used in various industrial equipment, power supplies, and general cooling applications requiring efficient and durable airflow.
DP201AT 2122HBL.GN Fan Parameters
Model: DP201AT 2122HBL.GN
Manufacturer: SUNON
Type: AC Axial Fan
Dimensions: 120x120x25 mm
Rated Voltage: 220-240 VAC
Operating Voltage Range: 185 to 245 VAC
Frequency: 50/60 Hz
Rated Current: 100 mA (at 50 Hz) / 90 mA (at 60 Hz)
Current and Power Consumption Tolerance: ±15%
Power Consumption: 19 W (at 50 Hz) / 18 W (at 60 Hz)
Speed: 2150 RPM (at 50 Hz) / 2500 RPM (at 60 Hz)
Speed Tolerance: ±10%
Airflow: 66 CFM (112 m³/h) (at 50 Hz) / 80 CFM (136 m³/h) (at 60 Hz)
Static Pressure: 0.14 inH2O (at 50 Hz) / 0.17 inH2O (at 60 Hz)
Noise Level: 44 dB(A) (at 50 Hz) / 48 dB(A) (at 60 Hz)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (typically 300mm or 320mm length, 24AWG)
Frame Material: Die-cast Aluminum
Impeller Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Resistance: 500 MΩ minimum (at 500 VDC)
Dielectric Strength: 1500 VAC for 1 second
Motor Protection: Impedance Protected
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 50,000 hours (at 25°C)
Weight: 295 g
Application: Industrial equipment, power supplies, general cooling.
