DP300A P/N3123XBL SUNON 380V AC Axial Fan

Description

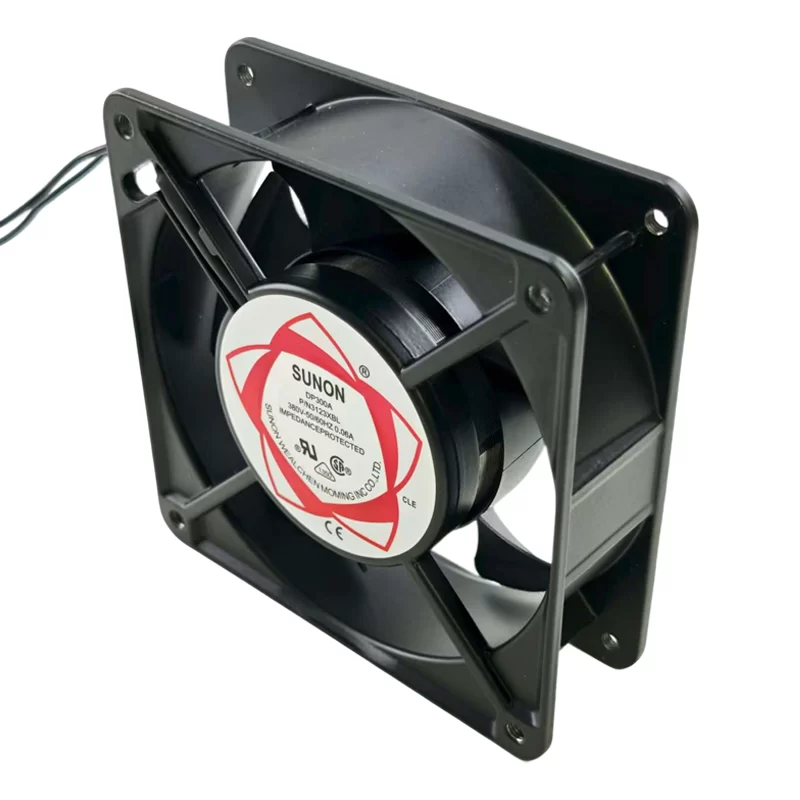

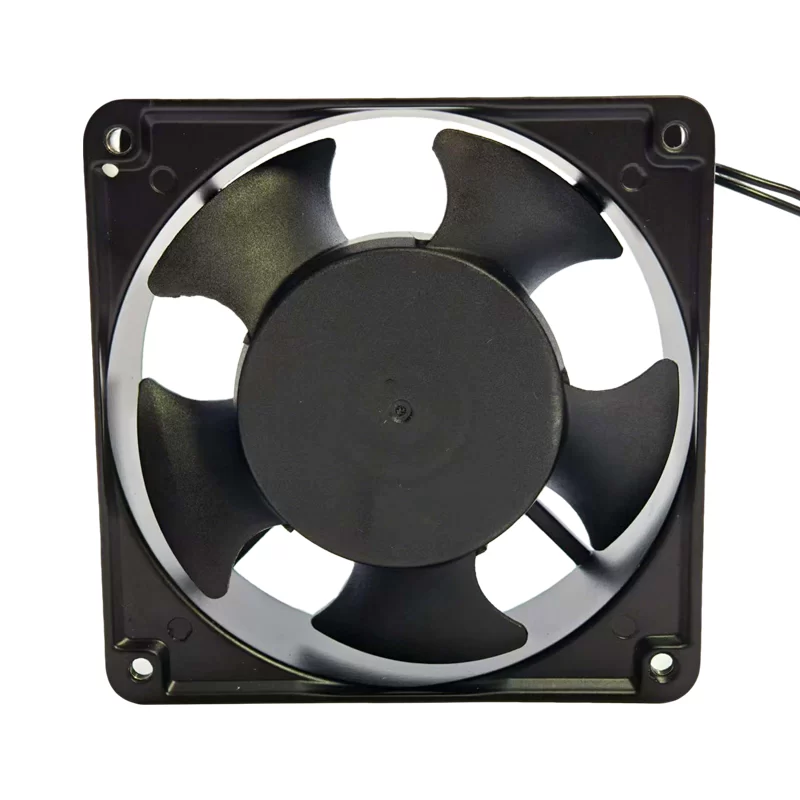

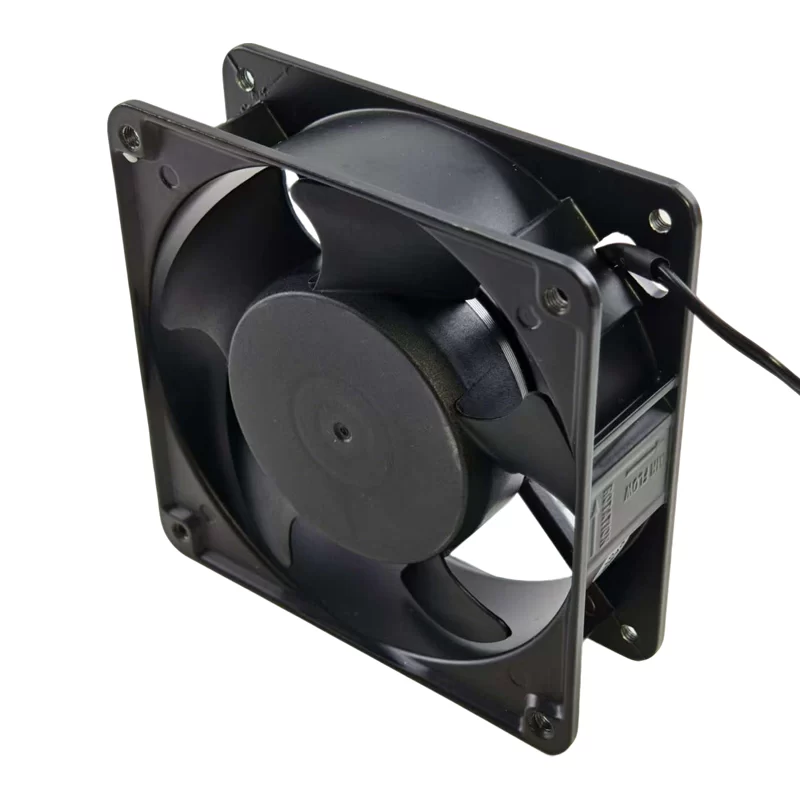

The SUNON DP300A P/N3123XBL is a multi-frequency AC axial fan with dimensions of 120 x 120 x 38 mm. It is designed for applications requiring high-voltage operation. Operating on 380V, the fan adjusts its performance based on the input frequency, providing 91.1 CFM (154.8 m³/h) of airflow at 50 Hz and 111.2 CFM (189 m³/h) at 60 Hz. It is built with durable plastic materials and connects via two wire leads.

DP300A P/N3123XBL Fan Parameters
Manufacturer: SUNON
Model: DP300A P/N3123XBL
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 380V
Rated Frequency: 50/60 Hz
Current Rating: 0.06 A
Power Consumption: 23/21 W
Airflow: 91.1/111.2 CFM (154.8/189 m³/h)
Speed: 2600/2900 RPM
Noise Level: 44/48 dB(A)
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Weight: 550 g
Application: The DP300A P/N3123XBL is suitable for cooling in industrial equipment, control cabinets, and other systems requiring a 380V power supply.
