DV4114N ebmpapst 24V DC Axial Fan

Description

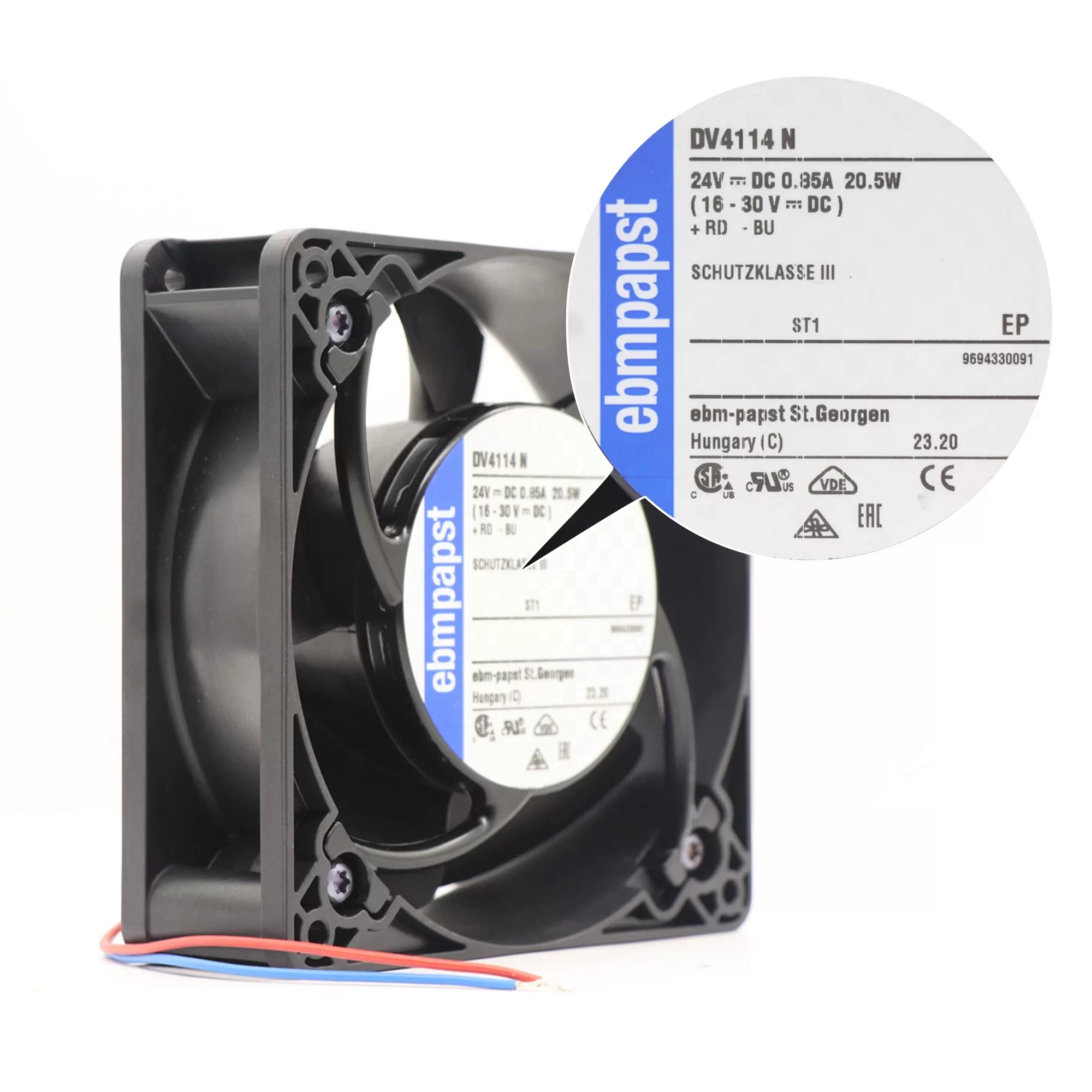

DV4114N is an ebmpapst 24V DC Axial Fan measuring 119 x 119 x 38 mm. It operates within a nominal voltage range of 16 to 30VDC, with a power consumption of 20.5W and a calculated rated current of 0.85A. This fan reaches a speed of 6000RPM, delivers an airflow of 280m³/h, and has a sound pressure level of 61dB(A). It features ball bearings, protection against reverse polarity and blocked rotor, and has a service life of 70000 hours at 40°C. It comes with AWG 22, TR 64 leads and is suitable for various industrial cooling applications.

DV4114N Fan Parameters
Model: DV4114N
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Nominal Voltage: 24 VDC
Nominal Voltage Range: 16 .. 30 VDC
Rated Current: 0.85 A
Power Consumption: 20.5 W
Speed: 6000 min⁻¹
Airflow: 280 m³/h
Static Pressure: 39 Pa
Noise Level: 61 dB(A)
Bearing Type: Ball bearing
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Weight: 0.375 kg
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 65 °C
Service Life L10 at 40 °C: 70000 h
Service Life L10 at Maximum Temperature: 40000 h
Cable: Leads AWG 22, TR 64, stripped and tin-plated
Termination: Wire leads
Motor Protection: Protection against reverse polarity and blocked rotor
Locked-Rotor Protection: With electronic locked-rotor and overload protection
Approval: VDE, CSA, UL, CE
Option: Speed signal
Application: Suitable for industrial electronics, control cabinets, telecommunication equipment, and other applications requiring reliable DC axial cooling.
