DV4600-492 ebmpapst 115V AC Axial Fan

Description

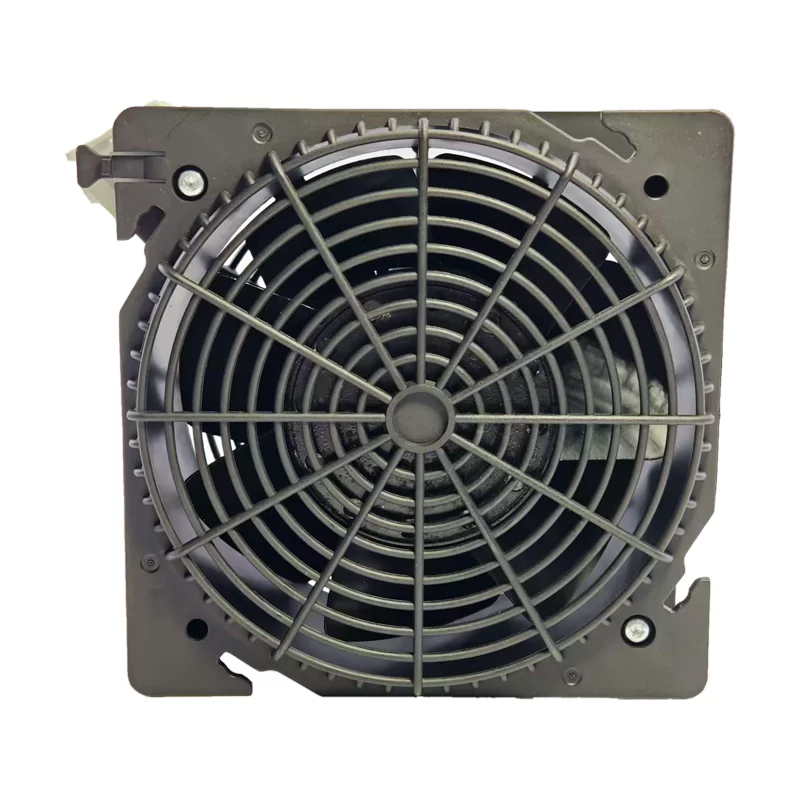

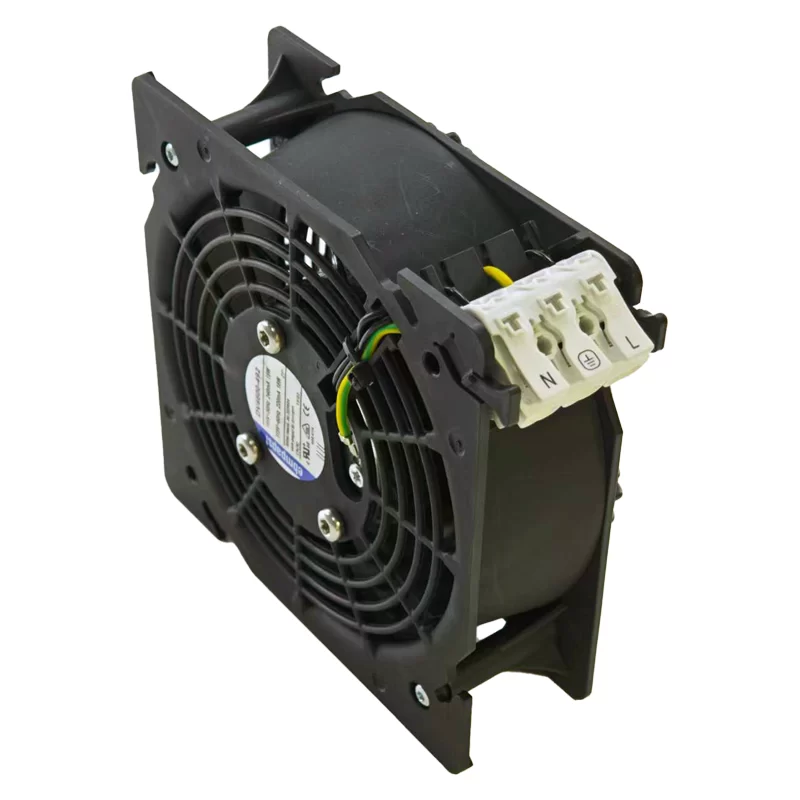

The ebmpapst DV4600-492 is an AC axial fan measuring 120 x 120 x 38 mm and weighing 0.4 kg. It operates on 115V AC with a dual frequency of 50/60 Hz. The fan draws 0.24/0.22 A of current and consumes 19/18 W of power, running at speeds of 2650/3100 RPM. It uses ball bearings for enhanced durability and features three-wire leads. This fan is a reliable choice for cabinet cooling.

DV4600-492 Fan Parameters
Manufacturer: ebmpapst
Model: DV4600-492
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 115V AC
Frequency: 50/60 Hz
Current Rating: 0.24/0.22 A
Power Consumption: 19/18 W
Speed: 2650/3100 RPM
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Housing Material: Plastic
Weight: 0.4 kg
Application: The DV4600-492 is designed for cabinet cooling and other applications requiring reliable airflow from an AC axial fan. Its robust construction and dual-speed capability allow for flexible thermal management in industrial and electronic enclosures.
