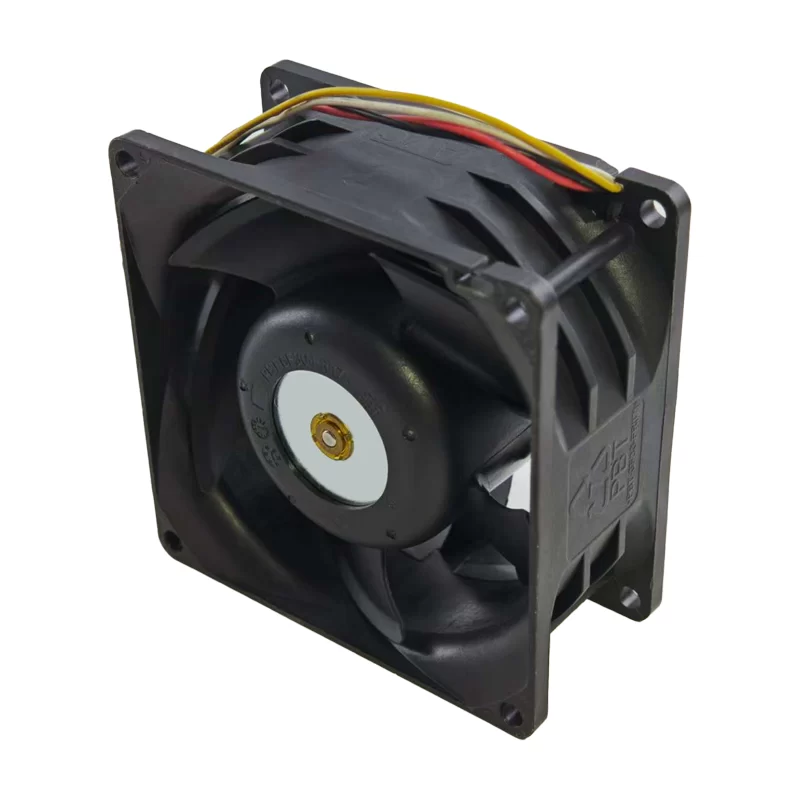

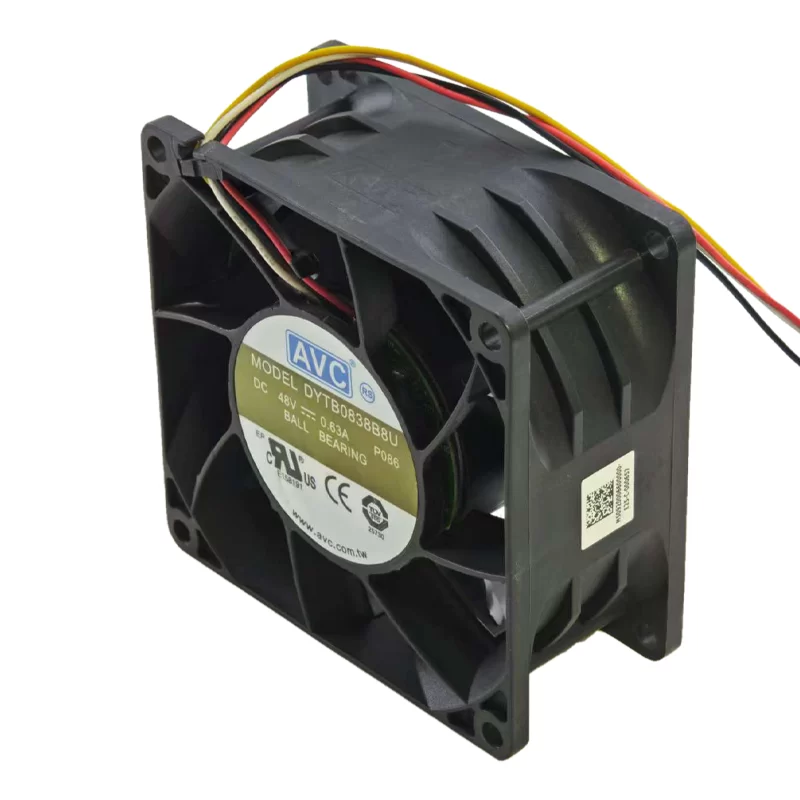

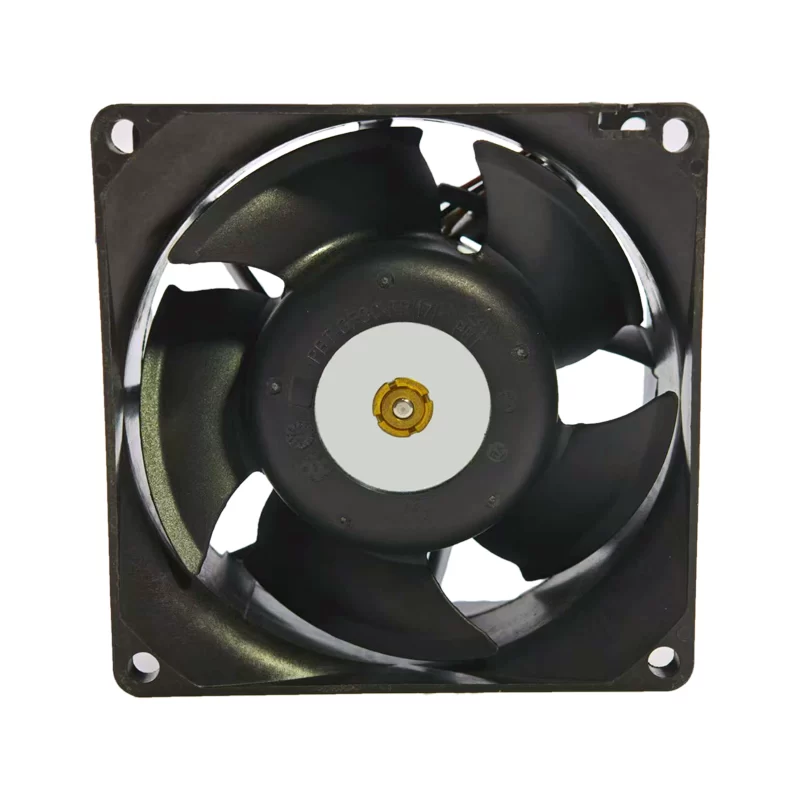

DYTB0838B8U AVC 48V DC Axial Fan

Description

The AVC DYTB0838B8U is a high-power DC axial fan with dimensions of 80 x 80 x 38 mm. It operates on 48V DC, drawing 0.63 A of current and consuming 30.24 W of power. This fan is constructed with a plastic housing and impeller, and features four-wire leads for advanced control capabilities, including PWM speed control and a tachometer signal output. It uses ball bearings for enhanced durability.

DYTB0838B8U Fan Parameters
Manufacturer: AVC
Model: DYTB0838B8U
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 48V DC
Current Rating: 0.63 A
Power Consumption: 30.24 W
Bearing Type: Ball Bearing
Termination: Four Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Application: The DYTB0838B8U is a high-performance fan designed for demanding thermal management tasks. Its 48V DC operation and four-wire control make it suitable for a variety of applications, including server cooling, power supply units, and industrial automation equipment where precise speed control and fan status monitoring are required.
