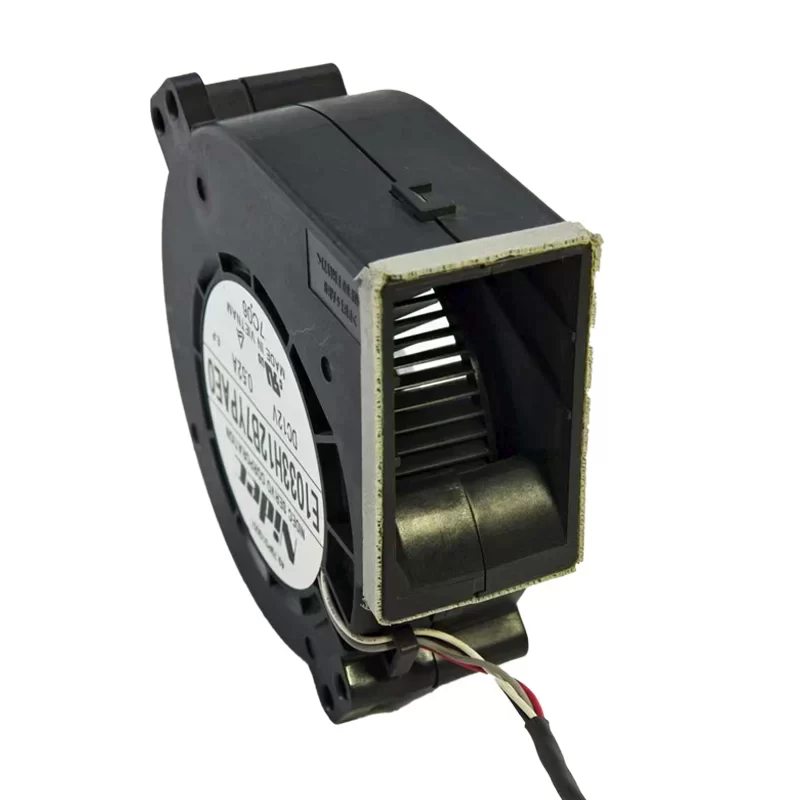

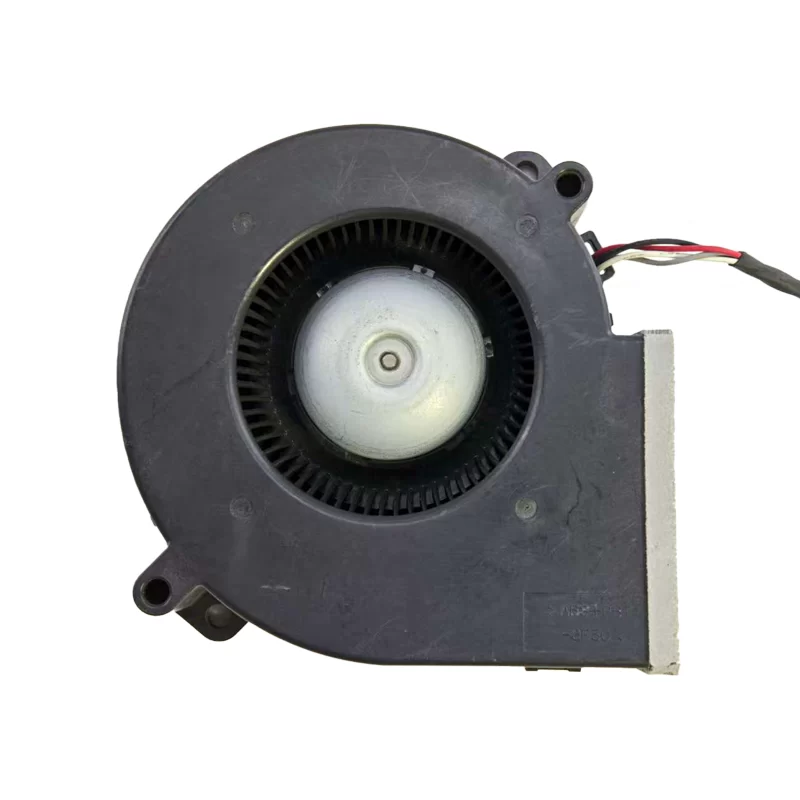

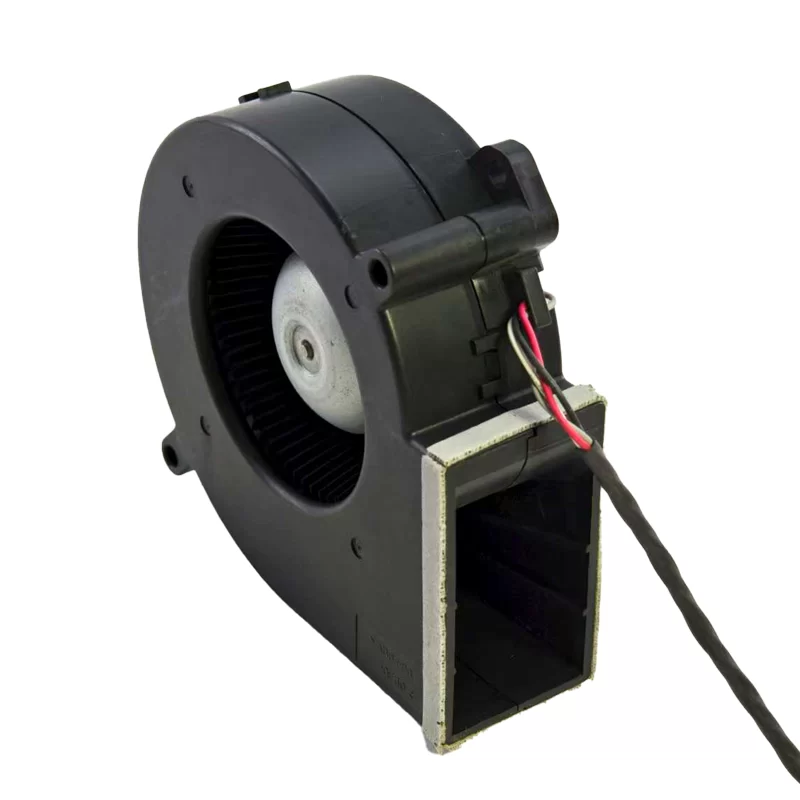

E1033H12B7YPAE0 Nidec 12V DC Blower

Description

The Nidec E1033H12B7YPAE0 is a DC blower with dimensions of 97 x 97 x 33 mm. It operates on 12V DC, drawing 0.52 A of current and consuming 6.24 W of power. This blower runs at a speed of 4700 RPM, delivering an airflow of 78.8 CFM (133.8 m³/h) with a high static pressure of 0.35 inch H₂O (87 Pa), making it ideal for systems with restricted airflow. It produces a noise level of 43 dB(A). The fan uses ball bearings and is terminated with four-wire leads, typically for PWM speed control. It operates within a temperature range of -10 °C to 70 °C.

E1033H12B7YPAE0 Fan Parameters
Manufacturer: Nidec Servo Corporation
Model: E1033H12B7YPAE0
Fan Type: DC Blower
Dimensions: 97 x 97 x 33 mm
Rated Voltage: 12V DC
Current Rating: 0.52 A
Power Consumption: 6.24 W
Airflow: 78.8 CFM (133.8 m³/h)
Static Pressure: 0.35 inch H₂O (87 Pa)
Speed: 4700 RPM
Noise Level: 43 dB(A)
Bearing Type: Ball bearing
Termination: 4-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C

Application
The E1033H12B7YPAE0 fan is suitable for applications requiring robust airflow and high static pressure in a compact size, such as in servers, network equipment, industrial controls, and high-performance cooling systems.
