Description

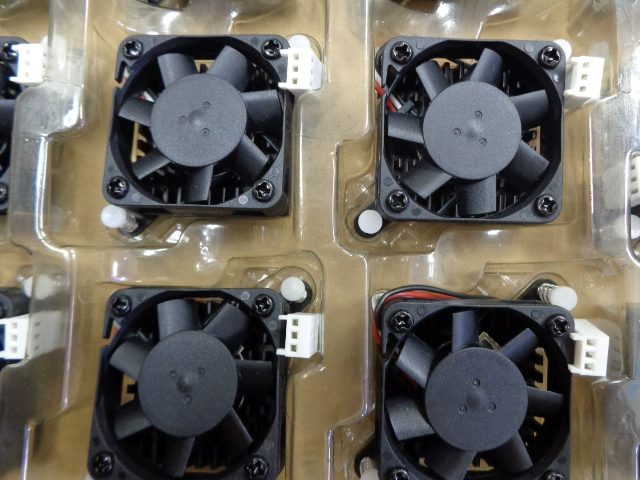

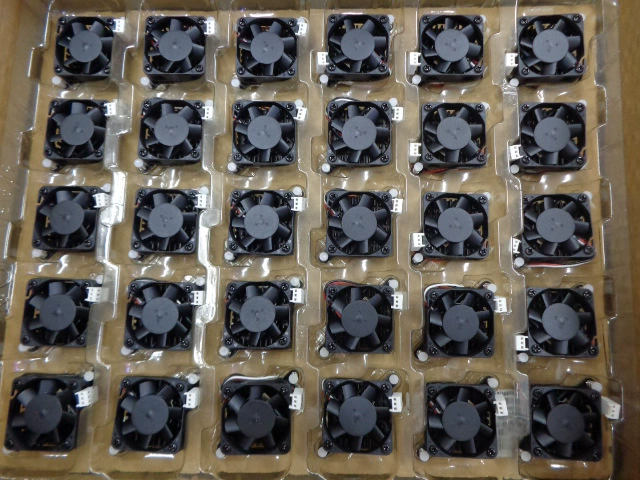

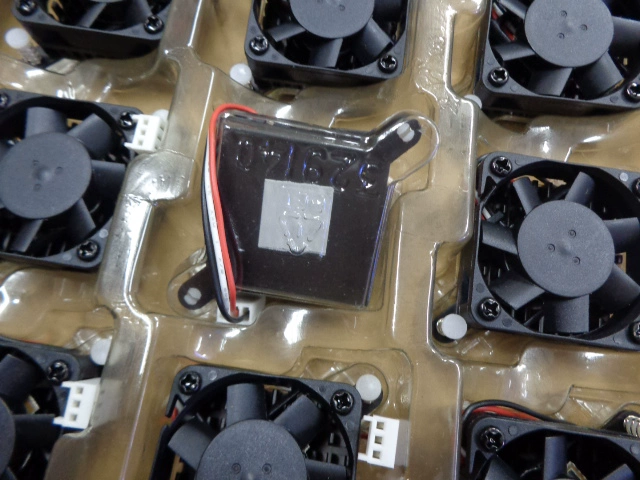

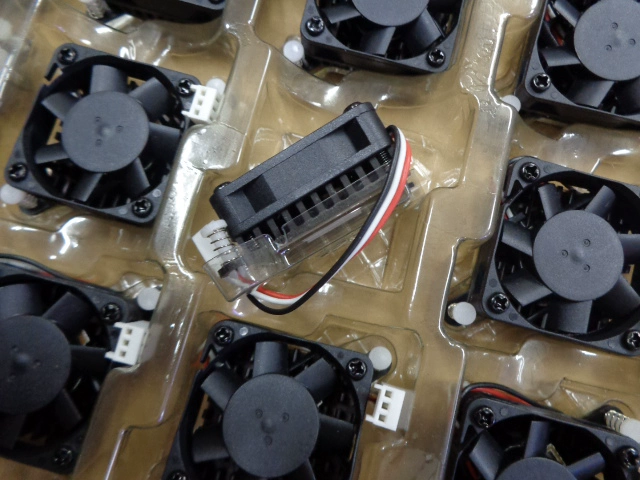

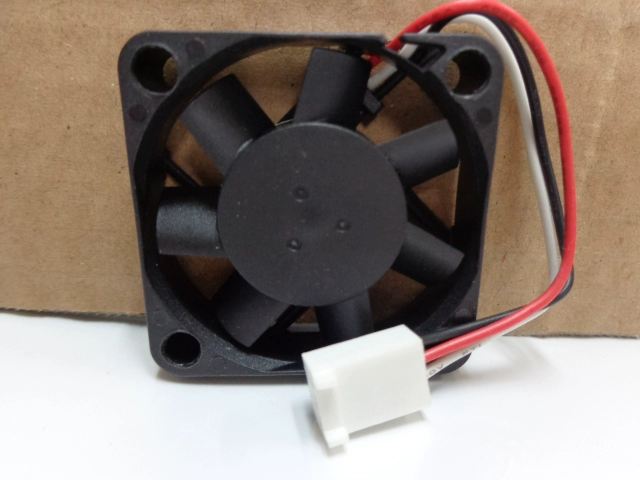

The Delta E40100V1-0000-F99 is a compact 12V DC blower fan (also known as a radial or centrifugal fan) manufactured by Delta Electronics. Measuring approximately 40mm x 40mm x 10mm, this blower is engineered to deliver concentrated airflow for precise cooling or directing air through confined spaces. It operates at 12V DC with a rated power of 1.08W, translating to a current draw of 0.09A. This enables the blower to achieve a high rotational speed of approximately 5500 RPM, producing an airflow of around 2.5 CFM with significant static pressure. Its noise level is typically 28 dBA. The fan features ball bearings for enhanced durability and a long operational lifespan, and it is equipped with a 3-wire connector that includes a tachometer output for speed monitoring.
Model Number: E40100V1-0000-F99
Manufacturer: Delta Electronics
Type: DC Blower Fan (Radial/Centrifugal Fan)
Dimensions: Approximately 40mm x 40mm x 10mm
Rated Voltage: 12V DC
Rated Current: 0.09A
Rated Power: 1.08W
Speed: 5500 RPM
Airflow: 2.5 CFM (0.07 m³/min)
Static Pressure: 0.19 inch-H2O (4.8 mmAq)
Noise Level: 28 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: High, typical for Delta ball bearing fans (>50,000 hours at 40°C)
Frame Material: Plastic
Impeller Material: Plastic
