Description

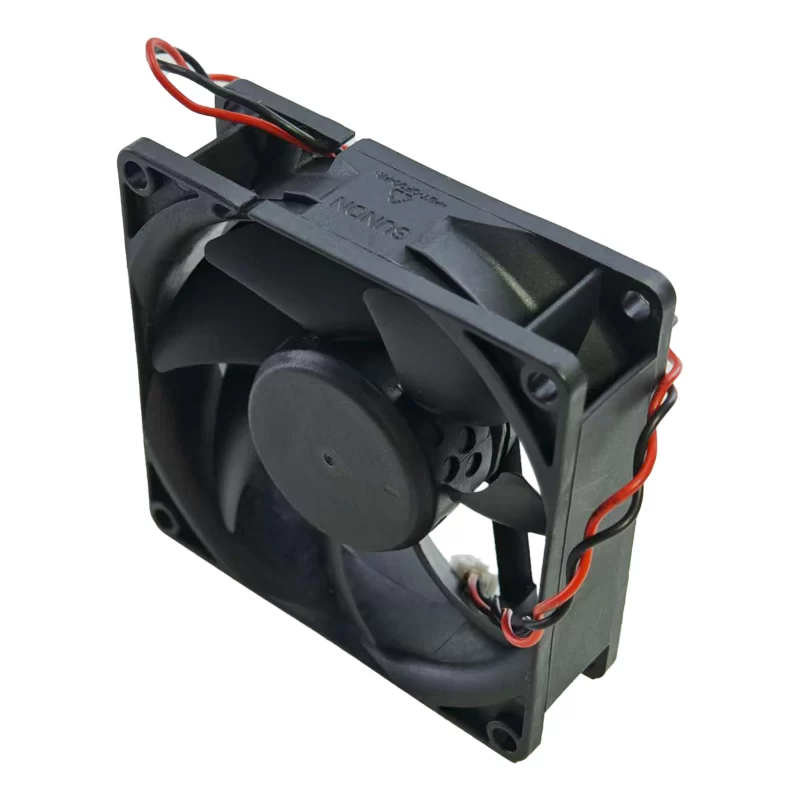

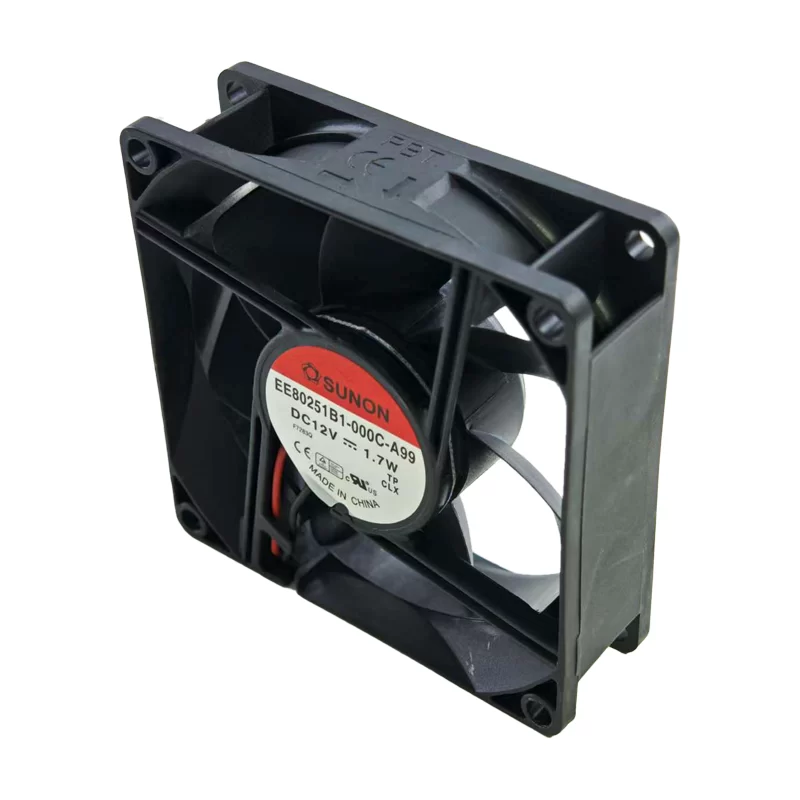

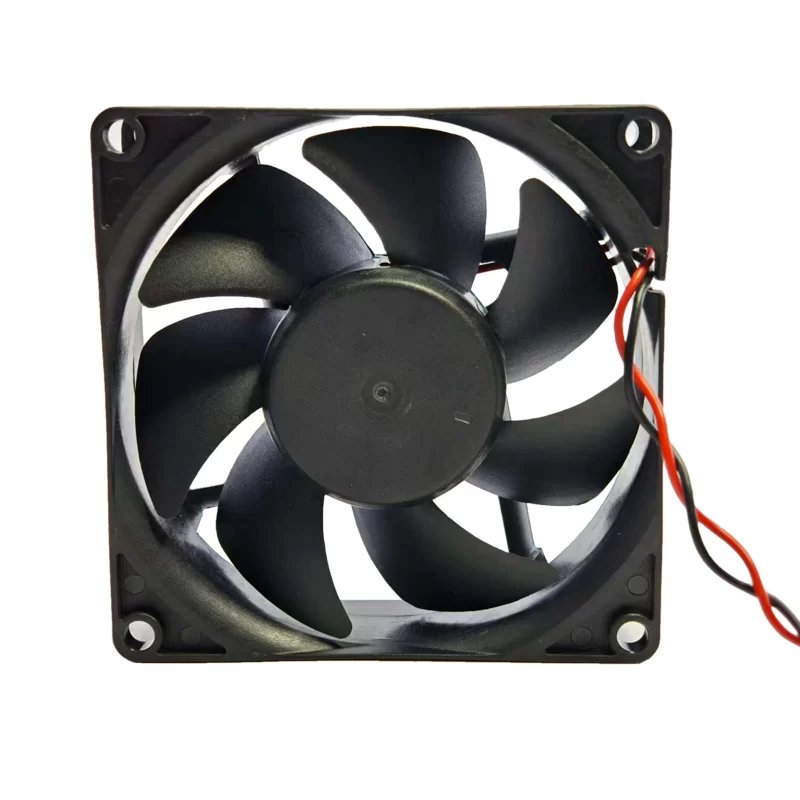

The SUNON EE80251B1-000C-A99 is a standard 12VDC axial fan with dimensions of 80x80x25mm. It is designed for general-purpose cooling, providing 41CFM (69.7m³/h) of airflow and generating 44.8Pa (0.18inchH₂O) of static pressure. Operating at 3200RPM, the fan consumes 1.7W of power and is built with durable, flame-retardant plastic materials. It uses ball bearings for enhanced reliability and is terminated with two wire leads for power connection. It is commonly used in PCs, power supplies, control cabinets, and various electronic enclosures.
EE80251B1-000C-A99 Fan Parameters
Manufacturer: SUNON
Model: EE80251B1-000C-A99
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Current Rating: 0.145 A
Power Consumption: 1.7 W
Airflow: 41 CFM (69.7 m³/h)
Static Pressure: 44.8 Pa (0.18 inch H₂O)
Speed: 3200 RPM
Noise Level: 33 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Weight: 75 g
Application: This SUNON DC axial fan is suitable for cooling PCs, power supplies, and electronic enclosures.
