Description

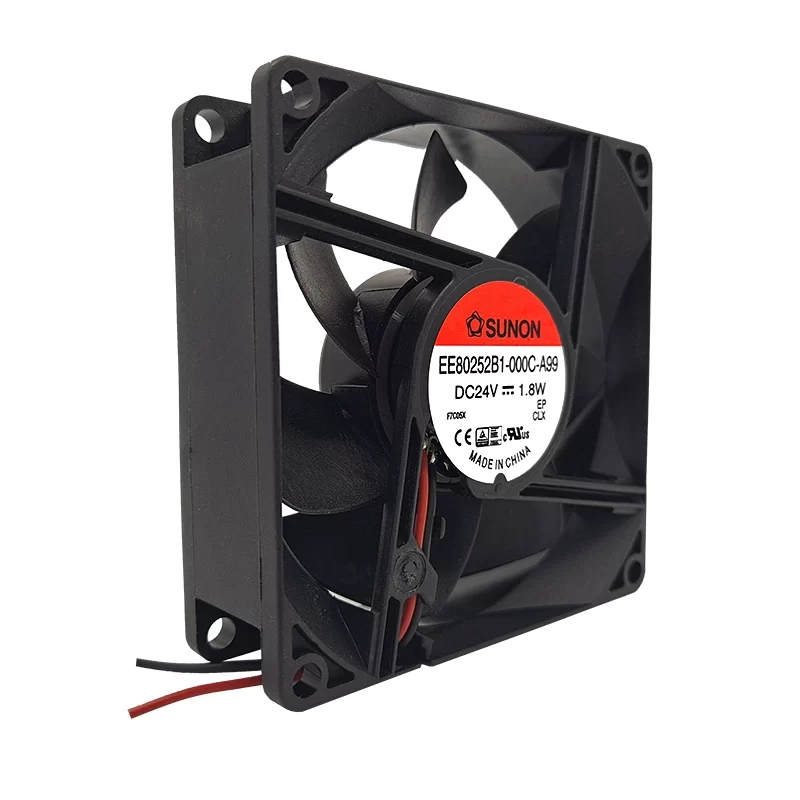

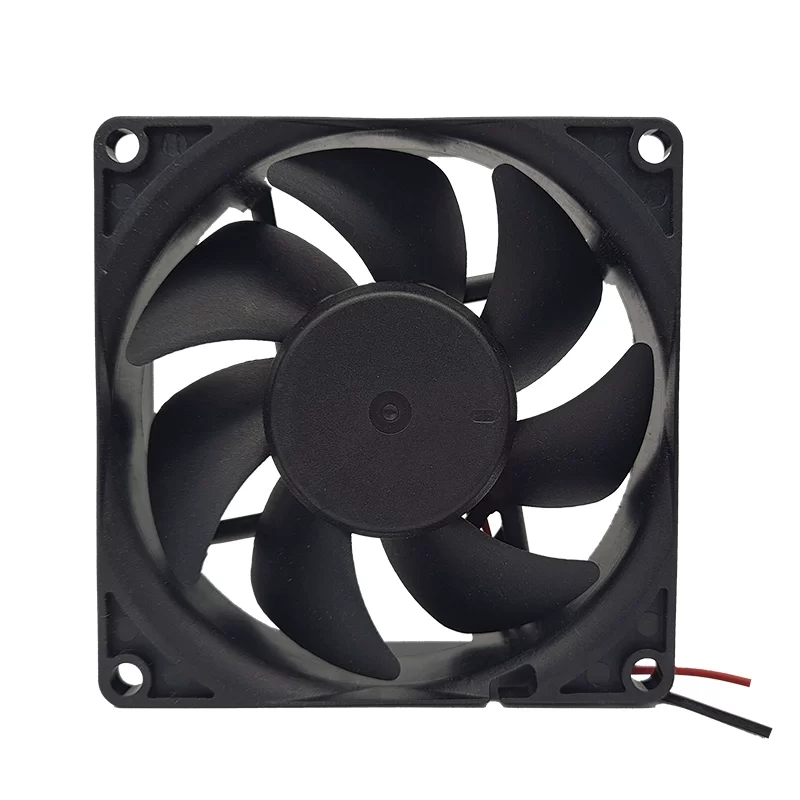

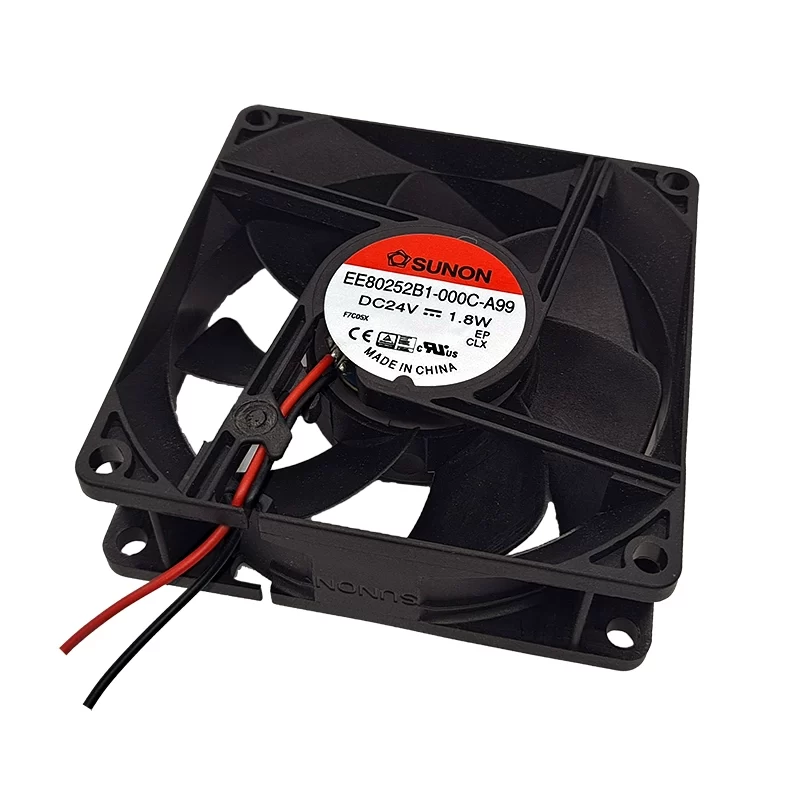

The SUNON EE80252B1-000C-A99 is a DC axial fan measuring 80x80x25mm. It operates on 24 VDC, drawing 0.073 A of current, with a power consumption of 1.8 W. This fan achieves a speed of 3200 RPM, providing an airflow of 69.7 m³/h (approximately 41 CFM). The noise level is 33 dB(A). It features ball bearings for reliable operation and connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT), with a UL94V-0 flammability rating. It includes an auto-restart function for motor protection. This fan is commonly used in various electronic equipment, servers, and general cooling applications requiring efficient and durable airflow.
EE80252B1-000C-A99 Fan Parameters
Model: EE80252B1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 80x80x25 mm
Rated Voltage: 24 VDC
Operating Voltage: 10 to 27.6 VDC
Rated Current: 0.073 A
Power Consumption: 1.8 W
Speed: 3200 RPM
Speed Tolerance: ±10%
Airflow: 69.7 m³/h (41 CFM)
Static Pressure: 4.57 mmH2O (0.18 inH2O)
Noise Level: 33 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: E
Operating Temperature: -10 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 75 g
Application: Electronic equipment, servers, general cooling.
