Description

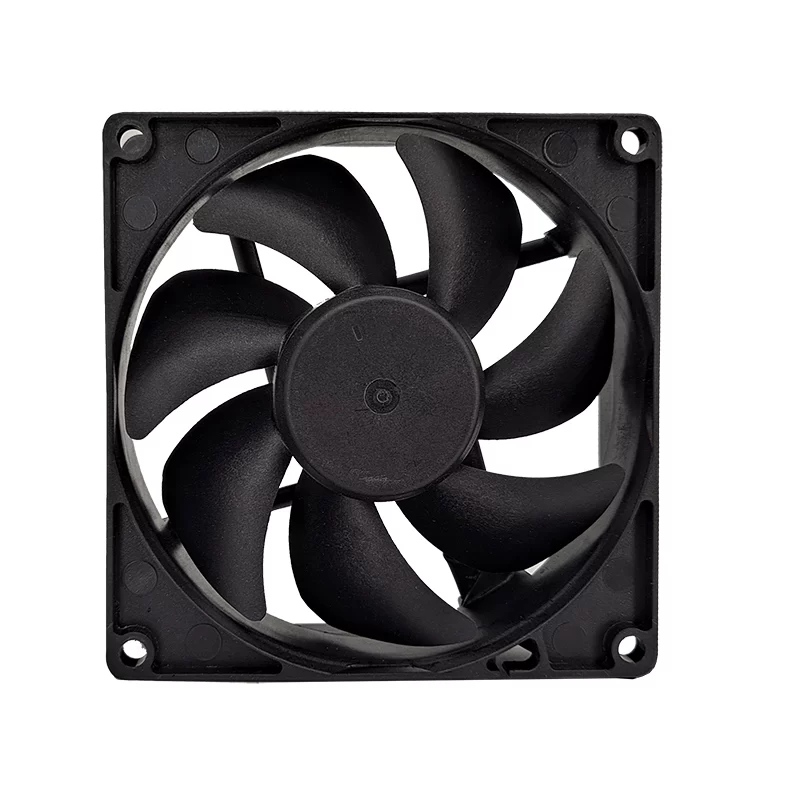

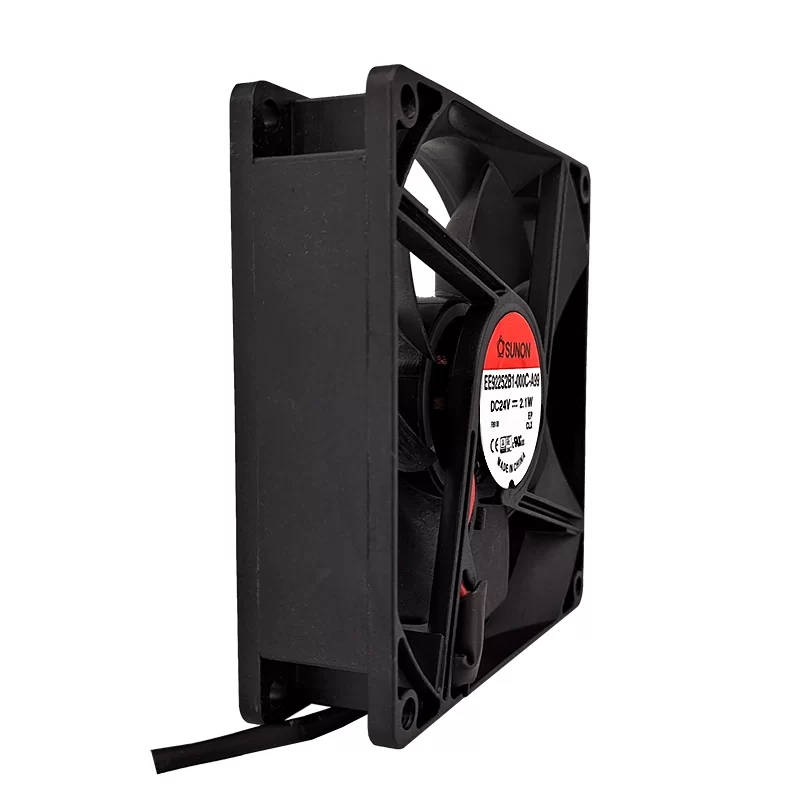

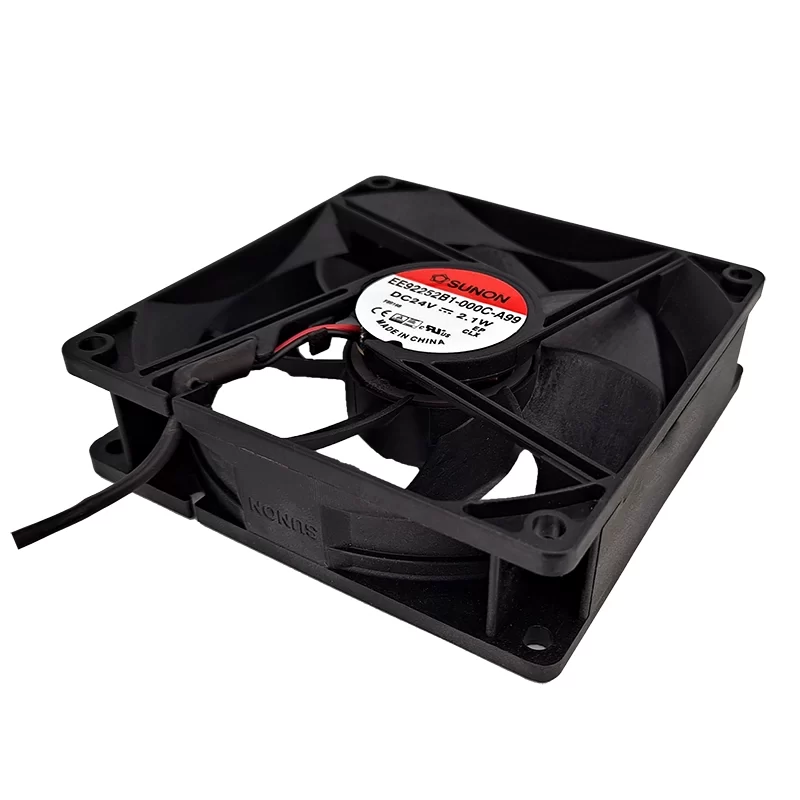

The SUNON EE92252B1-000C-A99 is a DC axial fan measuring 92x92x25mm. It operates on 24 VDC, drawing 87 mA of current, with a power consumption of 2.1 W. This fan achieves a speed of 3000 RPM, providing an airflow of 51.5 CFM (approximately 87.55 m³/h). The noise level is 34 dB(A). It features ball bearings for reliable operation and connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT), with a UL94V-0 flammability rating. It includes an auto-restart function for motor protection. This fan is commonly used in various electronic equipment, server cooling, and general cooling applications requiring efficient and durable airflow.
EE92252B1-000C-A99 Fan Parameters
Model: EE92252B1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 92x92x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 87 mA
Power Consumption: 2.1 W
Speed: 3000 RPM
Speed Tolerance: ±10%
Airflow: 51.5 CFM (87.55 m³/h)
Static Pressure: 0.150 inH2O (3.81 mmH2O)
Noise Level: 34 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: A
Operating Temperature: -10 to 70°C
Expected Life: 50,000 hours (at 25°C) / 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 93.89 g
Application: Electronic equipment, server cooling, general cooling.
