Description

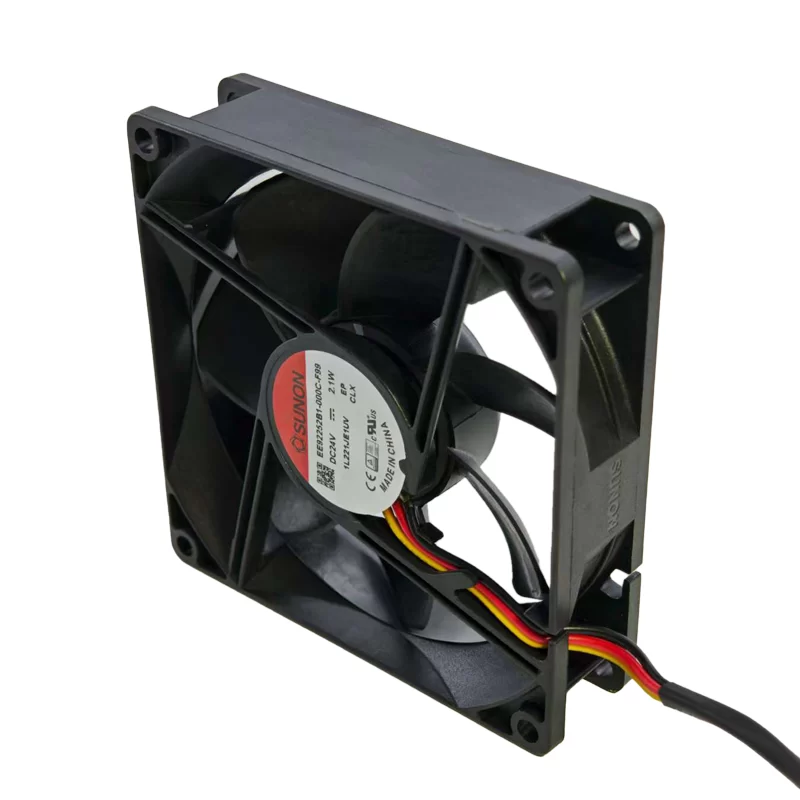

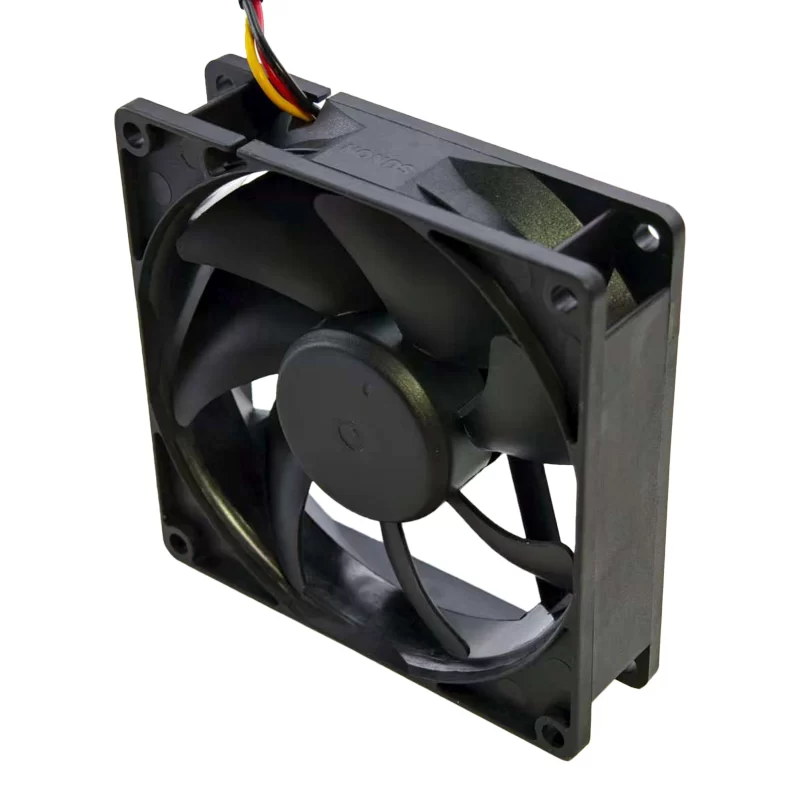

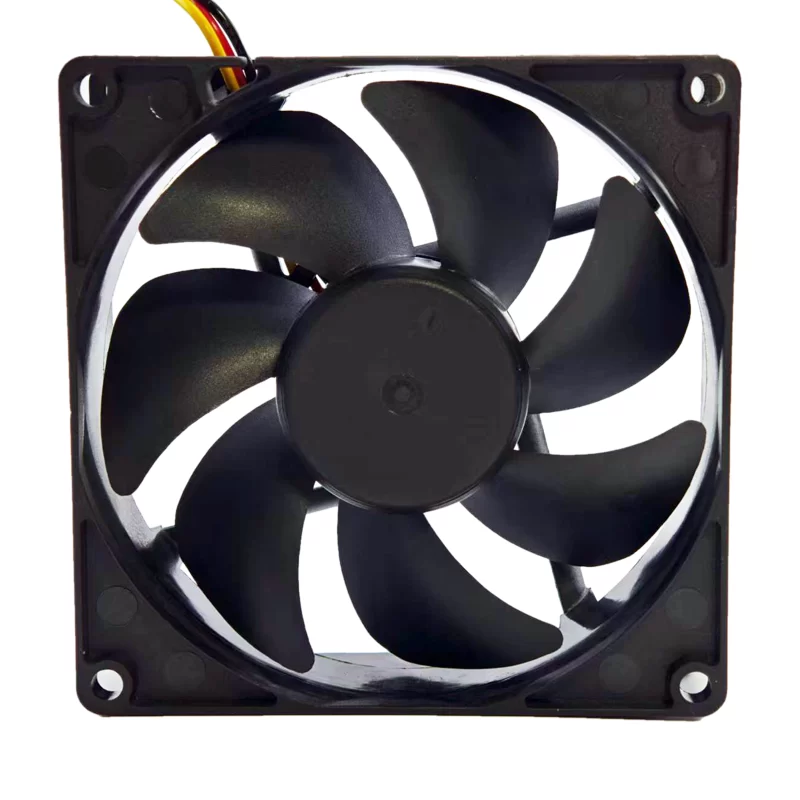

The SUNON EE92252B1-000C-F99 is a DC Axial Fan with dimensions of 92x92x25mm. It operates on 24VDC, drawing 0.063A of current with a power consumption of 2.1W. This fan delivers an airflow of 10.8CFM and generates a static pressure of 0.17 in H2O at a speed of 3000RPM. The fan operates with a noise level of 51.5dBA and features 4 wire leads for termination. Weighing 0.157 kg, this fan is suitable for cooling applications in electronic enclosures, smaller systems, and other areas where specific airflow and noise characteristics are required.
EE92252B1-000C-F99 Fan Parameters
Model: EE92252B1-000C-F99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 24 V DC
Current Draw: 0.063 A
Power Consumption: 2.1 W
Airflow: 10.8 CFM
Static Pressure: 0.17 in H2O
Speed: 3000 RPM
Noise: 51.5 dBA
Termination: 4 Wire Leads
Weight: 0.157 kg
Application: Electronic enclosures, small systems cooling.
