Description

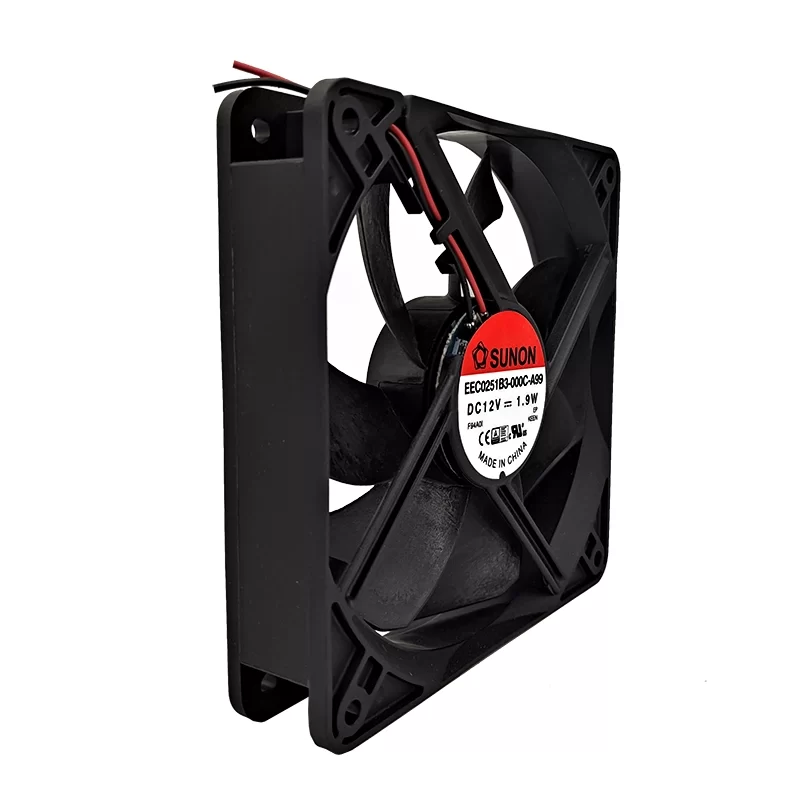

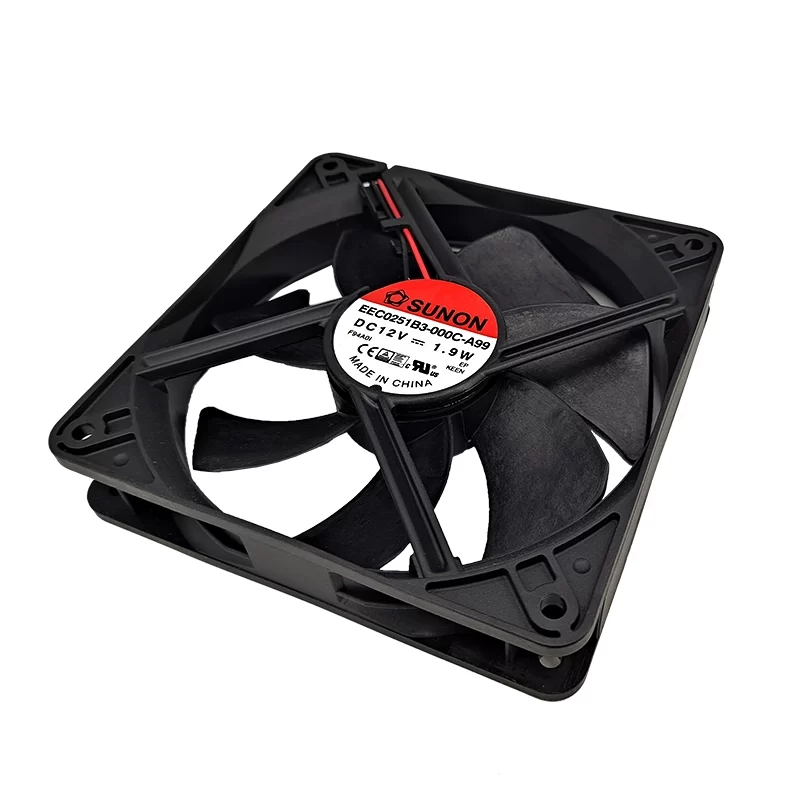

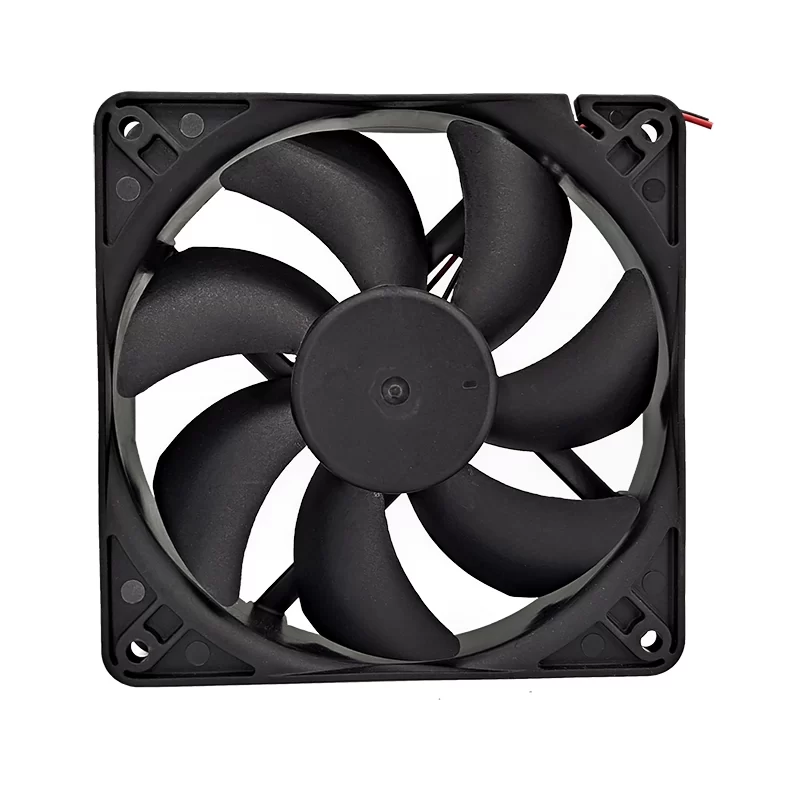

The SUNON EEC0251B3-000C-A99 is a DC axial fan measuring 120x120x25mm. It operates on 12 VDC, drawing 0.161 A of current, with a power consumption of 1.9 W. This fan achieves a speed of 2200 RPM, providing an airflow of 75 CFM (approximately 127.42 m³/h). The noise level is 34 dB(A). It features ball bearings for reliable operation and connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT), with a UL94V-0 flammability rating. It includes an auto-restart function for motor protection. This fan is commonly used in various electronic devices, servers, and general cooling applications requiring efficient and durable airflow.
EEC0251B3-000C-A99 Fan Parameters
Model: EEC0251B3-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 120x120x25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 0.161 A
Power Consumption: 1.9 W
Speed: 2200 RPM
Speed Tolerance: ±10%
Airflow: 75 CFM (127.42 m³/h)
Static Pressure: 0.16 inH2O (4.06 mmH2O)
Noise Level: 34 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: A
Operating Temperature: -10 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 157 g
Application: Electronic devices, servers, general cooling.
