Description

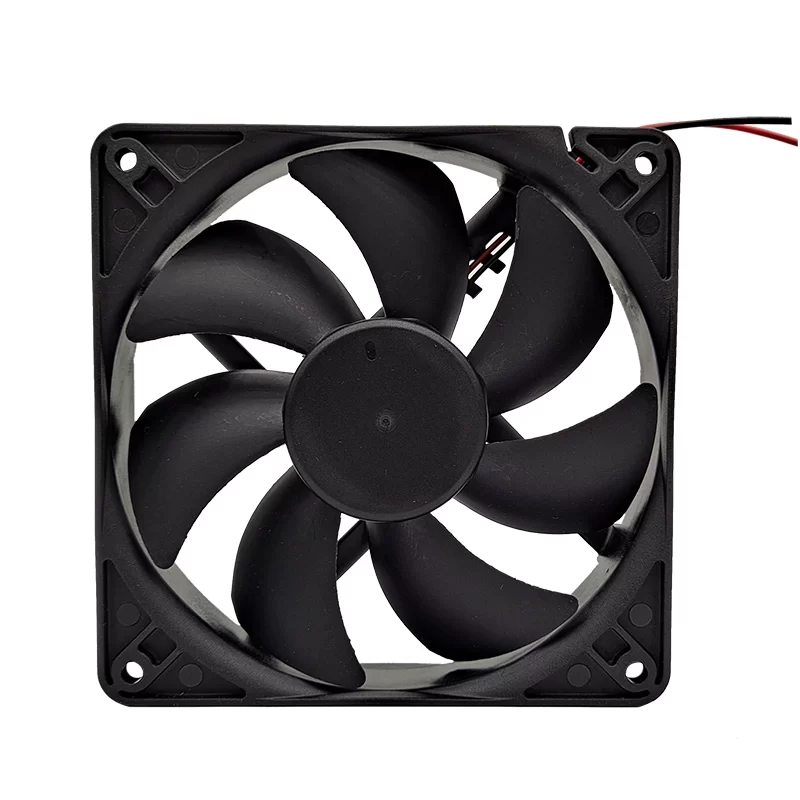

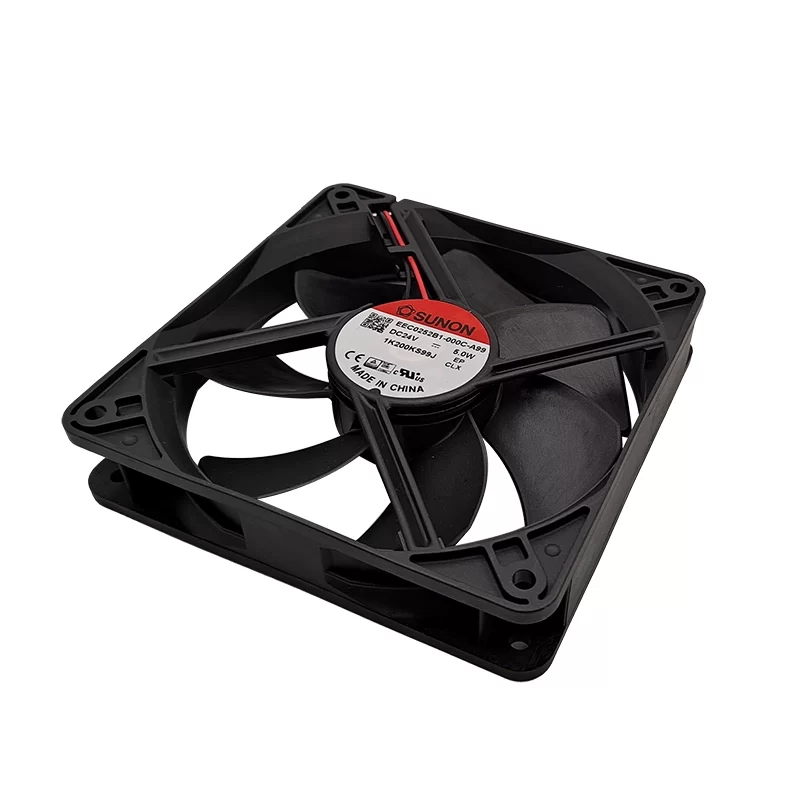

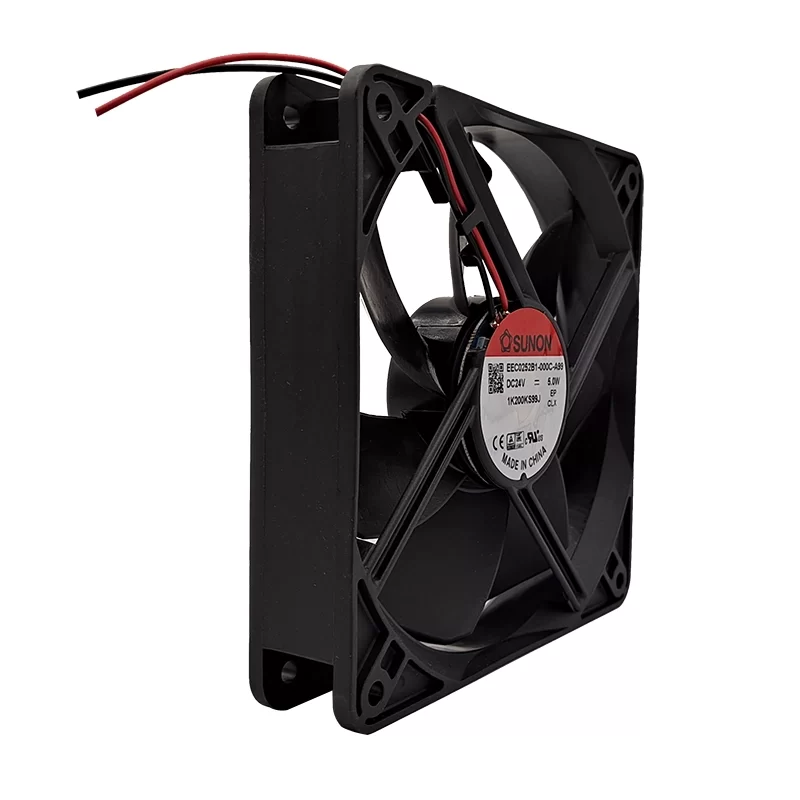

The SUNON EEC0252B1-000C-A99 is a DC axial fan measuring 120x120x25mm. It operates on 24 VDC, drawing 207 mA of current, with a power consumption of 5 W. This fan achieves a speed of 3100 RPM, providing an airflow of 108.2 CFM (approximately 183.8 m³/h). Its noise level is 44.5 dB(A). It features a reliable ball bearing system for extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes an automatic restart function for motor protection. It is commonly used in various electronic equipment, server cooling, and general cooling applications requiring efficient and durable airflow.
EEC0252B1-000C-A99 Fan Parameters
Model: EEC0252B1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 120x120x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 207 mA (or 0.207A)
Current and Power Consumption Tolerance: ±15%
Power Consumption: 5 W
Speed: 3100 RPM
Speed Tolerance: ±10%
Airflow: 108.2 CFM (183.8 m³/h)
Static Pressure: 0.28 inH2O (7.11 mmH2O or 69.7 Pa)
Noise Level: 44.5 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (typically 330mm length)
Frame Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Design: 2 phases, 4-poles Brushless DC motor
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 157 g (or 0.157 kg)
Application: Electronic equipment, server cooling, general cooling.
