Description

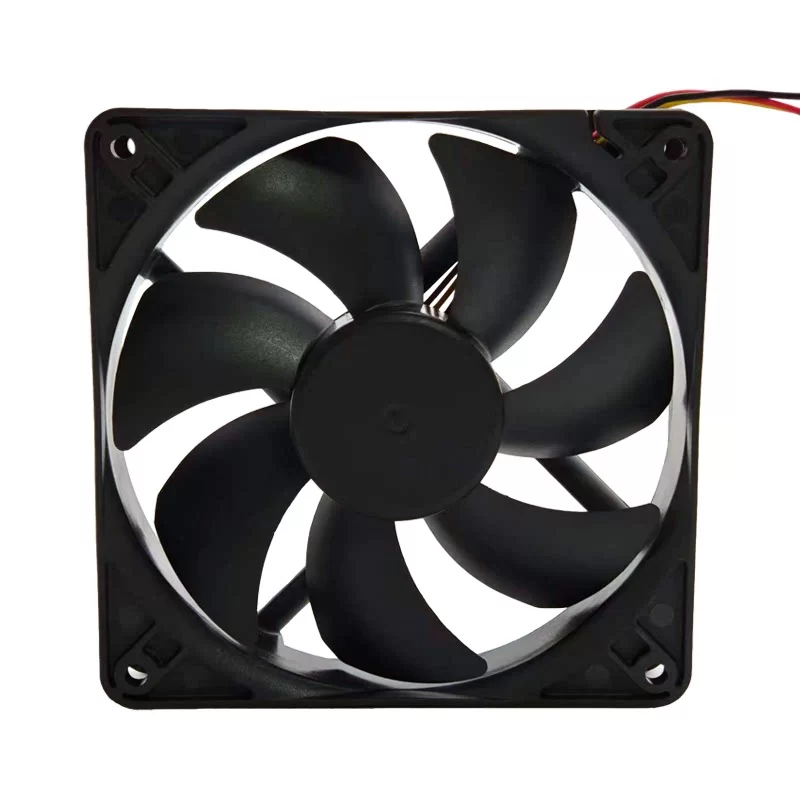

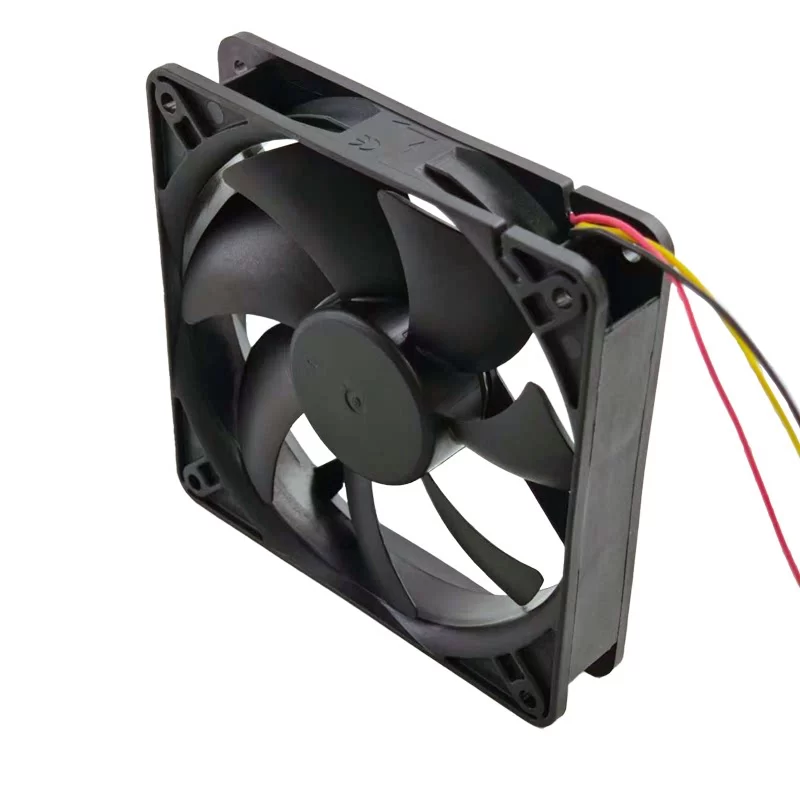

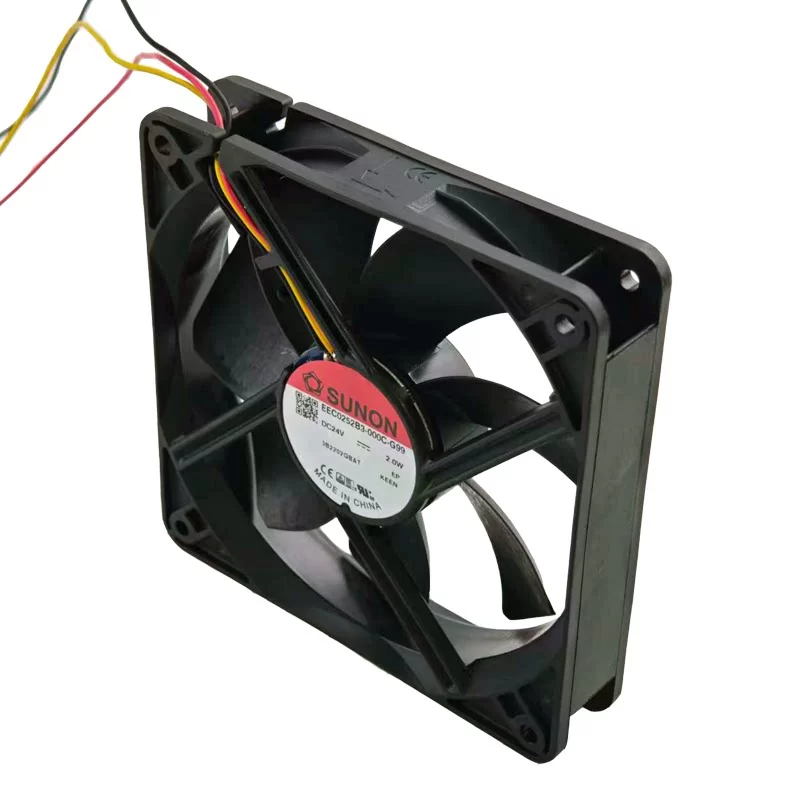

The Sunon EEC0252B3-000C-G99 is a high-efficiency 120 mm DC axial fan designed for long-term reliability in industrial and telecommunications infrastructure. Operating on a 24 VDC supply with a low power consumption of only 2.0 W, this unit is engineered for energy-critical cooling applications. It features a robust dual ball bearing system that ensures stable mechanical performance and an extended service life. The G99 configuration includes a professional 3-wire interface with a Tacho (FG) signal output, enabling the host system to perform real-time rotational speed monitoring for proactive system safety. With a rated speed of 2200 RPM, the EEC0252B3-000C-G99 delivers a powerful airflow of 75 CFM and a static pressure of 0.16 inH₂O while maintaining an impressively low noise profile of 34 dBA. Constructed with UL 94V-0 flame-retardant plastic, this 157 g fan provides a dependable, eco-friendly thermal solution for power supplies, server racks, and industrial control cabinets across an ambient temperature range of -10 °C to +70 °C.
EEC0252B3-000C-G99 Fan Parameters
Model Number: EEC0252B3-000C-G99
Manufacturer: Sunon
Series: EEC Series
Type: DC Axial Fan
Size: 120 mm
Dimensions: 120 x 120 x 25 mm
Weight: 157 g
Bearing Type: Ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 10.0 – 27.6 VDC
Power Consumption: 2.0 W
Nominal Current: 0.08 A
Speed: 2200 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 75 CFM (127.4 m³/h)
Actual Static Pressure: 0.16 inH₂O (4.06 mmH₂O / 39.8 Pa)
Sound Pressure Level: 34 dB(A)
Motor Design: Brushless DC motor
Motor Protection: Auto-restart; Polarity protection
Technical Features: Tacho output (FG signal); 3-wire interface; Soft start
Insulation Class: Class A
Electrical Hookup: 3-wire lead wires (Red: +, Black: -, Yellow: FG)
Number of Blades: 7
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: Exhaust over struts
Impeller Material: Plastic (UL 94V-0)
Housing Material: Plastic (UL 94V-0)
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -10 – +70 °C
Service Life (L10 @ 40 °C): 70000 h
Standard Compliance: UL, TUV, CE
Approval Agency: UL, TUV, CUR
Application
The Sunon EEC0252B3-000C-G99 DC fan is primarily utilized in industrial power supplies, telecommunications equipment cabinets, frequency converters, and server rack ventilation.
