Description

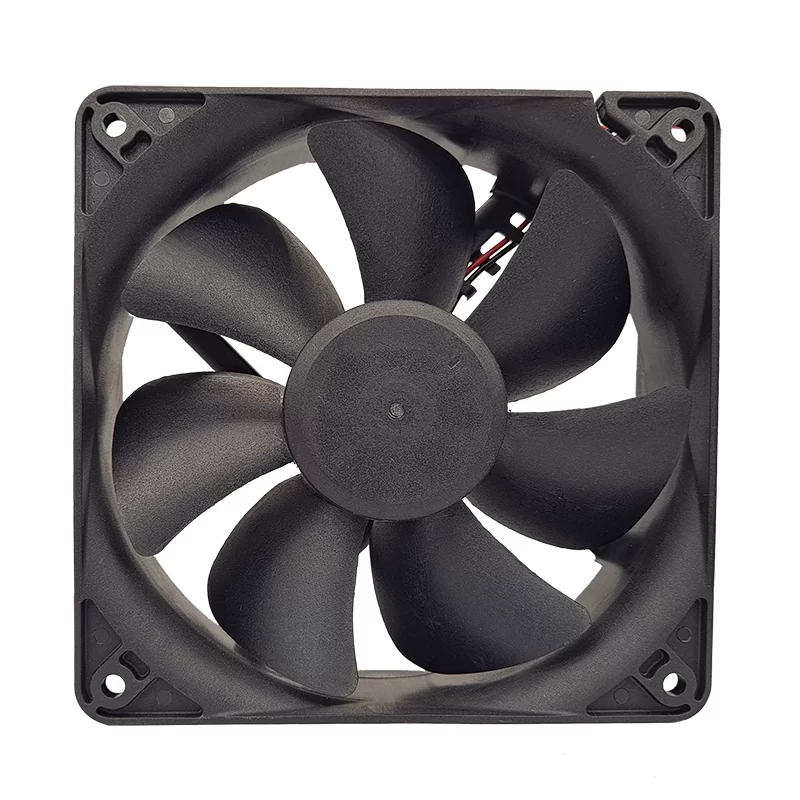

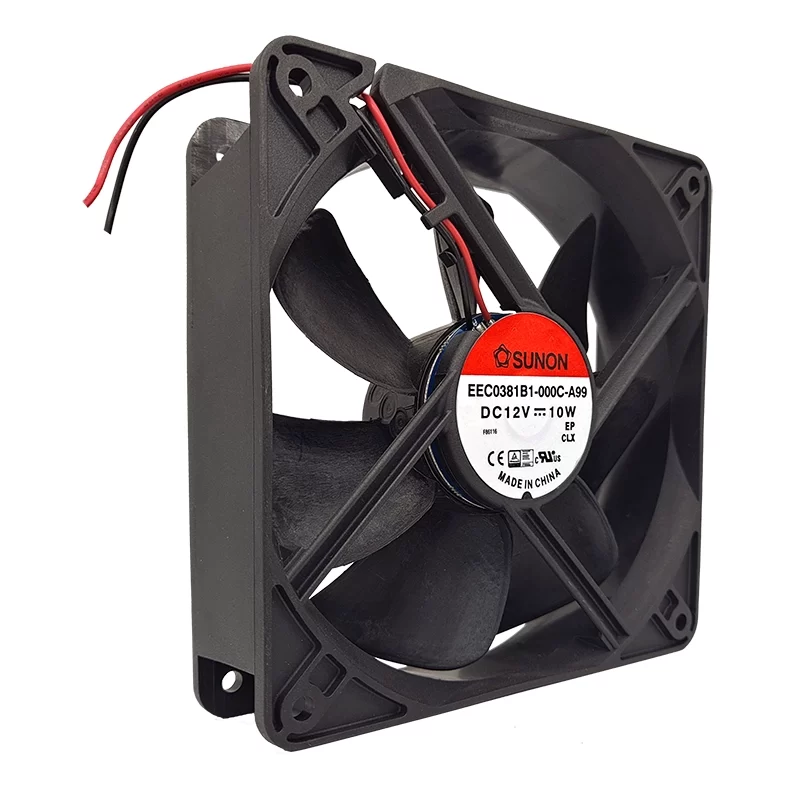

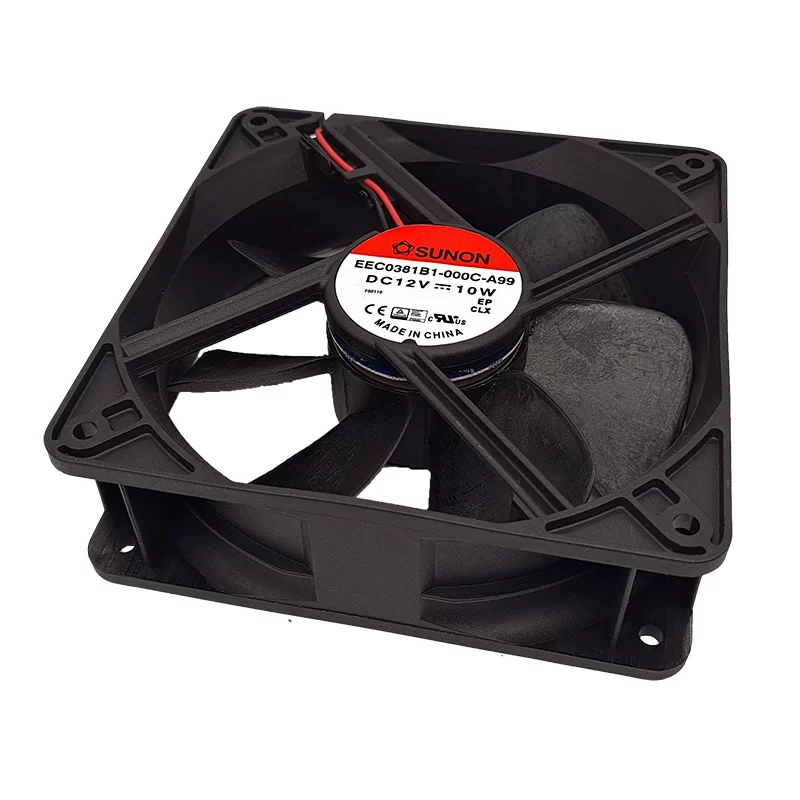

The SUNON EEC0381B1-000C-A99 is a DC axial fan measuring 120x120x38mm. It operates on 12 VDC, drawing 833 mA of current, with a power consumption of 10 W. This fan achieves a speed of 3100 RPM, providing an airflow of 138 CFM (approximately 234.4 m³/h). Its noise level is 48 dB(A). It features a reliable ball bearing system for extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes an auto-restart function for motor protection, and its design offers resistance to dust invasion. It is commonly used in various electronic equipment, server cooling, and general cooling applications requiring efficient and durable airflow.
EEC0381B1-000C-A99 Fan Parameters
Model: EEC0381B1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 833 mA (or 0.833 A)
Current and Power Consumption Tolerance: ±15%
Power Consumption: 10 W
Speed: 3100 RPM
Speed Tolerance: ±10%
Airflow: 138 CFM (234.4 m³/h)
Static Pressure: 0.360 inH2O (89.7 Pa)
Noise Level: 48 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (typically 310mm length, 24AWG)
Frame Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Protection: Auto Restart
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C)
Weight: 214.1 g (or 0.472 lb)
Application: Electronic equipment, server cooling, general cooling.
