Description

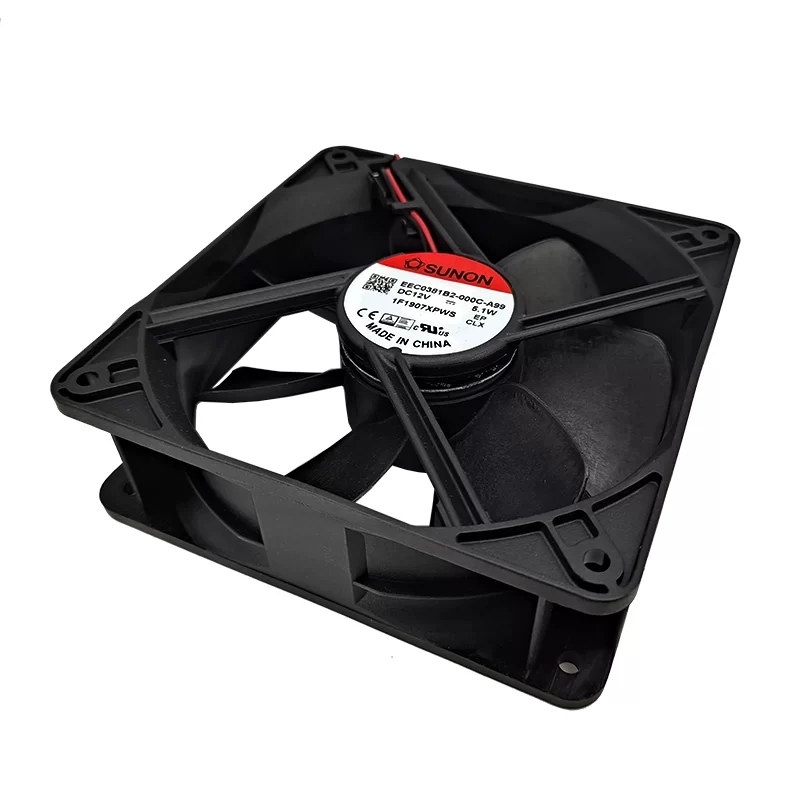

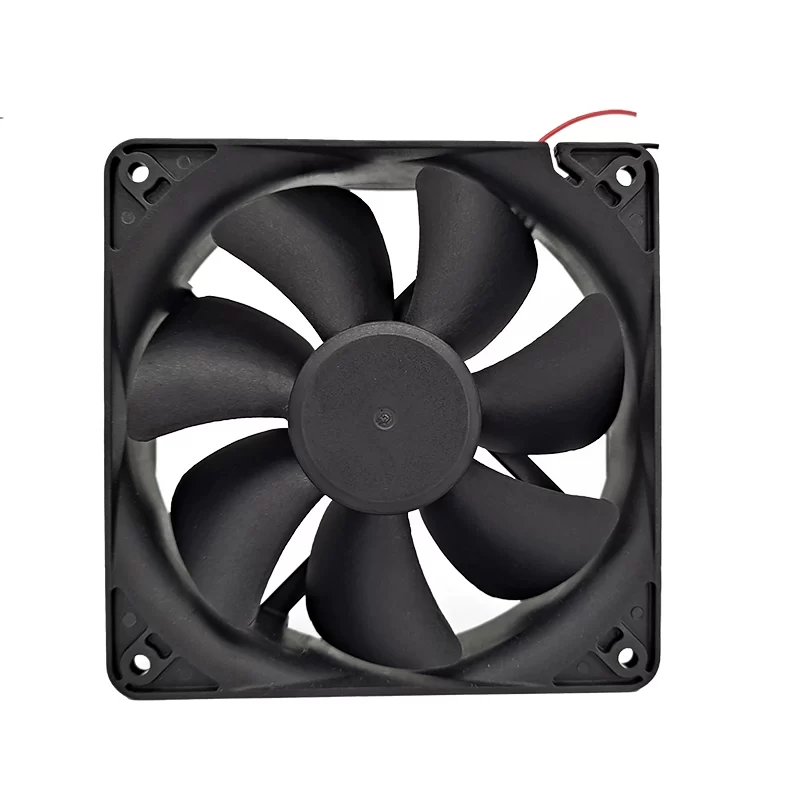

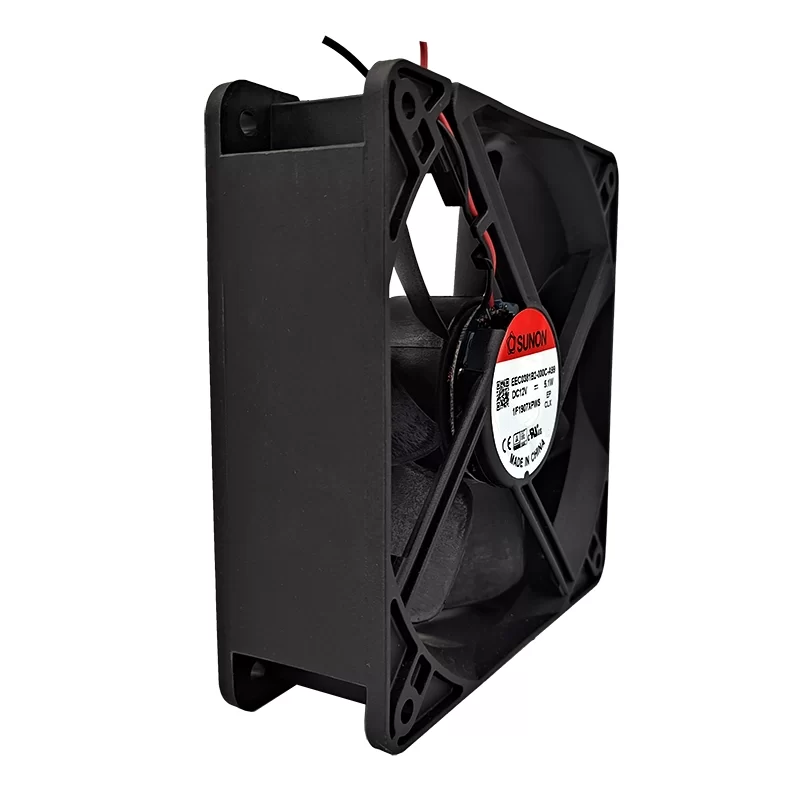

The SUNON EEC0381B2-000C-A99 is a DC axial fan measuring 120x120x38mm. It operates on 12 VDC, drawing 0.421 A of current, with a power consumption of 5.1 W. This fan achieves a speed of 2600 RPM, providing an airflow of 116 CFM (approximately 3.25 m³/min). The noise level is 44 dB(A). It features ball bearings for reliable operation and connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT), with a UL94V-0 flammability rating. It includes an auto-restart function for motor protection. This fan is commonly used in various electronic devices, servers, power supplies, and general cooling applications requiring efficient and durable airflow.
EEC0381B2-000C-A99 Fan Parameters
Model: EEC0381B2-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 0.421 A
Power Consumption: 5.1 W
Speed: 2600 RPM
Speed Tolerance: ±10%
Airflow: 116 CFM (3.25 m³/min)
Static Pressure: 0.260 inH2O (64.8 Pa)
Noise Level: 44 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Operating Temperature: -10 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 0.214 kg (214.1 g)
Application: Electronic devices, servers, power supplies, general cooling.
