Description

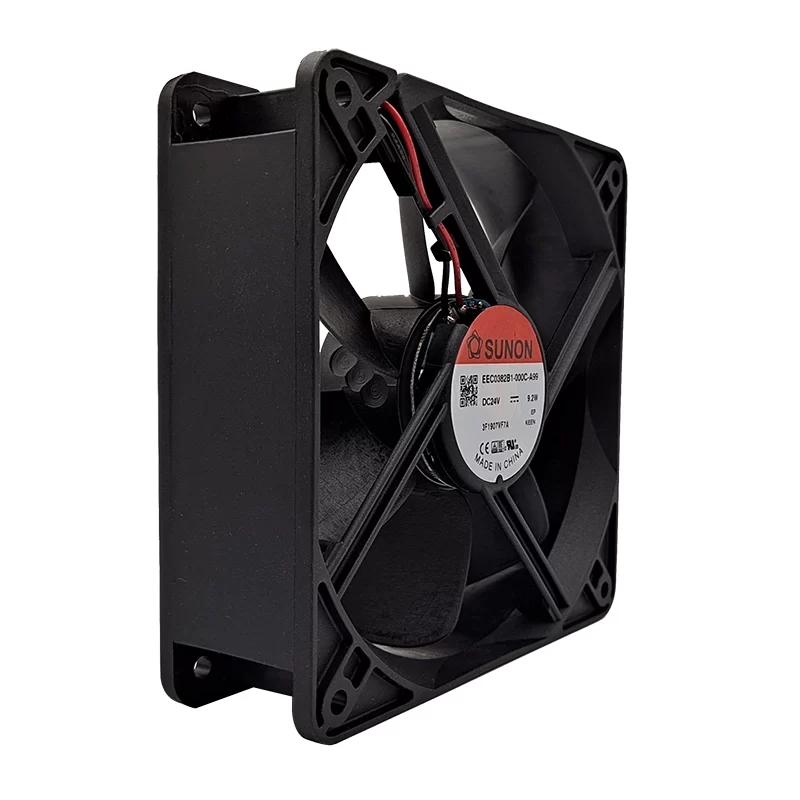

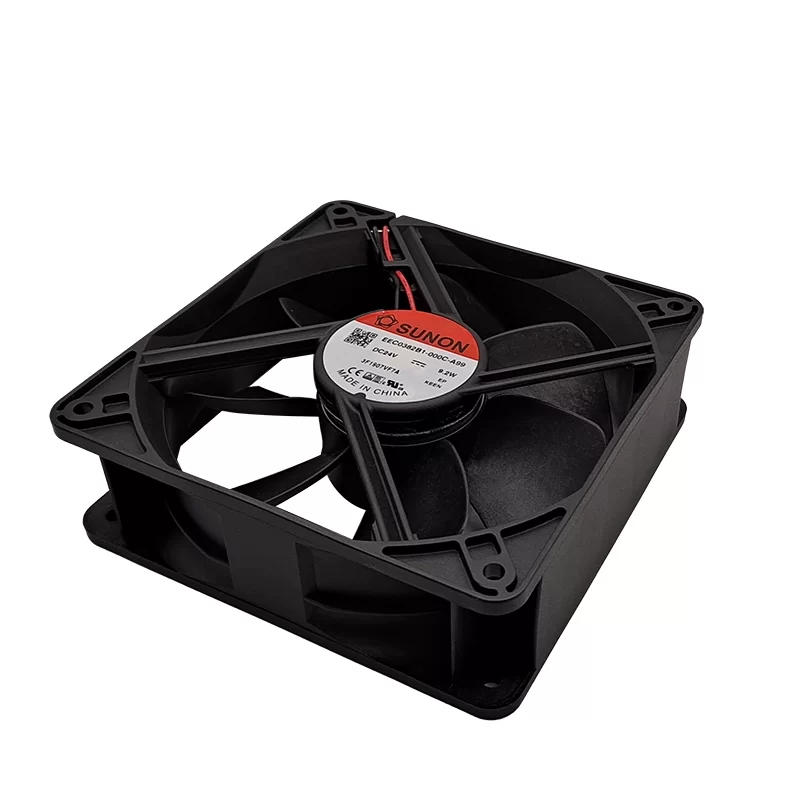

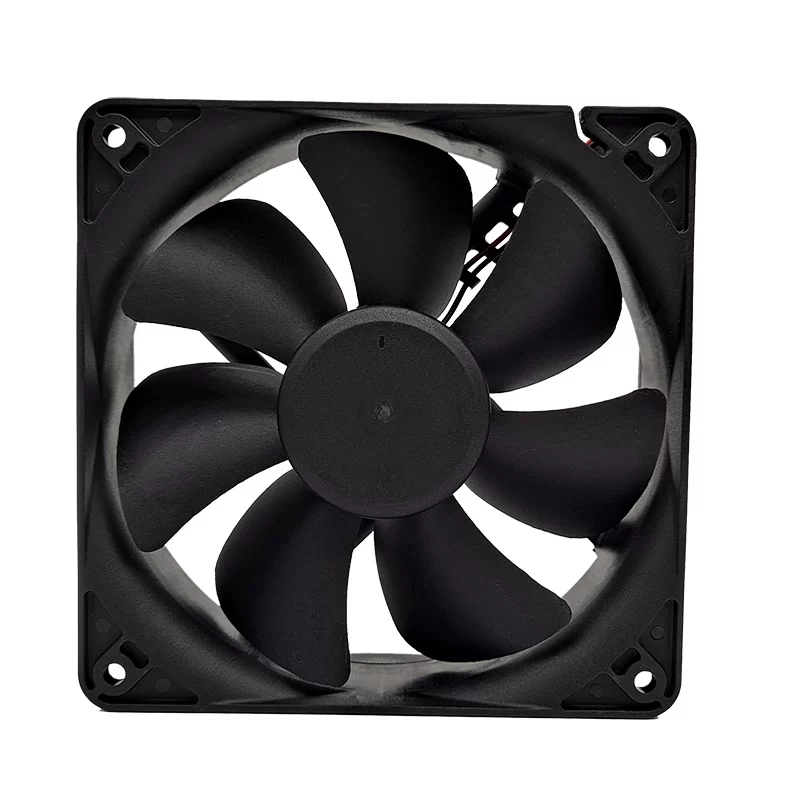

The SUNON EEC0382B1-000C-A99 is a powerful DC axial fan measuring 120x120x38mm. It operates on 24 VDC, drawing 0.4 A of current, with a power consumption of 9.2 W. This fan achieves a speed of 3100 RPM, providing a high airflow of 138 CFM (approximately 234.4 m³/h). The noise level is 48 dB(A). It features ball bearings for reliable operation and connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT), with a UL94V-0 flammability rating. It includes an auto-restart function for motor protection. This fan is commonly used in various industrial equipment, servers, power supplies, and general cooling applications requiring high-performance airflow.
EEC0382B1-000C-A99 Fan Parameters
Model: EEC0382B1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 0.4 A
Power Consumption: 9.2 W
Speed: 3100 RPM
Speed Tolerance: ±10%
Airflow: 138 CFM (234.4 m³/h)
Static Pressure: 0.360 inH2O (89.7 Pa)
Noise Level: 48 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (24AWG, 0.33m length)
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum
Operating Temperature: -10 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 0.214 kg (214.1 g)
Application: Industrial equipment, servers, power supplies, high-performance general cooling.
