Description

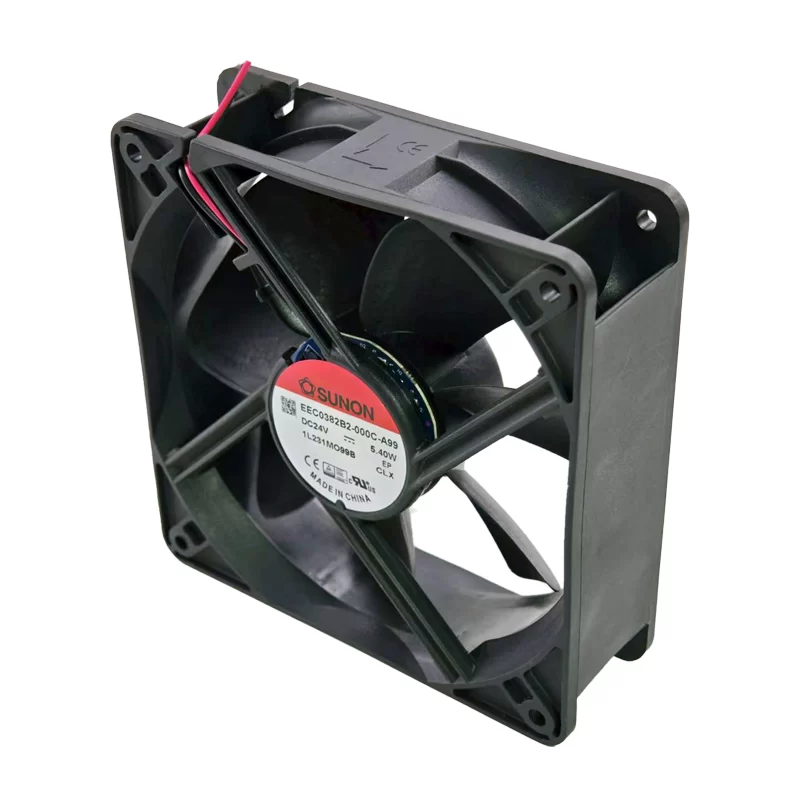

The Sunon EEC0382B2-000C-A99 is a DC Axial Fan with dimensions of 120x120x38mm. It operates on a nominal voltage of 24VDC, drawing 0.224A of current with a power consumption of 5.4W. This fan delivers an airflow of 116CFM at a speed of 2600RPM. It generates a static pressure of 0.26inH2O and has a noise level of 44dBA. Utilizing a ball bearing, it ensures reliable performance. The fan features 2 wire leads for termination and includes an auto-restart function, which automatically restarts the fan if the motor is locked. It is commonly used in various electronic devices, industrial equipment, and server cooling applications where efficient DC-powered airflow is required.
EEC0382B2-000C-A99 Fan Parameters
Model: EEC0382B2-000C-A99
Manufacturer: Sunon
Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Nominal Voltage: 24 V DC
Operating Voltage: 10-27.6 V DC
Current Draw: 0.224 A
Power Consumption: 5.4 W
Airflow: 116 CFM (3.285 m³/min)
Static Pressure: 0.26 in H2O (64.8 Pa)
Speed: 2600 RPM
Noise: 44 dBA
Bearing: Ball bearing
Termination: 2 Wire Leads
Weight: 214 g
Features: Auto Restart
Application: Electronic devices, industrial equipment, server cooling.
