Description

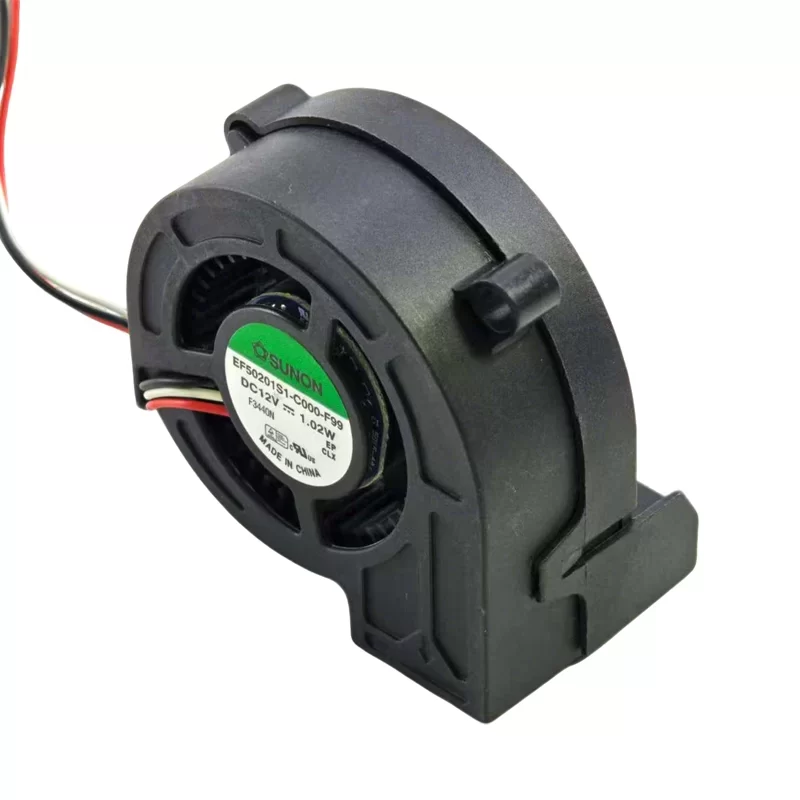

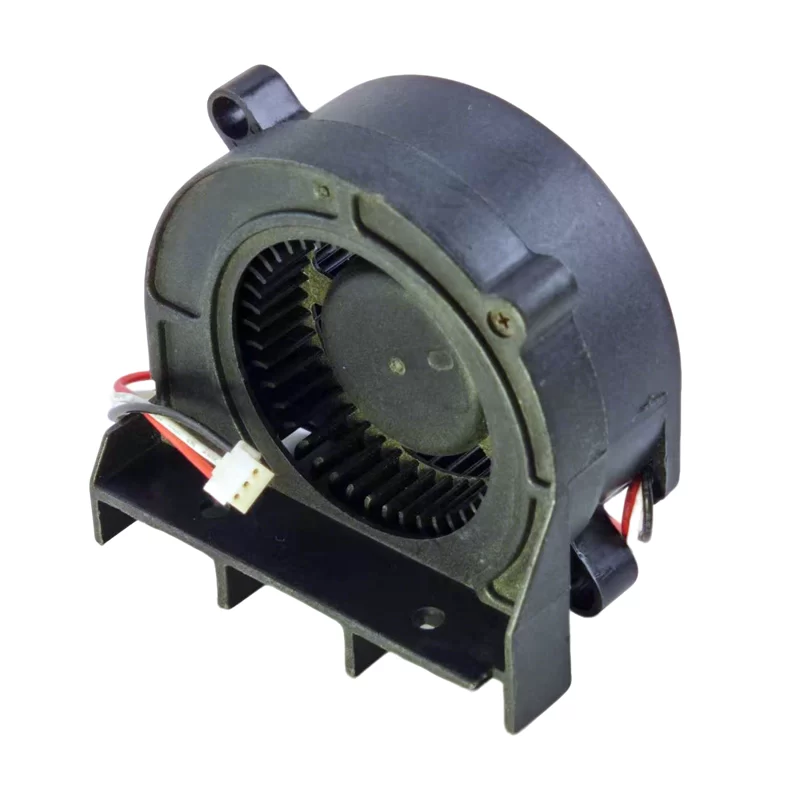

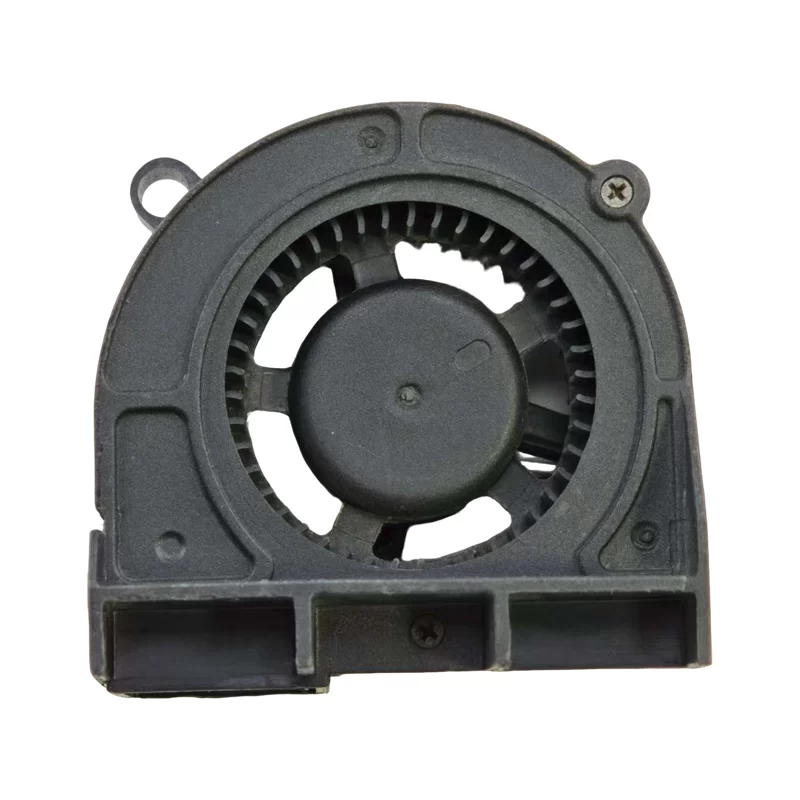

The SUNON EF50201S1-C000-F99 is a compact DC blower with dimensions of 50 x 50 x 20 mm. It operates on 12V DC, drawing 0.085 A of current and consuming 1.02 W of power. This blower features 3-wire leads, which typically provide power, ground, and a signal for speed monitoring. This fan is commonly used in projectors.
EF50201S1-C000-F99 Fan Parameters
Manufacturer: SUNON
Model: EF50201S1-C000-F99
Fan Type: DC Blower
Dimensions: 50 x 50 x 20 mm
Rated Voltage: 12V DC
Current Rating: 0.085 A
Power Consumption: 1.02 W
Termination: 3-Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Application
The EF50201S1-C000-F99 is primarily used for thermal management in projectors. Its compact size and blower design are ideal for directing a concentrated stream of air through the small, restrictive internal spaces to cool the electronics and light source.
