Description

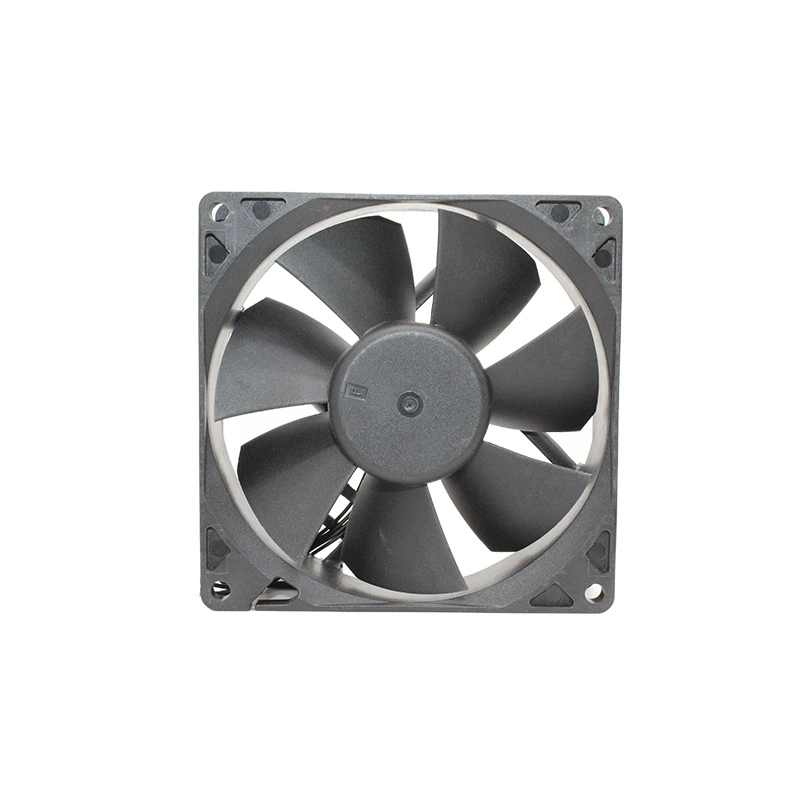

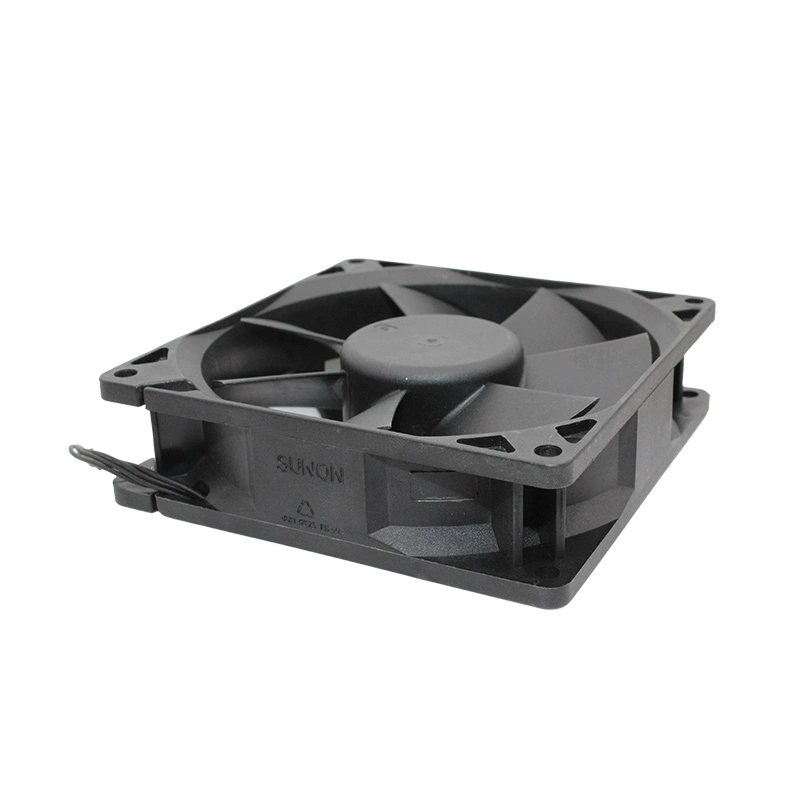

The Sunon EF92251BX-Q02C-S9A is a standard-sized DC Axial Cooling Fan designed for efficient thermal management in various electronic devices, including projectors. Operating on 12V DC power, it consumes 3.3W of power, drawing 0.275A of current. Measuring 92mm x 92mm x 25mm, this fan spins at 3400 RPM, delivering 55 CFM of airflow. Equipped with a 4-wire connector which typically allows for PWM speed control and tachometer output, and featuring a quiet-running bearing type such as a rifle bearing, the EF92251BX-Q02C-S9A provides reliable and effective cooling in applications where a balance of airflow, quiet operation, and standard dimensions are required.
EF92251BX-Q02C-S9A 9025 12V 3.3W Built-in SUNON 9cm high-air heat dissipation fan
Manufacturer: Sunon
Model Number: EF92251BX-Q02C-S9A
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Rated Power: 3.3W
Rated Current: 0.275A
Speed: 3400 RPM
Airflow: 55 CFM
Dimensions: 92mm x 92mm x 25mm

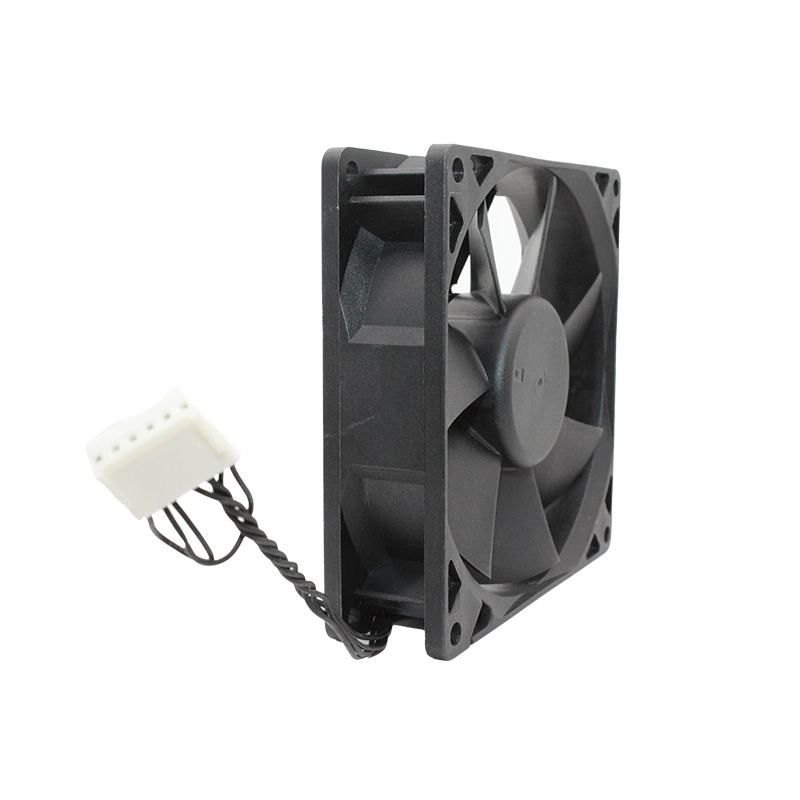

Connector: 4-Wire
Bearing Type: Likely Rifle Bearing or Ball Bearing (Sunon uses various bearing types, but Rifle is common for quiet operation in this class)
