EFB0412HD-ATQ Delta 12V 0.12A DC axial fan

Description

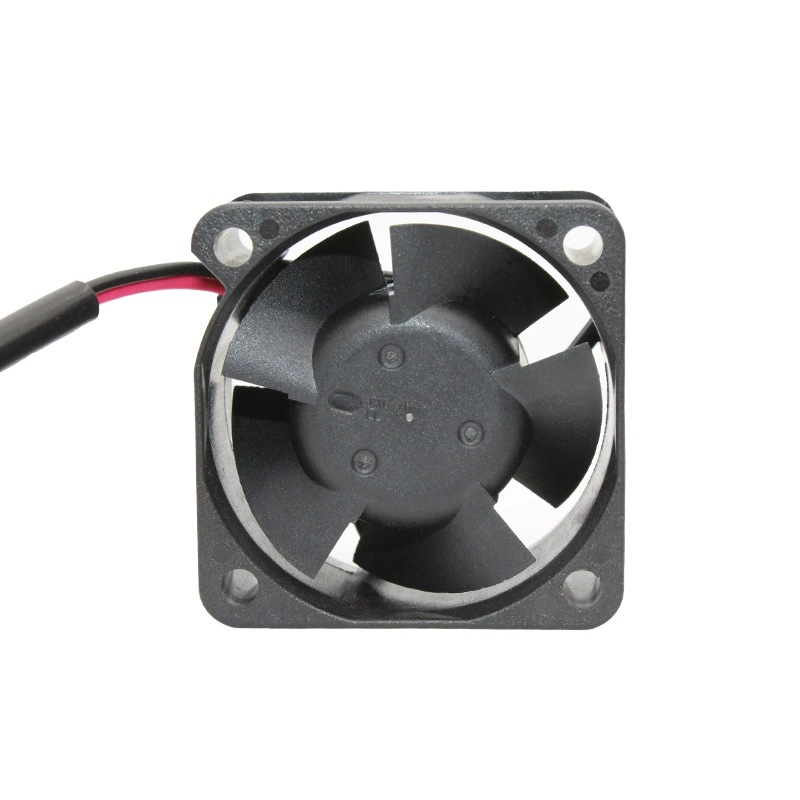

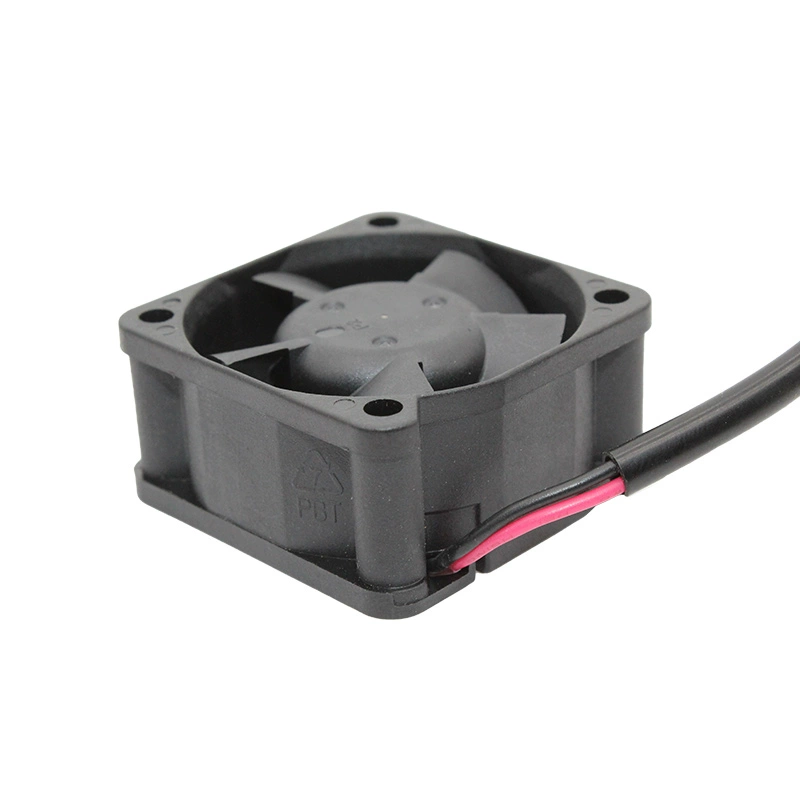

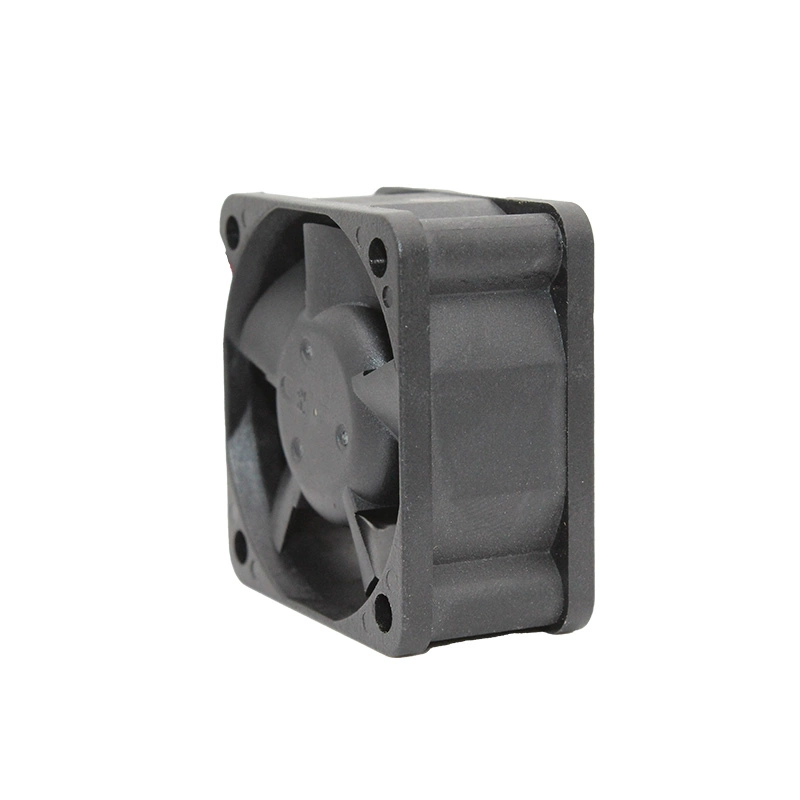

The Delta EFB0412HD-ATQ is a compact, high-performance 12V DC axial cooling fan from Delta Electronics, Inc., measuring 40mm x 40mm x 20mm. Operating at a confirmed rated current of 0.12A (1.44W), this fan is engineered for efficient heat dissipation in confined electronic spaces. It achieves a high rotational speed of 7600 RPM, delivering 8.54 CFM of airflow and a static pressure of 0.303 inch-H2O, while maintaining a relatively low noise level of 28.5 dBA. Equipped with robust ball bearings, it ensures a long operational life of 70,000 hours at 40°C. The fan utilizes 2-wire leads for power connection and typically includes a locked rotor sensor for monitoring its operational status, making it a reliable solution for various cooling applications.
Model Number: EFB0412HD-ATQ
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 12V DC
Rated Current: 0.12A
Rated Power: 1.44W
Speed: 7600 RPM
Airflow: 8.54 CFM / 0.24 m³/min
Static Pressure: 0.303 inch-H2O / 75.5 Pa
Noise Level: 28.5 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing (typically Dual Ball Bearing)
Life Expectancy: 70,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor
