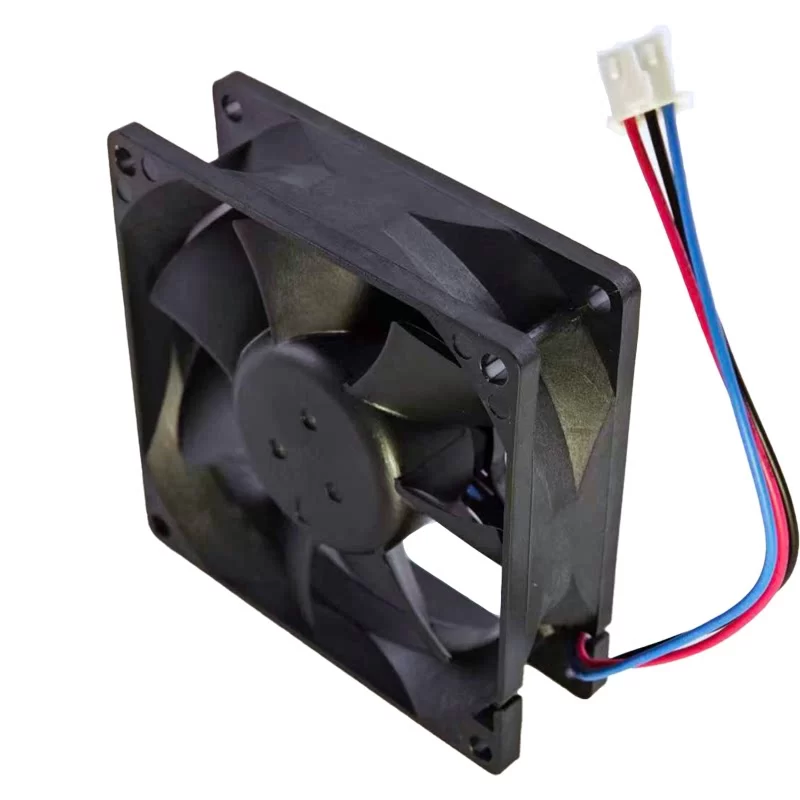

EFB0812EH-R00 Delta 12V 0.42A 80x80x25mm DC Axial Fan

Description

The Delta EFB0812EH-R00 is a high-performance 80 mm DC axial fan designed for intensive thermal management in server environments and industrial automation. Operating on a 12 VDC supply, this unit is characterized by a high-torque motor drawing 0.42 A, enabling it to maintain a stable speed of 5000 RPM under significant system backpressure. The -R00 specification features a dedicated three-wire configuration with an integrated Locked Rotor Sensor, providing a critical diagnostic signal for system safety monitoring. Built with a dual ball bearing system and UL 94V-0 flame-retardant materials, the EFB0812EH-R00 ensures long-term reliability and high airflow efficiency. Its robust construction and standardized 80 x 80 x 25.4 mm dimensions make it an ideal replacement and OEM component for mission-critical networking hardware and power supply cooling systems across an ambient temperature range of -10 °C to +70 °C.

EFB0812EH-R00 Fan Parameters
Model Number: EFB0812EH-R00
Manufacturer: Delta
Series: EFB Series
Type: DC Axial Fan
Size: 80 mm
Dimensions: 80 x 80 x 25 mm
Weight: 86 g
Bearing Type: Ball bearing
Nominal Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Power Consumption: 5.04 W
Nominal Current: 0.42 A
Speed: 5000 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 52.02 CFM (88.4 m³/h)
Actual Static Pressure: 8.00 mmH₂O (78.4 Pa)
Sound Pressure Level: 46.5 dB(A)
Motor Design: Brushless DC motor
Motor Protection: Locked rotor sensor (R00); Polarity protection
Technical Features: R00 Locked Rotor Signal (3-wire); Soft start
Insulation Class: Class A
Electrical Hookup: 3-wire lead wires (Red: +, Black: -, Blue: R00)
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Exhaust over struts
Impeller Material: Plastic (UL 94V-0)
Housing Material: Plastic (UL 94V-0)
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -10 – +70 °C
Service Life (L10 @ 40 °C): 70000 h
Standard Compliance: UL, TUV, CE
Approval Agency: UL, TUV, CSA

Application
The Delta EFB0812EH-R00 DC fan is primarily utilized in networking switches, telecommunications power rectifiers, high-density server chassis, and industrial workstation cooling systems.
