Description

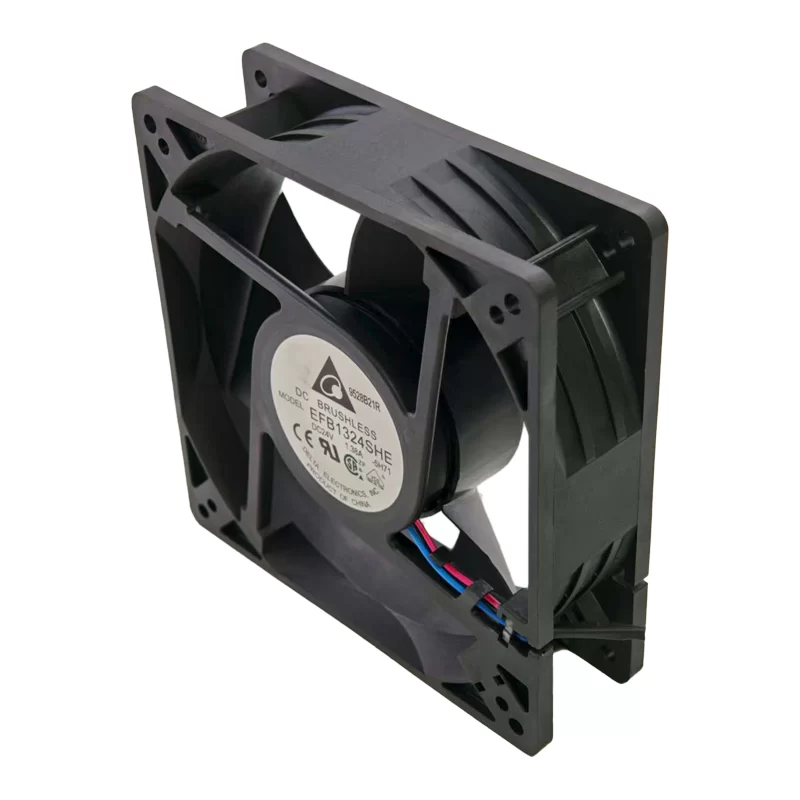

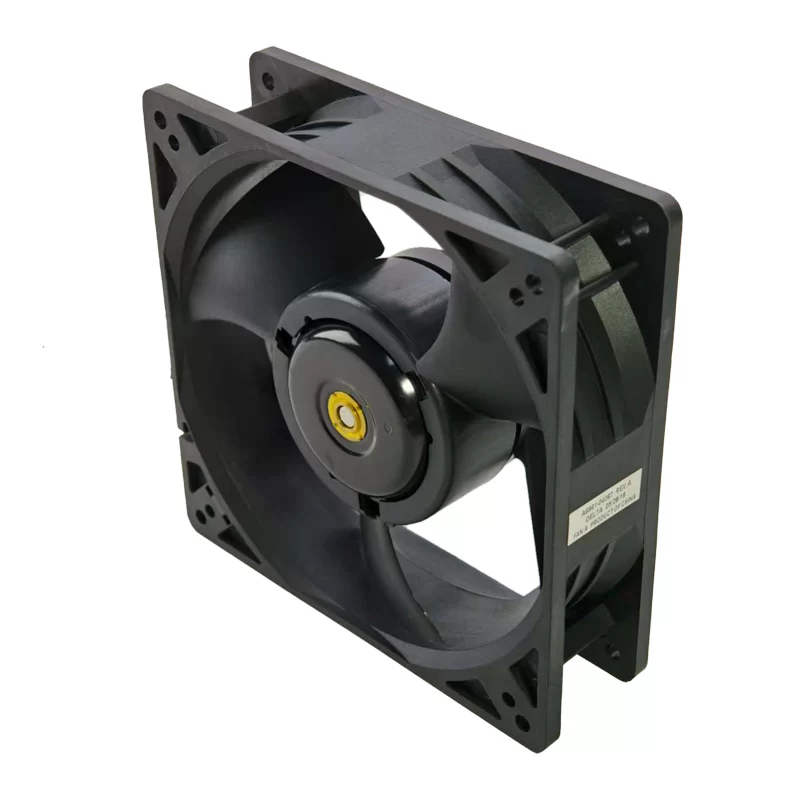

The Delta EFB1324SHE-5H71 is a DC Axial Fan with dimensions of 127x127x38mm, operating on 24VDC. It draws 1.38A of current and consumes 33.12W of power. This high-speed fan achieves 4600 RPM, generating a strong airflow of 200 CFM and a static pressure of 188.6 Pa. Featuring a durable ball bearing system and a 3-wire lead for a tachometer signal, it is a reliable cooling solution with a life expectancy of 70,000 hours at 40°C, making it suitable for high-performance computing and industrial applications.
EFB12038B24H Fan Parameters
Model: EFB1324SHE-5H71
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 127 x 127 x 38 mm
Rated Voltage: 24 VDC
Current Draw: 1.38 A
Power Input: 33.12 W
Fan Speed: 4600 RPM
Airflow: 200 CFM
Static Pressure: 188.6 Pa
Noise Level: 58.5 dB(A)
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Weight: 370 g
Termination: 3-wire lead
Application: High-performance computing, server cooling, network equipment, industrial machinery
