Description

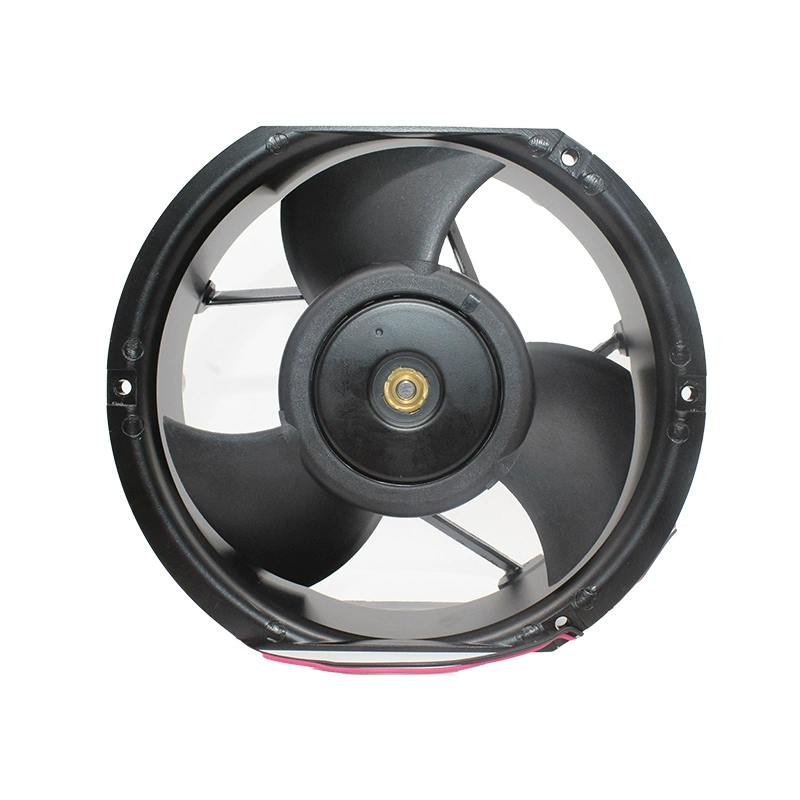

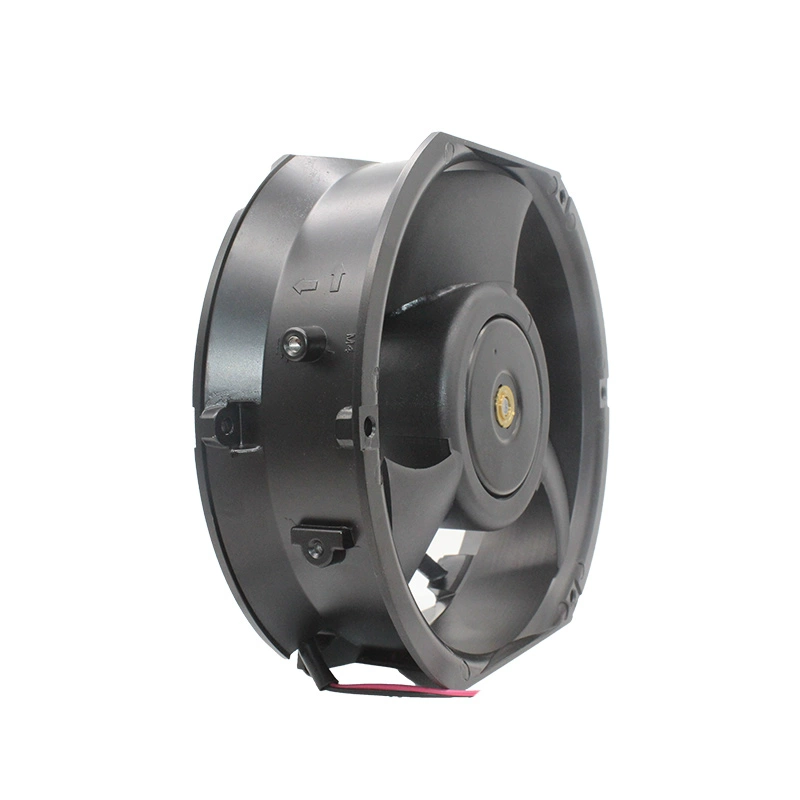

The Delta EFB1524SHG-78N is a robust 24V DC axial cooling fan manufactured by Delta Electronics, Inc., featuring dimensions of 172mm x 150mm x 51mm. Engineered for high-demand thermal management, this unit operates at a rated current of 2.1A, consuming 50.4W of power. It delivers a substantial airflow of 325 CFM at a rotational speed of 4300 RPM and generates a static pressure of 1.083 inch-H2O, effectively moving air through restrictive environments. Equipped with ball bearings, the fan ensures a long operational life of 70,000 to 80,000 hours at 40°C, while producing a noise level of 63.0 dBA. Its 2-wire lead configuration provides essential functionality, including auto-restart and polarity protection, making it a critical component for industrial and server applications requiring maximum airflow and sustained performance.
Model Number: EFB1524SHG-78N
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 172mm x 150mm x 51mm
Rated Voltage: 24V DC
Rated Current: 2.1A
Rated Power: 50.4W
Speed: 4300 RPM
Airflow: 325 CFM / 9.20 m³/min
Static Pressure: 1.083 inch-H2O / 270 Pa
Noise Level: 63.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 to 80,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Die-Cast Aluminum
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
