Description

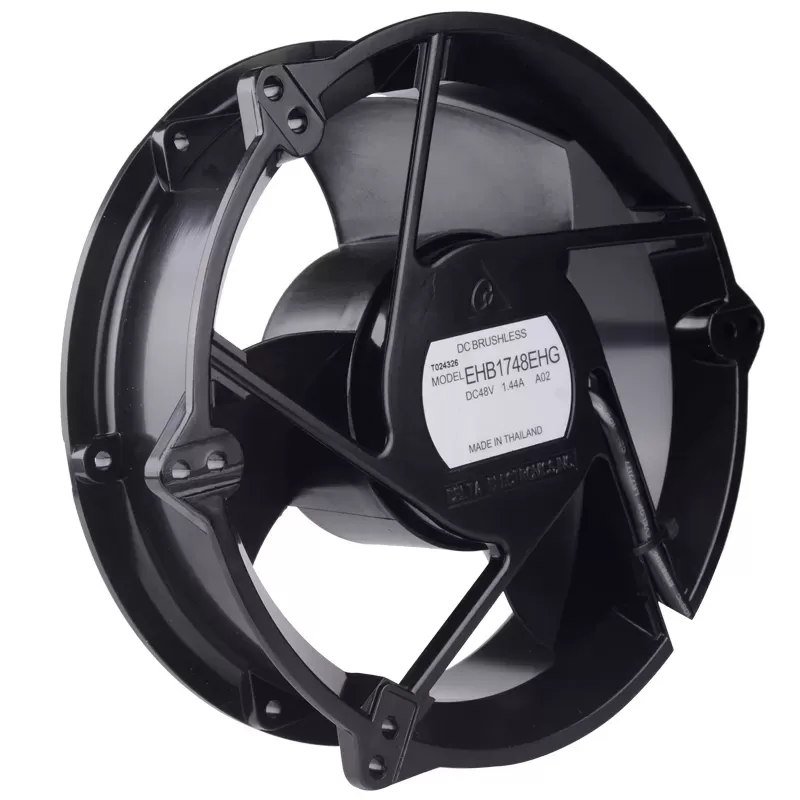

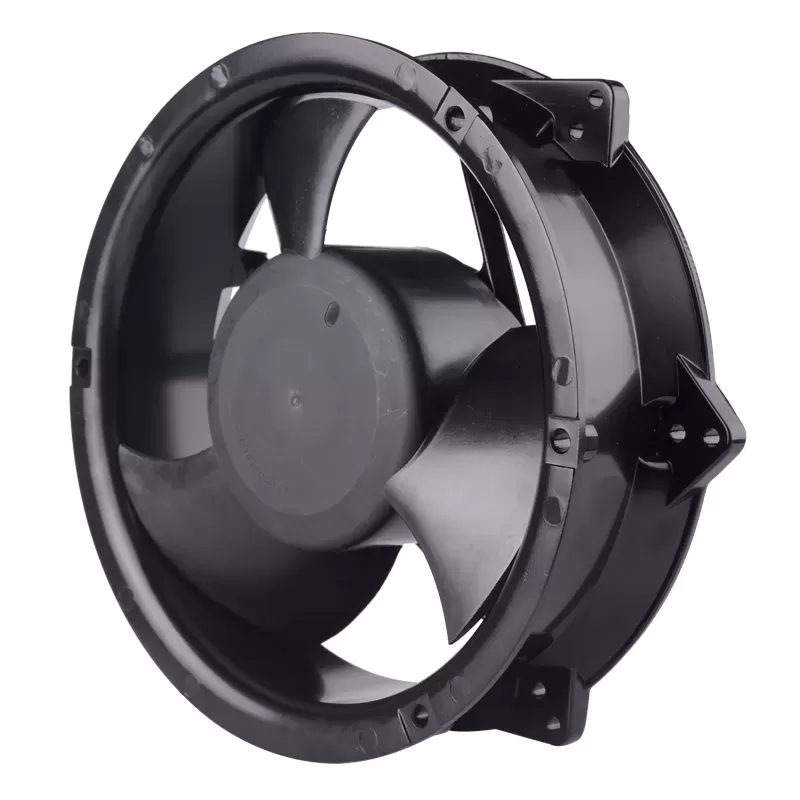

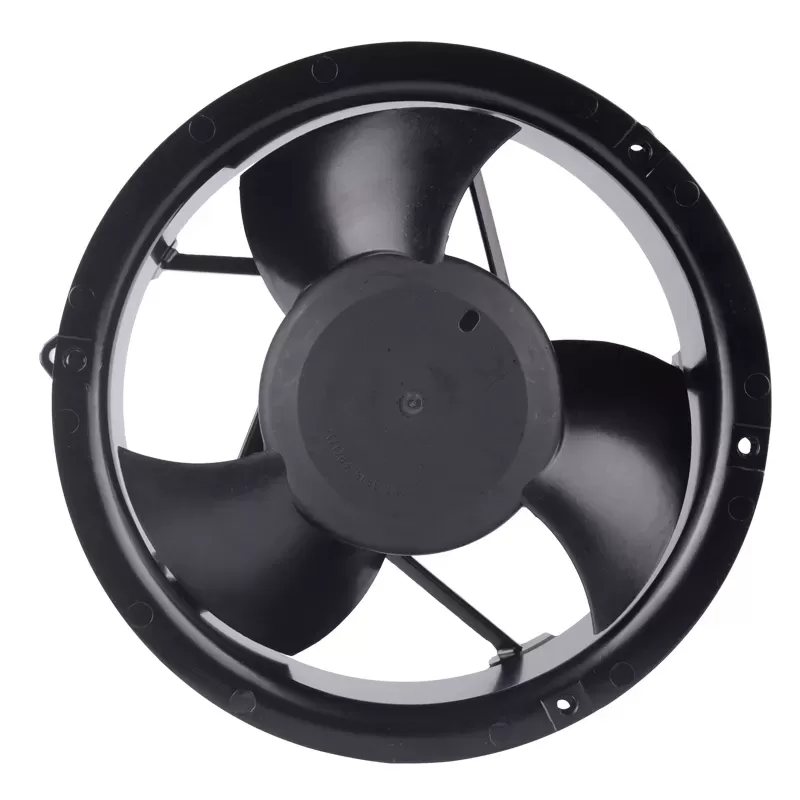

The Delta EHB1748EHG-A02 is a robust DC Axial Cooling Fan from Delta Electronics Inc., engineered for intensive thermal management in demanding applications. Operating on 48V DC power, it draws a significant 1.44A of current, resulting in a substantial 69.12W power consumption. Measuring 172mm x 172mm x 51mm, this fan is designed to fit standard large cooling slots in industrial and server hardware. It delivers powerful performance with a rotation speed of 5200 RPM, generating an impressive 394.22 CFM of airflow and a high static pressure of 44.73 mmH2O. It operates with a noise level of 66.0 dBA, indicative of its high-performance nature. Equipped with 4-wire leads, it provides advanced control capabilities including PWM for precise speed regulation and tachometer output for speed monitoring. Utilizing ball bearings for enhanced durability and long life, the fan features a plastic impeller within a die-cast aluminum frame, making it an ideal choice for critical systems demanding maximum cooling efficiency.
Model Number: EHB1748EHG-A02
Manufacturer: Delta Electronics Inc
Type: DC Axial Cooling Fan
Rated Voltage: 48V DC
Rated Current: 1.44A
Rated Power: 69.12W
Speed: 5200 RPM
Airflow: 394.22 CFM
Static Pressure: 44.73 mmH2O (1.761 inch-H2O)
Noise Level: 66.0 dBA

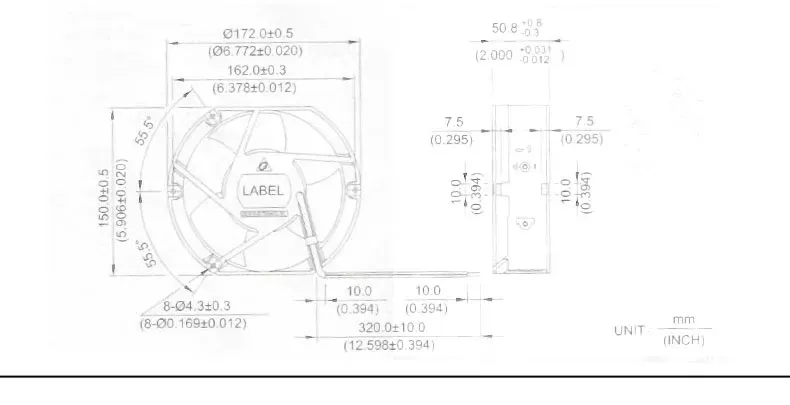

Dimensions: 172mm x 172mm x 51mm
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Body Material: Plastic Impeller / Die-cast Aluminum Frame
Features: PWM Control, Tachometer Output, High Airflow, High Static Pressure
