Description

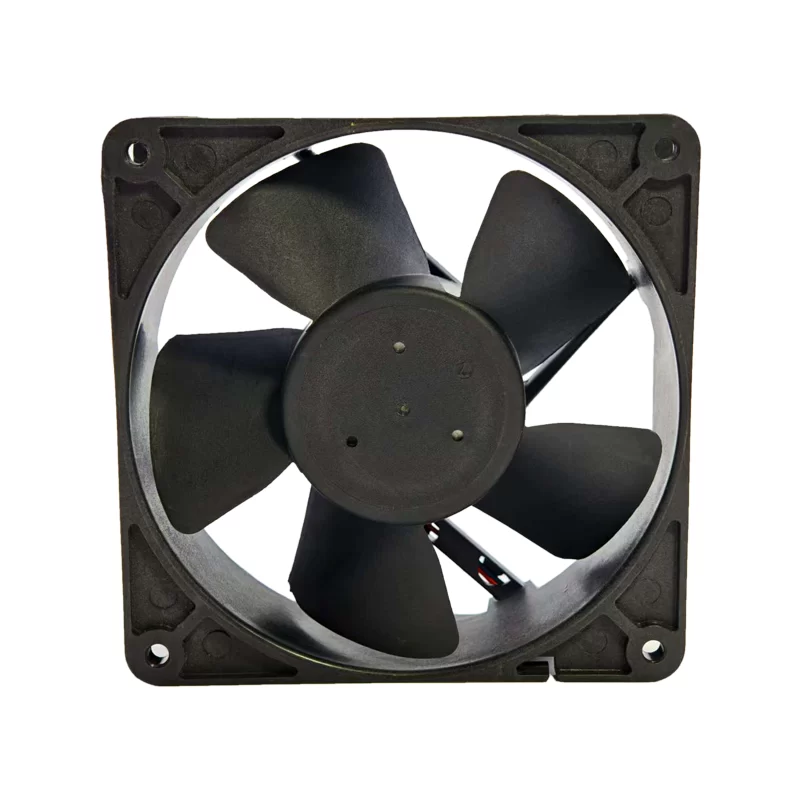

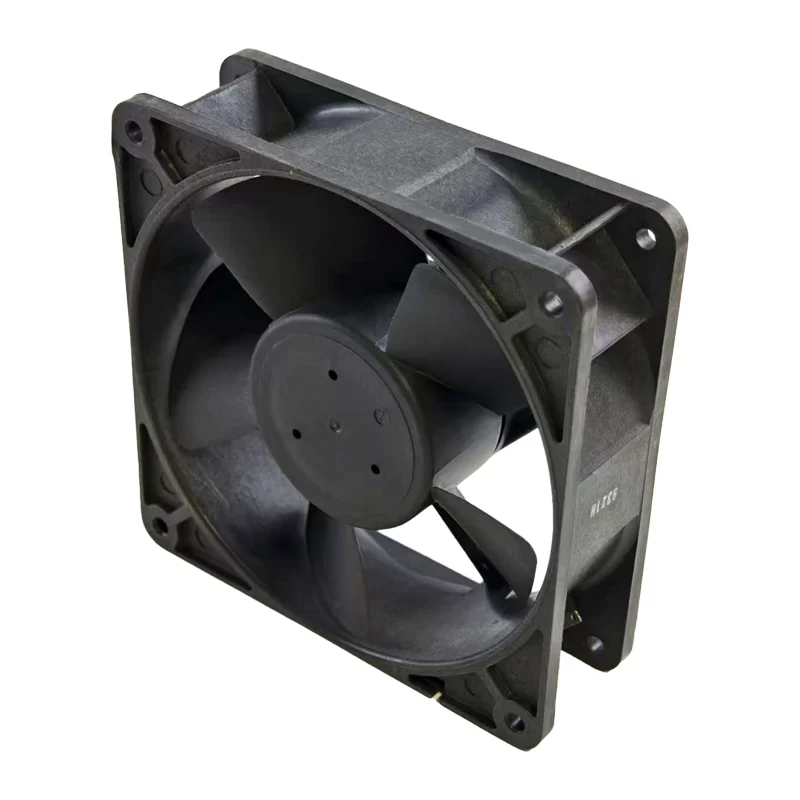

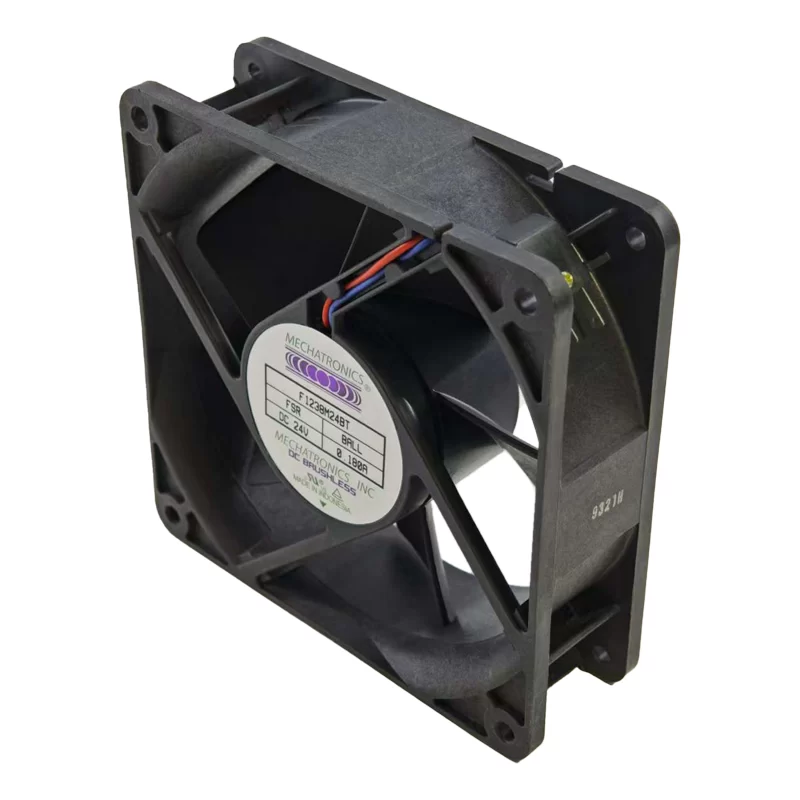

The Mechatronics F1238M24BT is a reliable 24VDC axial fan with dimensions of 119x119x38mm. It provides a substantial airflow of 105.0CFM (2.94m³/min) and is capable of generating 0.210inchH₂O (52.3Pa) of static pressure while operating at a speed of 2300RPM. This fan consumes 4.32W of power and draws 0.180A of current. It features ball bearings for high reliability and a long lifespan, and includes auto restart and locked rotor protection for safe operation. The housing and impeller are typically constructed of UL94V-0 PBT plastic. It is commonly used for cooling power supplies, server racks, network hardware, and other general-purpose electronic equipment.
F1238M24BT Fan Parameters
Manufacturer: Mechatronics
Model: F1238M24BT
Fan Type: DC Axial Fan (Tubeaxial)
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Current Rating: 0.180 A
Power Consumption: 4.32 W
Airflow: 105.0 CFM (2.94 m³/min)
Static Pressure: 0.210 inch H₂O (52.3 Pa)
Speed: 2300 RPM
Noise Level: 38.0 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Terminals
Features: Auto Restart, Locked Rotor Protection
Housing Material: Nonmetallic (UL94V-0 PBT Plastic)
Impeller Material: Nonmetallic (UL94V-0 PBT Plastic)
Operating Temperature: -10 °C ~ 70 °C
Weight: 0.243 kg (0.536 lb)
Approval Agency: CE, cUL, TUV, UL
Application: This Mechatronics fan is suitable for cooling servers, network hardware, and power supplies.
