Description

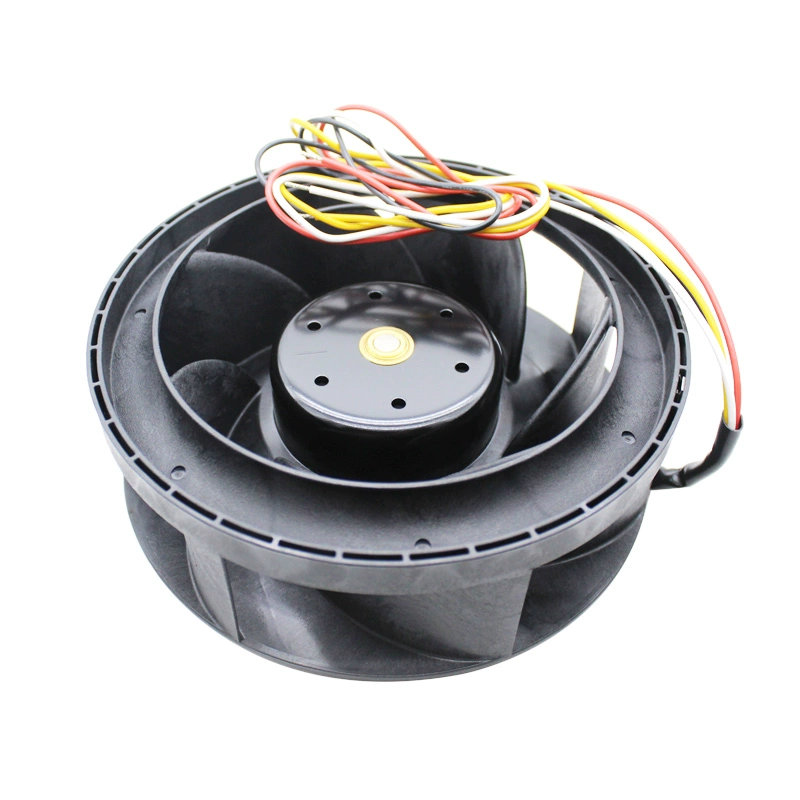

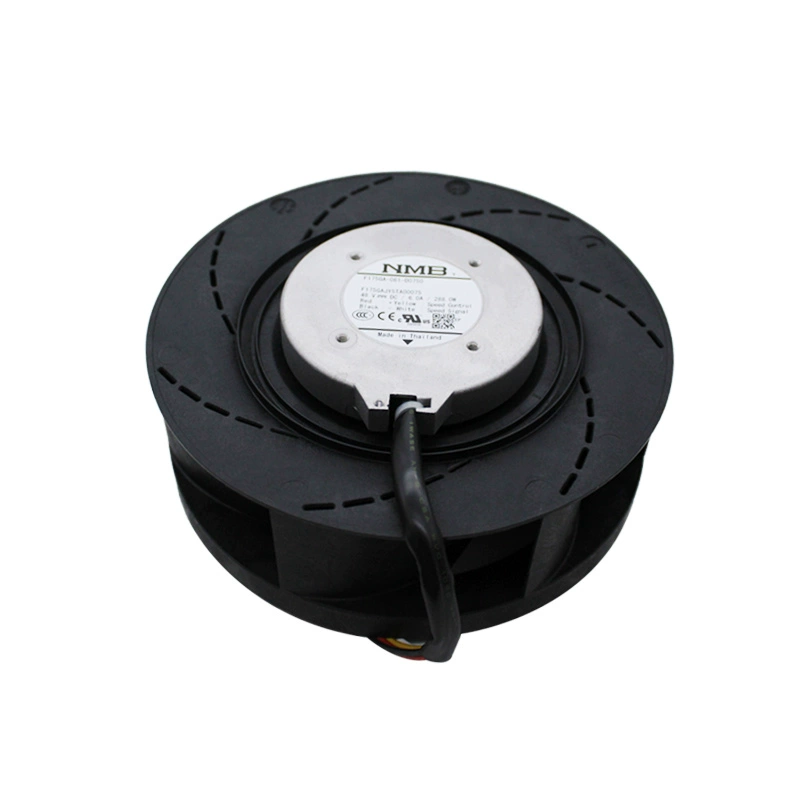

The NMB F175GA-061-D0750 is an exceptionally powerful DC Motorized Impeller from NMB Technologies, designed for extreme thermal management in demanding applications. Operating on 48V DC power, it draws a substantial 6.0A of current, resulting in a 288W power consumption. With dimensions of 175mm in diameter and 69mm in depth, this fan is engineered to provide very high airflow and static pressure, making it ideal for cooling high-power communication equipment, industrial inverters, and other systems with critical heat loads and restrictive airflow paths. Equipped with 4-wire leads, it features PWM control for precise speed adjustment and a speed sensor (tachometer) for monitoring. Utilizing durable ball bearings, it boasts a long life expectancy of 70,000 hours at 40°C. It’s designed to operate reliably within a temperature range of -30°C to 60°C and includes advanced features such as auto restart, overload protection, polarity protection, and IP68 ingress protection, ensuring reliability in harsh environments. Please note that specific performance metrics such as speed, airflow, static pressure, and noise level for a 6.0A variant of this precise model are not consistently available in general documentation.
Model Number: F175GA-061-D0750
Manufacturer: NMB Technologies
Type: DC Centrifugal Blower
Rated Voltage: 48V DC
Operating Voltage Range: 36V to 54V DC
Rated Current: 6.0A
Rated Power: 288W
Dimensions: 175mm (Diameter) x 69mm (Depth)
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Operating Temperature: -30°C to 60°C
Frame Material: Aluminum
Impeller Material: Plastic
Features: Auto Restart, PWM Control, Speed Sensor (Tachometer), IP68 Ingress Protection, Overload Protection, Polarity Protection
