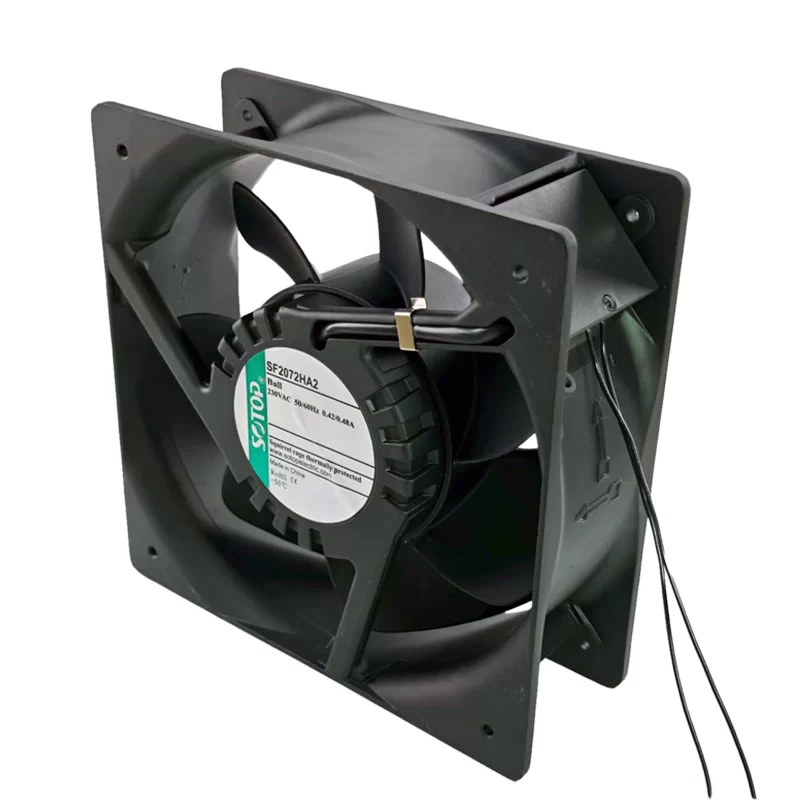

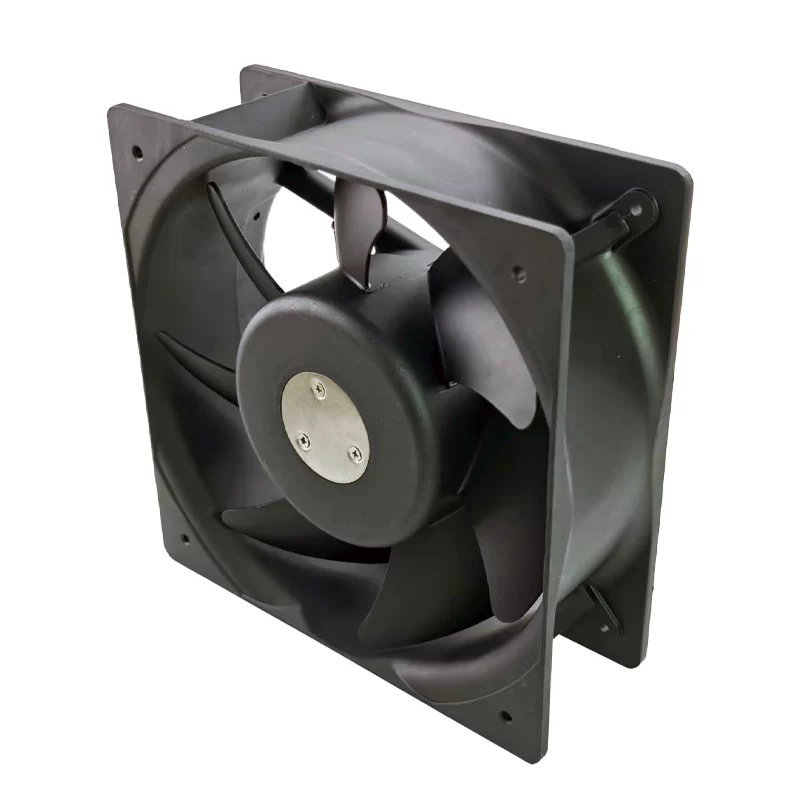

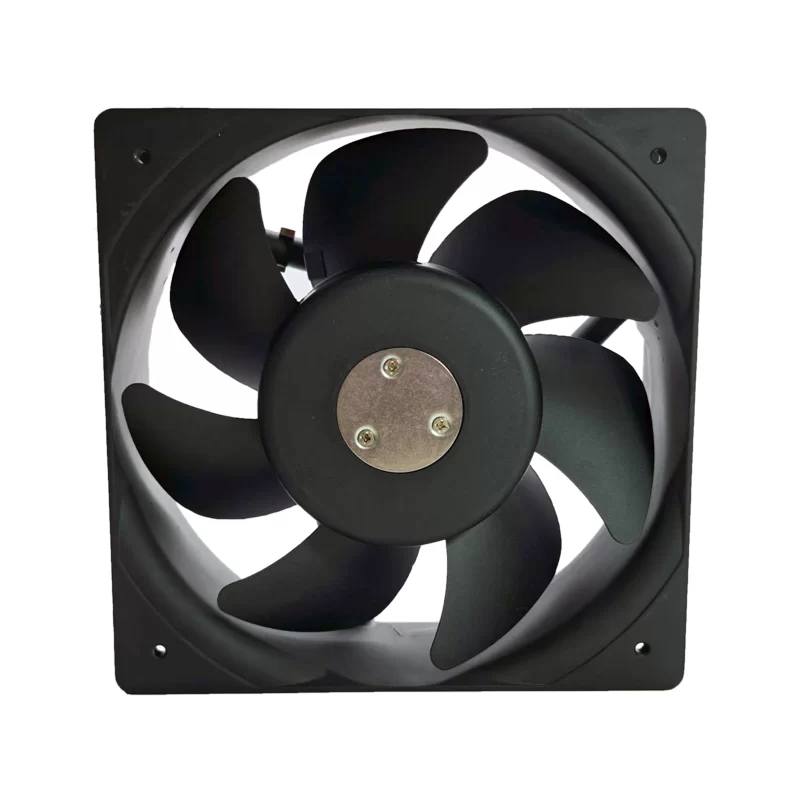

F2072HA2 SOTOP 230V AC Axial Fan

Description

The SOTOP SF2072HA2 is a 230VAC Axial Fan with dimensions of 206x206x72mm. Designed for operation at 50/60Hz, its performance varies between frequencies. At 50Hz, it has a rated current of 0.42A and a power consumption of 97W, achieving a speed of 2900RPM, and delivering an airflow of 1665.0m³/h (980CFM), with a noise level of 69dB(A). At 60Hz, it has a rated current of 0.48A and a power consumption of 115W, reaching a speed of 3400RPM, providing an airflow of 2038.8m³/h (1200CFM), with a noise level of 72dB(A). It is designed for robust cooling applications where specific performance characteristics are required.

SF2072HA2 Fan Parameters
Model: SF2072HA2
Manufacturer: SOTOP
Type: AC Axial Fan
Dimensions: 206 x 206 x 72 mm
Nominal Voltage: 230 V AC
Frequency: 50/60 Hz
Rated Current: 0.42 A (50 Hz), 0.48 A (60 Hz)
Power Consumption: 97 W (50 Hz), 115 W (60 Hz)
Speed: 2900 RPM (50 Hz), 3400 RPM (60 Hz)
Airflow: 1665.0 m³/h (980 CFM) (50 Hz), 2038.8 m³/h (1200 CFM) (60 Hz)
Noise Level: 69 dB(A) (50 Hz), 72 dB(A) (60 Hz)
Weight: 2.5 kg
Termination: 2-wire leads
Application: Suitable for industrial cooling and ventilation systems where specified performance is critical.
