Description

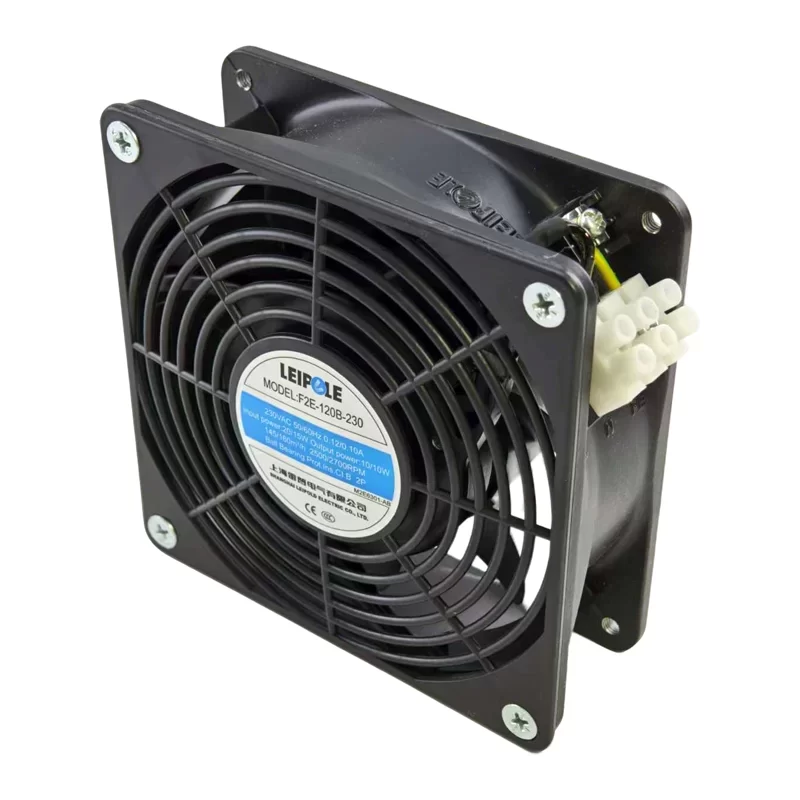

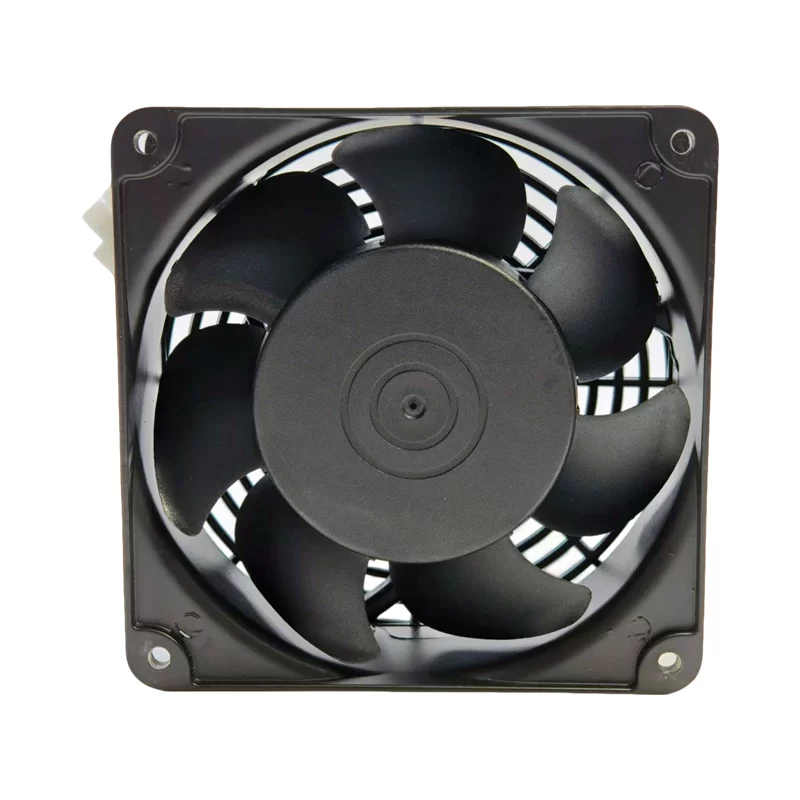

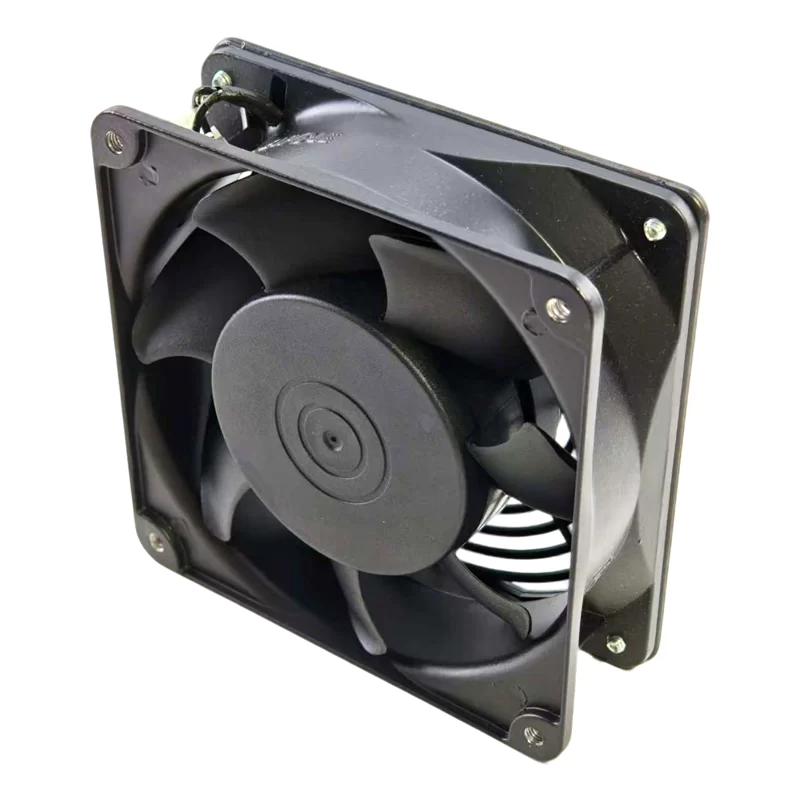

The LEIPOLE F2E-120B-230 is an AC axial fan with dimensions of 120 x 120 x 38 mm and a weight of 570 g. It operates on 230V AC at both 50/60 Hz. At 50 Hz, it draws 0.12 A and consumes 20 W, delivering an airflow of 85.3 CFM (145 m³/h). At 60 Hz, it draws 0.10 A, consumes 15 W, and provides an airflow of 94.2 CFM (160 m³/h). The fan operates at 2500 RPM (50 Hz) or 2700 RPM (60 Hz) with a noise level of 48/51 dB(A). It features a reliable ball bearing system and comes with two-wire leads.
F2E-120B-230 Fan Parameters
Manufacturer: LEIPOLE
Model: F2E-120B-230
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Current Rating: 0.12 A / 0.10 A
Power Consumption: 20 W / 15 W
Airflow: 85.3 CFM (145 m³/h) / 94.2 CFM (160 m³/h)
Static Pressure: 0.30 inch H₂O (75 Pa) / 0.36 inch H₂O (90 Pa)
Speed: 2500 RPM / 2700 RPM
Noise Level: 48 dB(A) / 51 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Aluminum
Impeller Material: Plastic (PA)
Operating Temperature: -20 °C ~ 60 °C
Application
The F2E-120B-230 is designed for applications requiring a balance of airflow and durability. It is commonly used in industrial equipment, machinery cooling, ventilation systems, and general air circulation where an efficient AC fan is needed.
