Description

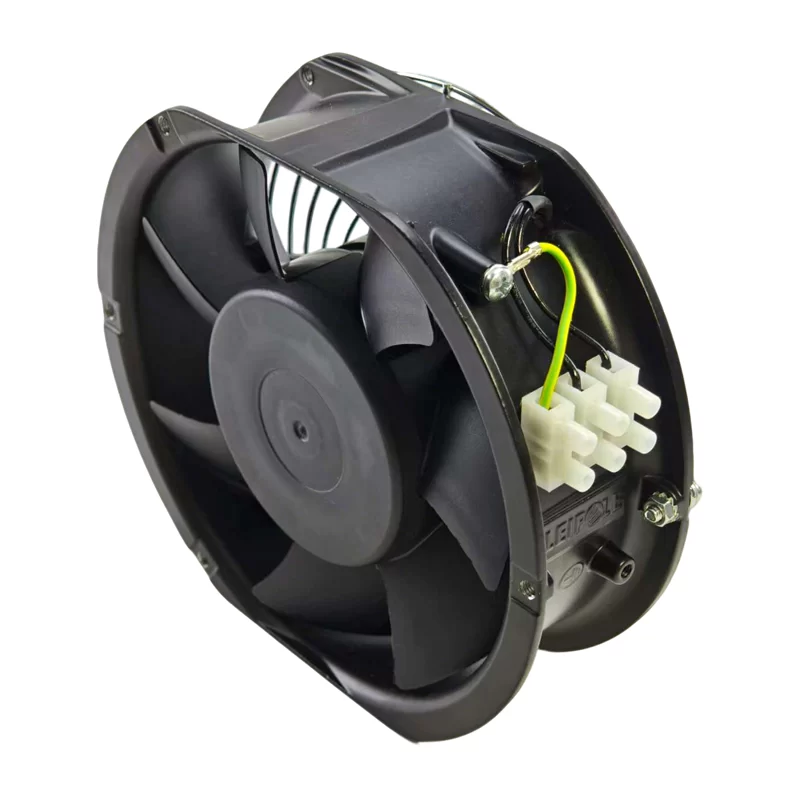

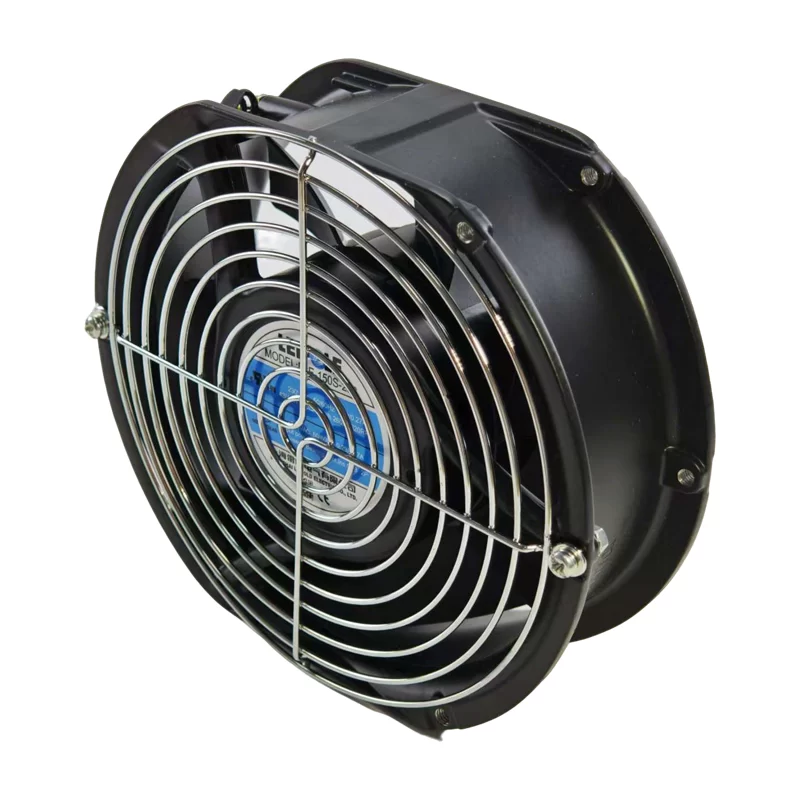

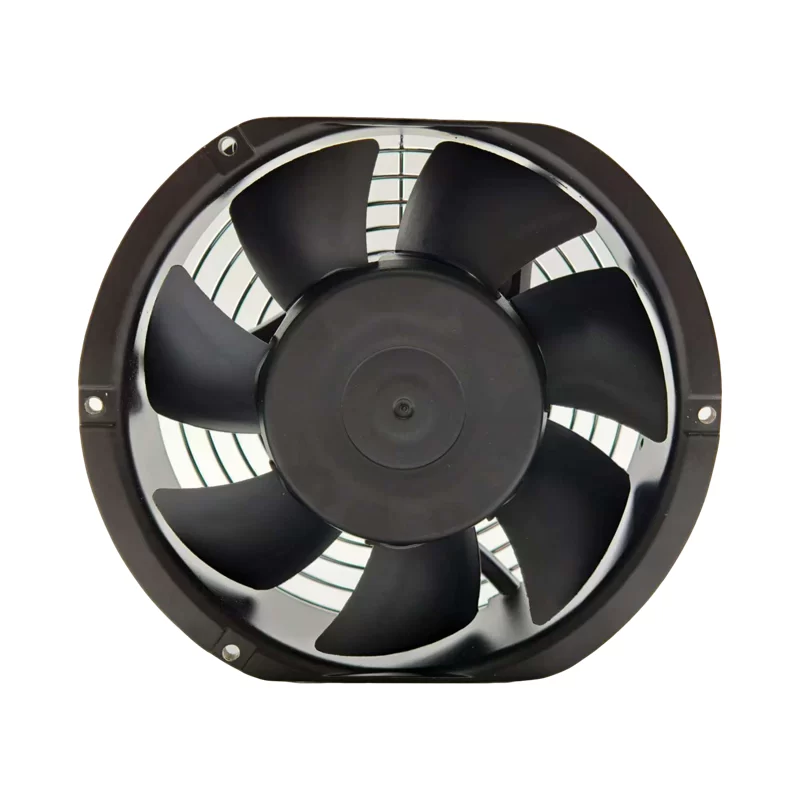

The LEIPOLE F2E-150S-230 is a heavy-duty 230VAC axial fan with dimensions of 172x150x51mm. It is designed for robust cooling in various industrial and commercial applications, providing 380m³/h (223.7CFM) of airflow at a speed of 2640-2650RPM. The fan consumes 40W of power and draws 0.29A of current. It is built with a durable die-cast aluminum frame and a plastic impeller. It uses ball bearings for enhanced longevity and is terminated with two wire leads. It is commonly used for cooling power supplies, control cabinets, and HVAC systems.
F2E-150S-230 Fan Parameters
Manufacturer: LEIPOLE
Model: F2E-150S-230
Fan Type: AC Axial Fan
Dimensions: 172 x 150 x 51 mm
Rated Voltage: 230 VAC
Current Rating: 0.29 A
Power Consumption: 40 W
Airflow: 380 m³/h (223.7 CFM)
Speed: 2640-2650 RPM
Noise Level: 58 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Plastic
Weight: 900 g
Application: This LEIPOLE AC axial fan is suitable for cooling power supplies, control cabinets, and HVAC systems.
