F2E-162B-100 LINKWELL 100V AC Axial Fan

Description

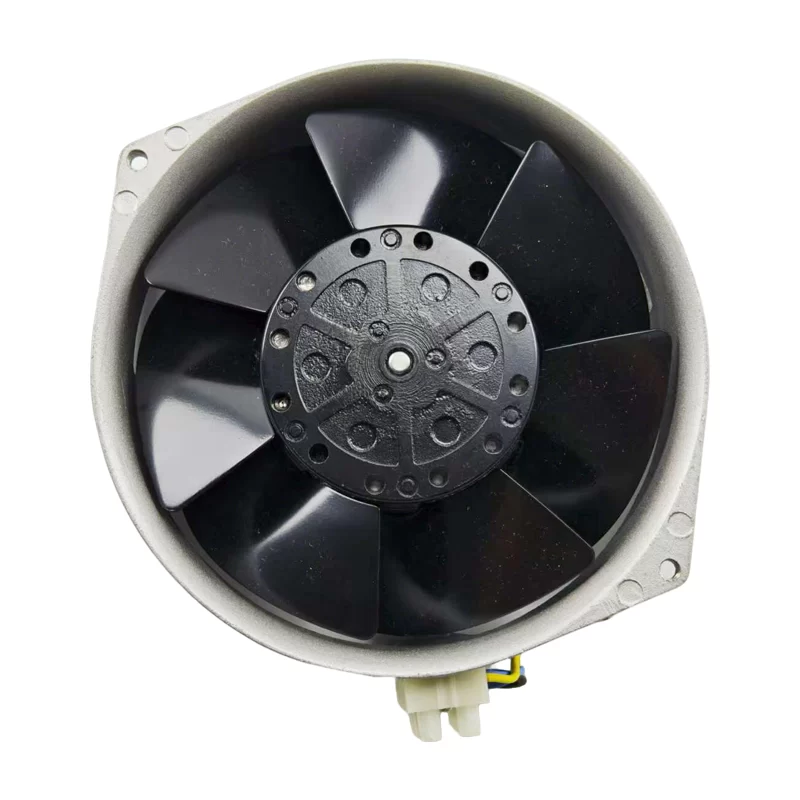

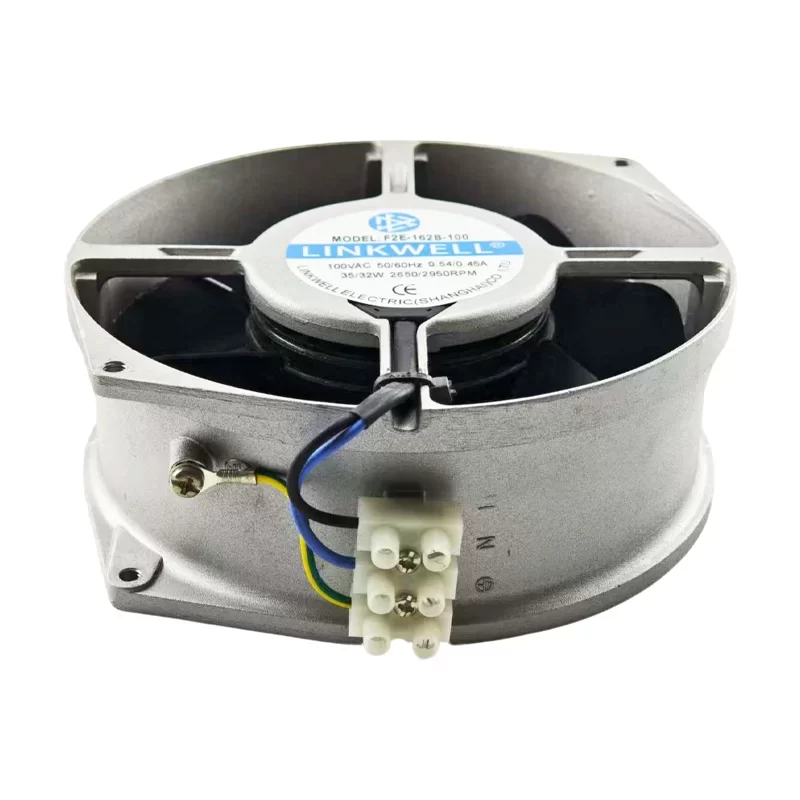

The LINKWELL F2E-162B-100 is an AC axial fan designed for robust cooling applications. This fan measures 172 x 162 x 51 mm and operates on 100V AC at either 50 Hz or 60 Hz. At 50 Hz, it draws 0.54 A and consumes 35 W, running at 2650 RPM. At 60 Hz, it draws 0.45 A and consumes 32 W, operating at 2950 RPM. The fan features a durable metal housing and a plastic impeller, connected via two-wire leads.

F2E-162B-100 Fan Parameters
Manufacturer: LINKWELL
Model: F2E-162B-100
Fan Type: AC Axial Fan
Dimensions: 172 x 162 x 51 mm
Rated Voltage: 100V AC
Frequency: 50/60 Hz
Current Rating: 0.54 A (50 Hz) / 0.45 A (60 Hz)
Power Consumption: 35 W (50 Hz) / 32 W (60 Hz)
Speed: 2650 RPM (50 Hz) / 2950 RPM (60 Hz)
Termination: 2-Wire Leads
Housing Material: Metal
Impeller Material: Plastic

Application
The F2E-162B-100 fan is suitable for applications requiring efficient air circulation in various industrial and electronic equipment.
