F2E-162B-230 LINKWELL 230V AC Axial Fan

Description

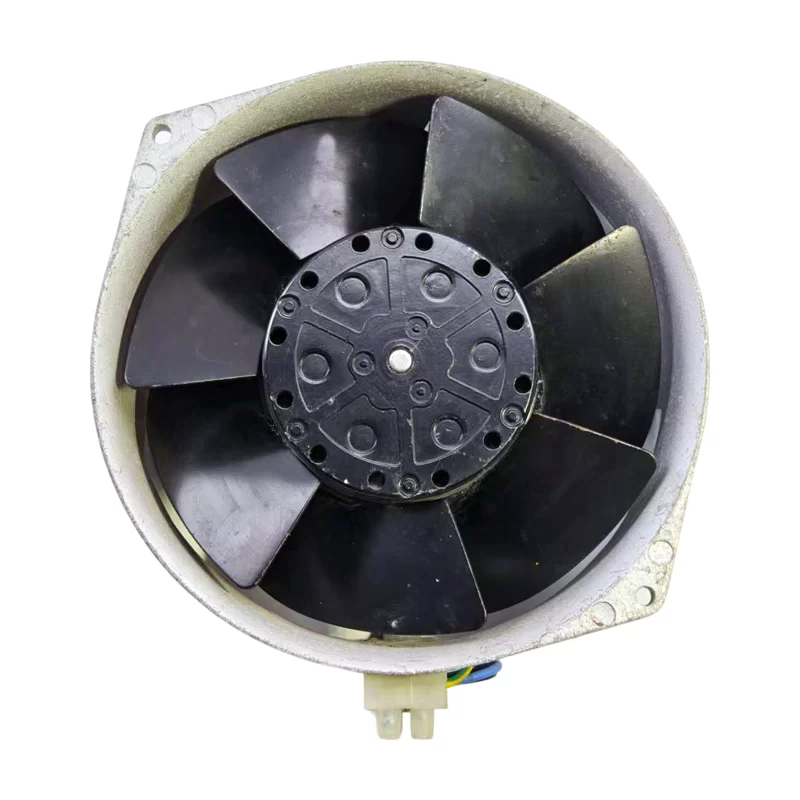

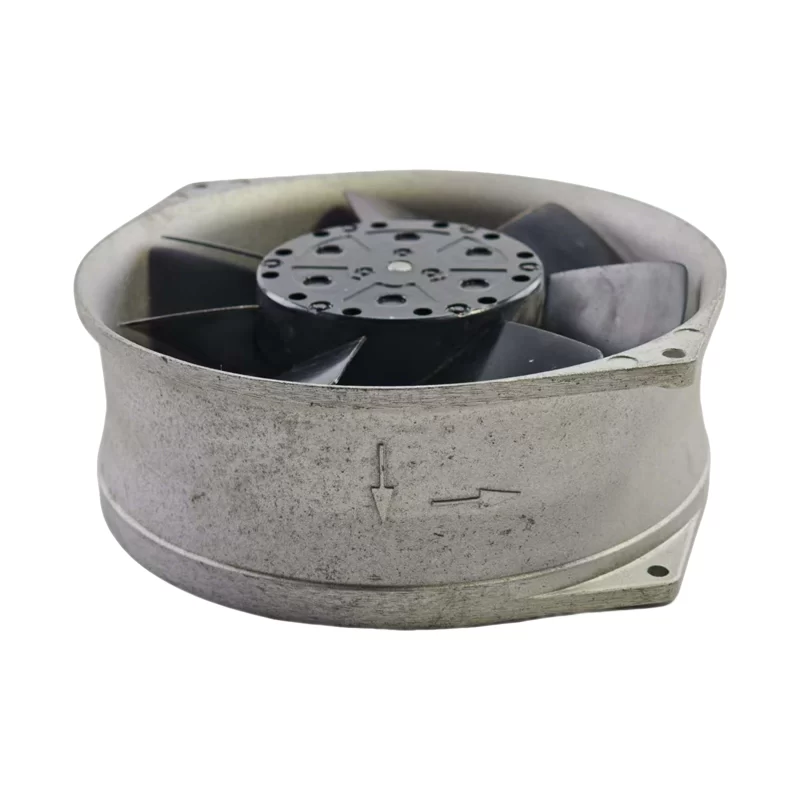

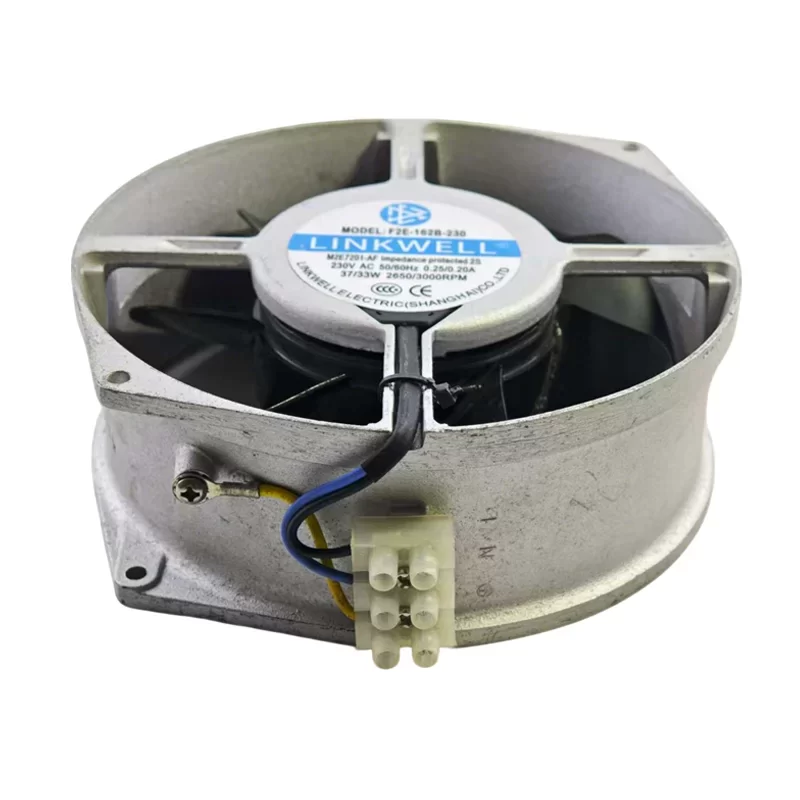

The LINKWELL F2E-162B-230 is an AC axial fan measuring 172 x 162 x 51 mm and weighing 1100 g. It operates on 230V AC at both 50/60 Hz. At 50 Hz, it draws 0.25 A and consumes 37 W, providing an airflow of 191.3 CFM (325 m³/h). At 60 Hz, the fan draws 0.20 A, consumes 33 W, and delivers 223.7 CFM (380 m³/h). The fan runs at 2650 RPM (50 Hz) or 3000 RPM (60 Hz) with a low noise level of 48/52 dB(A). It is constructed with a durable aluminum housing and uses ball bearings for enhanced longevity.

F2E-162B-230 Fan Parameters
Manufacturer: LINKWELL
Model: F2E-162B-230
Fan Type: AC Axial Fan
Dimensions: 172 x 162 x 51 mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Current Rating: 0.25 A / 0.20 A
Power Consumption: 37 W / 33 W
Airflow: 191.3 CFM (325 m³/h) / 223.7 CFM (380 m³/h)
Static Pressure: 0.38 inch H₂O (95 Pa) / 0.47 inch H₂O (117 Pa)
Speed: 2650 RPM / 3000 RPM
Noise Level: 48 dB(A) / 52 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Aluminum
Impeller Material: Plastic (PA)
Operating Temperature: -20 °C ~ 60 °C
Weight: 1100 g

Application
The F2E-162B-230 is a powerful AC fan suitable for applications requiring high airflow and durability. It is commonly used in industrial control systems, power electronics, HVAC systems, and ventilation units.
