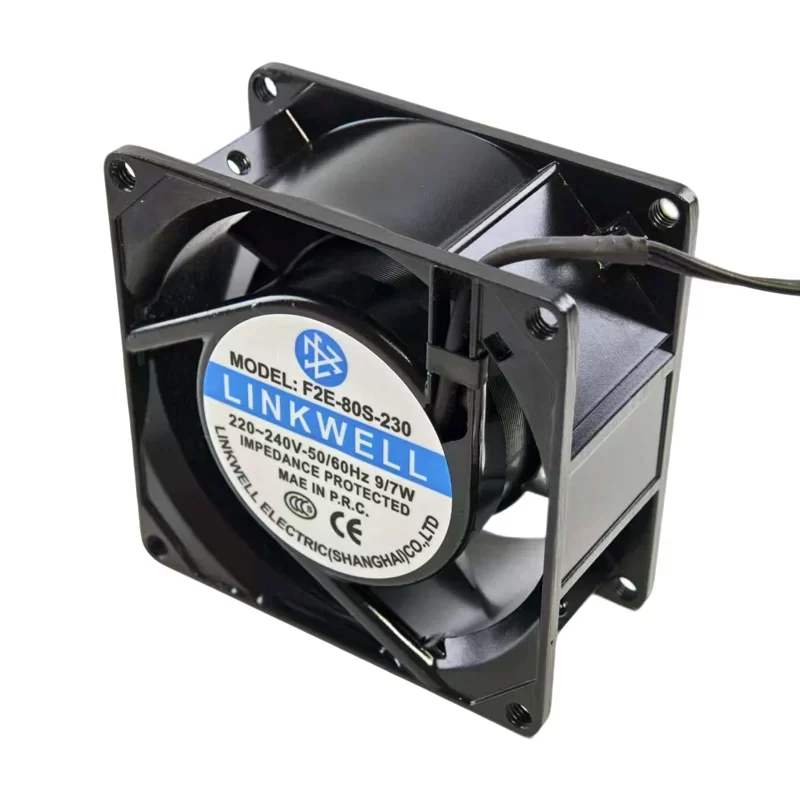

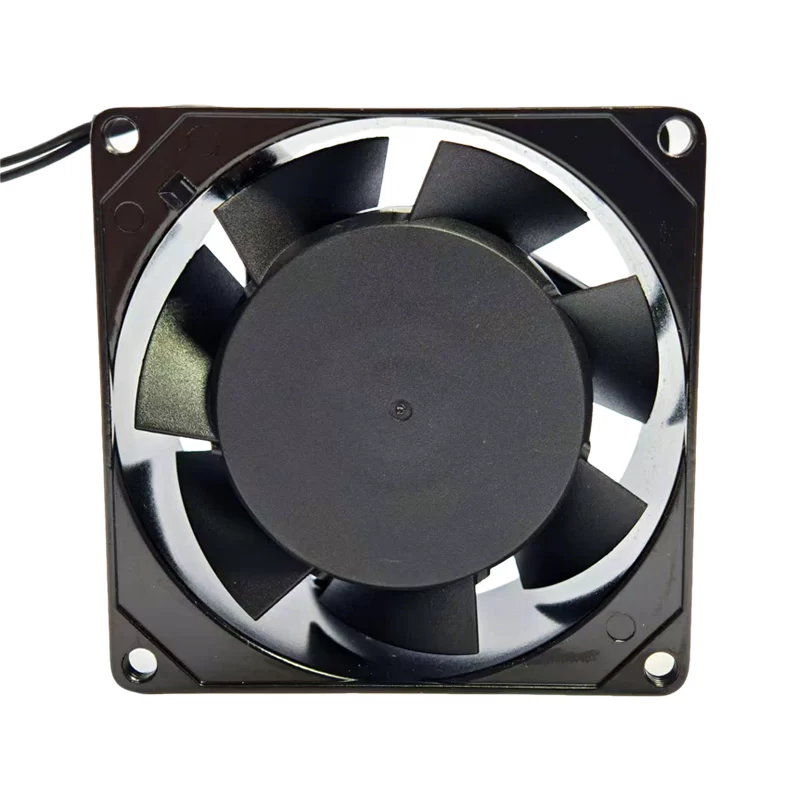

F2E-80S-230 LINKWELL 220-240V AC Axial Fan

Description

The LINKWELL F2E-80S-230 is an AC axial fan measuring 80 x 80 x 38 mm and weighing 220 g. It operates on 220-240V AC at both 50/60 Hz. At 50 Hz, it draws approximately 0.039 A and consumes 9 W, providing an airflow of 17 CFM (29 m³/h). At 60 Hz, the fan draws approximately 0.030 A, consumes 7 W, and delivers 20 CFM (34 m³/h). The fan runs at 2400 RPM (50 Hz) or 2700 RPM (60 Hz) with a noise level of 30/32 dB(A). It uses a sleeve bearing for quiet operation and features two-wire leads.

F2E-80S-230 Fan Parameters
Manufacturer: LINKWELL
Model: F2E-80S-230
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 220-240V AC
Frequency: 50/60 Hz
Current Rating: 0.039 A / 0.030 A
Power Consumption: 9 W / 7 W
Airflow: 17 CFM (29 m³/h) / 20 CFM (34 m³/h)
Static Pressure: 0.1 inch H₂O (25 Pa) / 0.09 inch H₂O (22 Pa)
Speed: 2400 RPM / 2700 RPM
Noise Level: 30 dB(A) / 32 dB(A)
Bearing Type: Sleeve Bearing
Termination: Two Wire Leads
Housing Material: Aluminum
Impeller Material: Plastic (PA)
Operating Temperature: -20 °C ~ 65 °C

Application
The F2E-80S-230 is suitable for various electronic and industrial applications requiring a compact cooling solution. Its low noise level makes it an ideal choice for control panels, electrical cabinets, and lighting fixtures where quiet and reliable operation is needed.
