Description

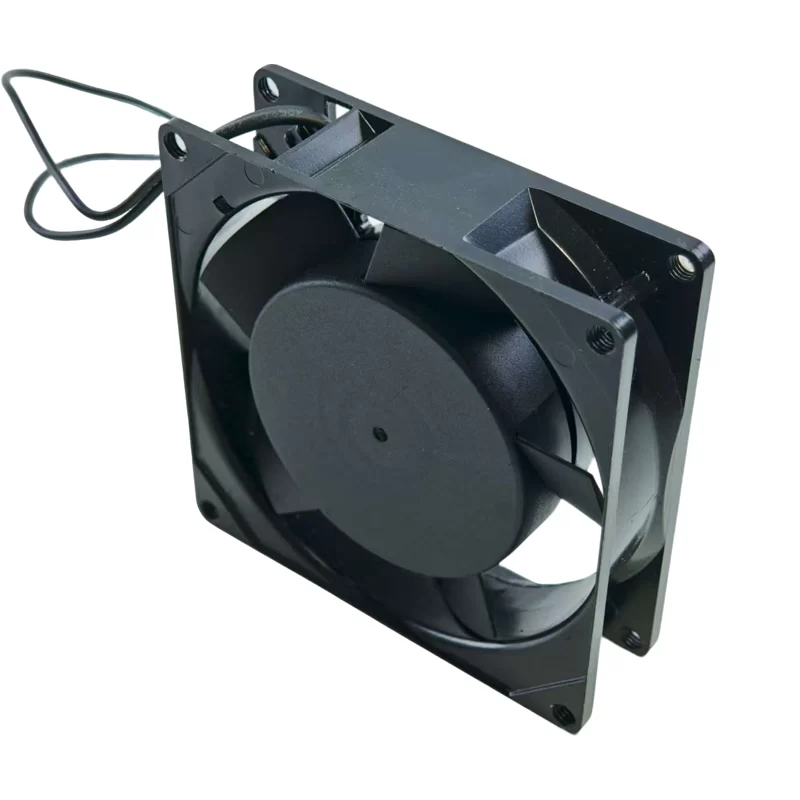

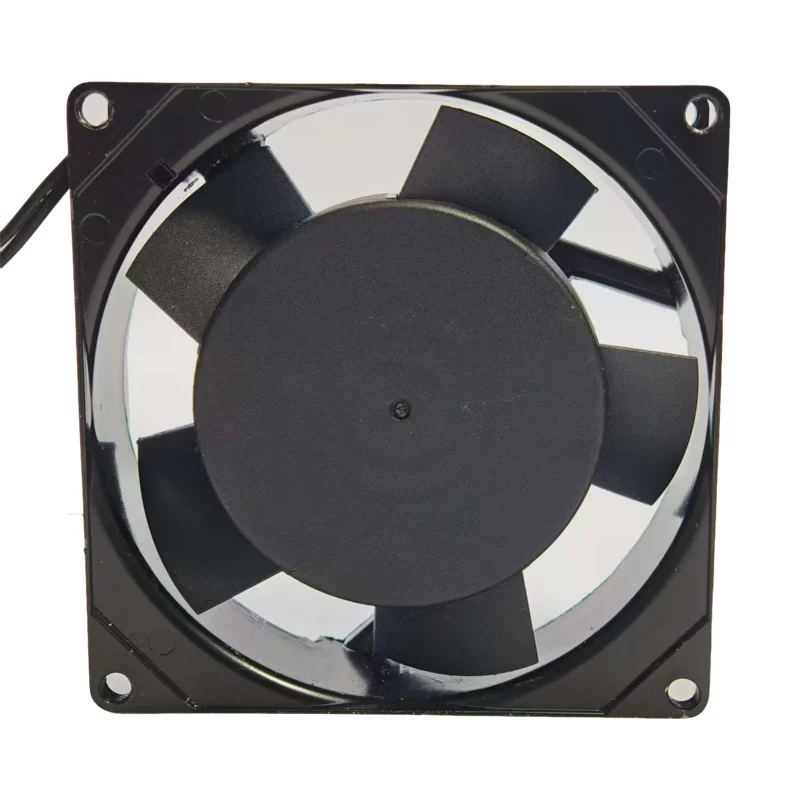

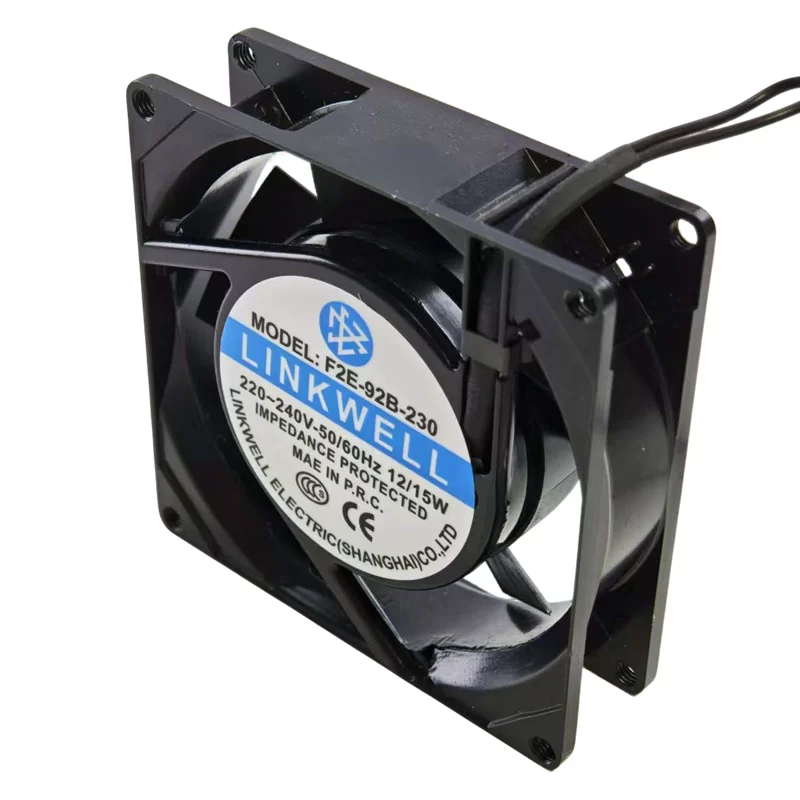

The LINKWELL F2E-92B-230 is a multi-frequency AC axial fan with dimensions of 92 x 92 x 25 mm. It is designed to operate on a voltage range of 220-240V at both 50 Hz and 60 Hz. The fan adjusts its performance based on the input frequency, providing effective cooling for a variety of applications. It connects via two wire leads.
F2E-92B-230 Fan Parameters
Manufacturer: LINKWELL
Model: F2E-92B-230
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 220-240V
Rated Frequency: 50/60 Hz
Current Rating: 0.07 A
Power Consumption: 12/15 W
Airflow: 30/36.5 CFM (51/62 m³/h)
Speed: 2300/2500 RPM
Noise Level: 32 dB(A)
Termination: Two Wire Leads
Application: The F2E-92B-230 is suitable for cooling in electrical panels, control boxes, and general industrial equipment.
