F2E-92S-115 LINKWELL 110-120V AC Axial Fan

Description

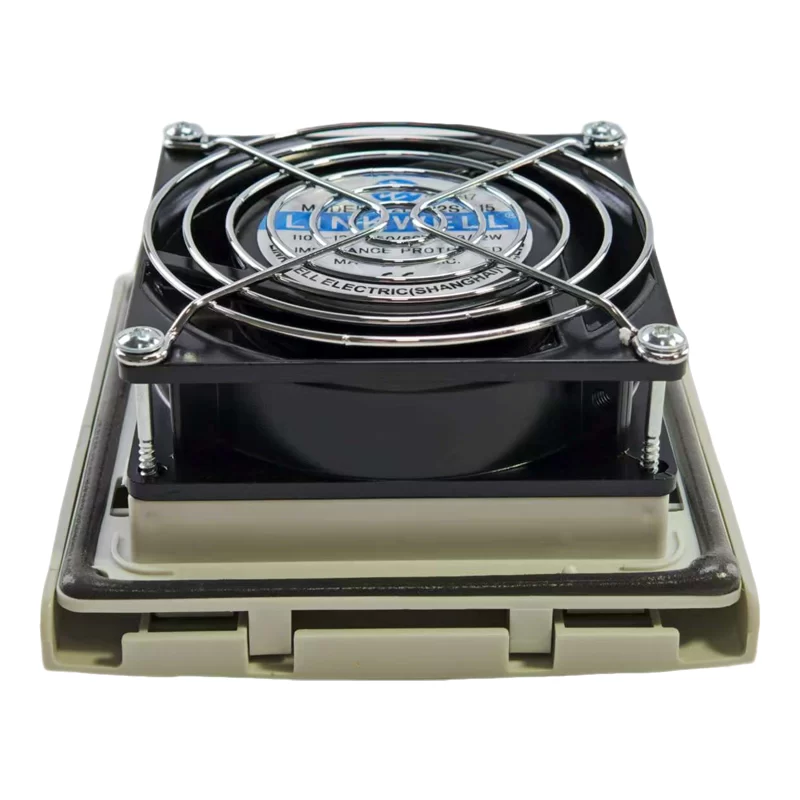

The LINKWELL F2E-92S-115 is an AC axial fan measuring 92 x 92 x 25 mm and weighing 330 g. It operates on 110-120V AC at both 50/60 Hz. At 50 Hz, it draws approximately 0.113 A and consumes 13 W, providing an airflow of 53 CFM (90 m³/h). At 60 Hz, the fan draws approximately 0.096 A, consumes 11 W, and delivers 61 CFM (104 m³/h). The fan runs at 2600 RPM (50 Hz) or 2800 RPM (60 Hz) with a noise level of 43/45 dB(A). It uses a ball bearing for enhanced longevity and reliability.

F2E-92S-115 Fan Parameters
Manufacturer: LINKWELL
Model: F2E-92S-115
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 110-120V AC
Frequency: 50/60 Hz
Current Rating: 0.113 A / 0.096 A
Power Consumption: 13 W / 11 W
Airflow: 53 CFM (90 m³/h) / 61 CFM (104 m³/h)
Static Pressure: 0.24 inch H₂O (60 Pa) / 0.26 inch H₂O (65 Pa)
Speed: 2600 RPM / 2800 RPM
Noise Level: 43 dB(A) / 45 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Aluminum
Impeller Material: Plastic (PA)
Operating Temperature: -20 °C ~ 65 °C

Application
The F2E-92S-115 is suitable for various applications requiring efficient and reliable cooling. It is commonly used in electronic equipment, ventilation systems, lighting fixtures, and control panels where a balance of airflow, noise, and durability is required.
