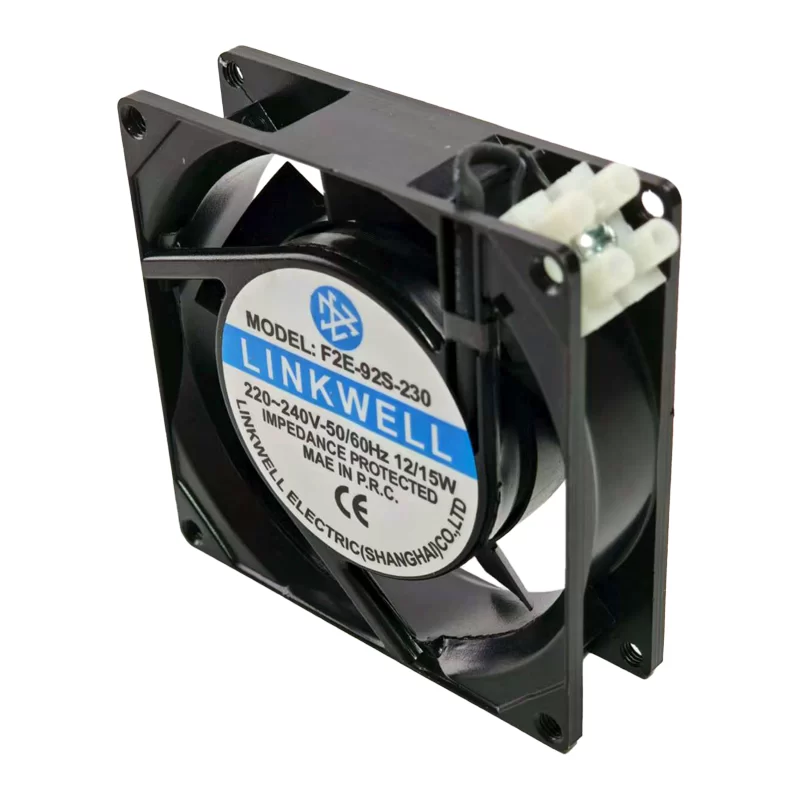

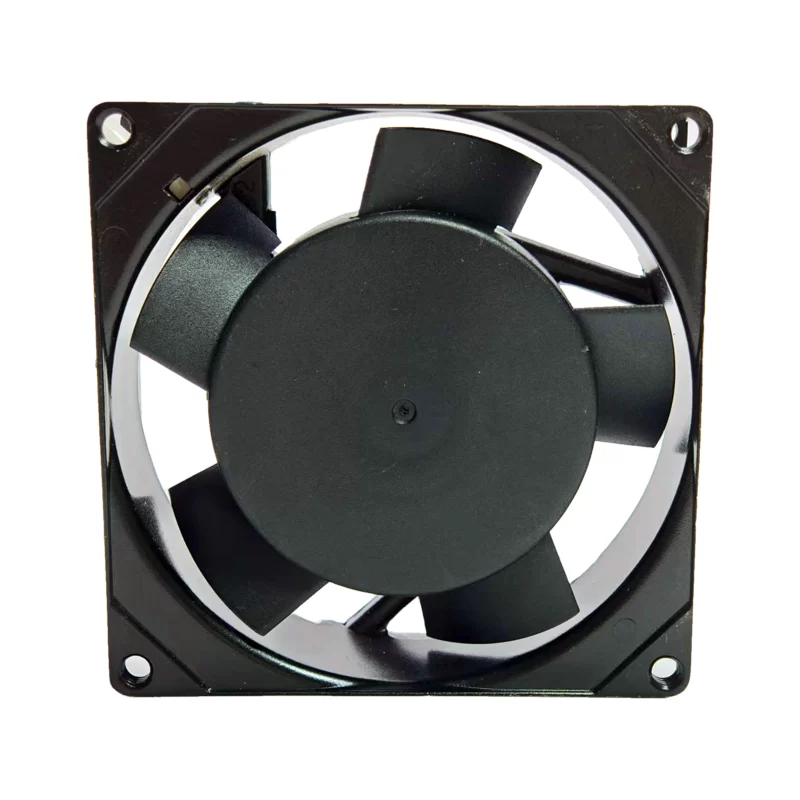

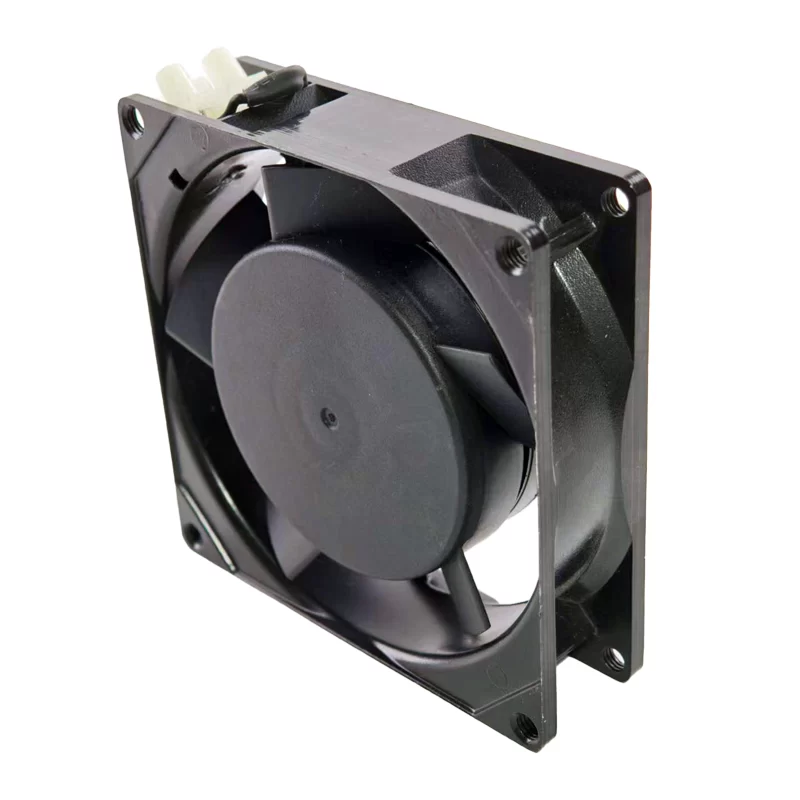

F2E-92S-230 LINKWELL 220-240V AC Axial Fan

Description

The LINKWELL F2E-92S-230 is an AC Axial Fan with dimensions of 92x92x25mm. It operates on 220-240VAC and is compatible with both 50Hz and 60Hz frequencies. At 50Hz, it draws 0.07A of current with a power consumption of 12W. At 60Hz, it has a power consumption of 15W. This fan delivers an airflow of 51/63m³/h and achieves speeds of 2300/2500RPM at 50/60Hz respectively, all while maintaining a quiet noise level of 32dBA. It features 2 wire leads for termination and operates efficiently within a temperature range of -10 to 60°C. It is IP44 rated, providing protection against solid objects larger than 1mm and water splashes from any direction. It’s well-suited for various electronic enclosures, control cabinets, and general ventilation applications where efficient and quiet AC airflow is needed in a compact size.

F2E-92S-230 Fan Parameters
Model: F2E-92S-230
Manufacturer: LINKWELL
Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 220-240 VAC
Frequency: 50/60 Hz
Current Draw (50Hz): 0.07 A
Power Consumption: 12/15 W
Airflow: 51/63 m³/h
Speed: 2300/2500 RPM
Noise: 32 dBA
Termination: 2 Wire Leads
Operating Temperature: -10 to 60 °C
IP Rating: IP44
Application: Electronic enclosures, control cabinets, general ventilation.
