Description

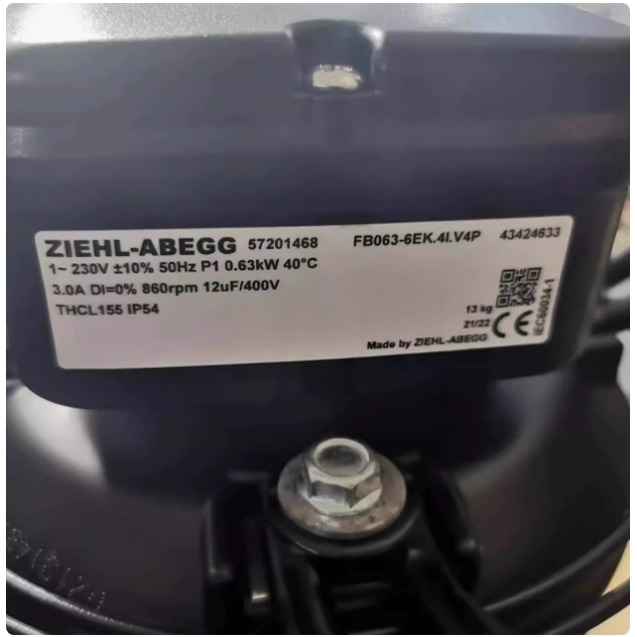

Manufacturer: ZIEHL-ABEGG
Model: FB063-6EK.4I.V4P
Product Type: Axial Fan
Motor Technology: AC External Rotor Motor
Impeller Diameter: 630 mm
Rated Voltage: 1~ 230V ±10%
Frequency: 50 Hz
Rated Power Input P1: 0.63 kW 630 W
Rated Current IN: 3.00 A
Rated Speed nN: 860 RPM
Starting Current IA: 5.50 A
Service Capacitor: 12.0 µF / 400V
Thermal Class: THCL155
Minimum Permitted Conveyor Temperature: -25 °C
Maximum Permitted Conveyor Temperature: 40 °C
Electrical Connection: Terminal box K62
Number of Blades: 4
Protection Class: IP54
Motor Protection: Thermal contact
Bearing Type: Ball bearing, with long-time lubrication
Material: Blades and Rotor made of Aluminium, Motor suspension powder-coated. Frame/Housing typically made of aluminized zinc plate or similar metal.
Weight: 12.80 kg
Airflow Direction: V Ventilating, air blows over the motor side
Conformity: ErP 2013, CE
Noise: Detailed noise data is usually shown as sound power level LWA5 on the performance curve.
