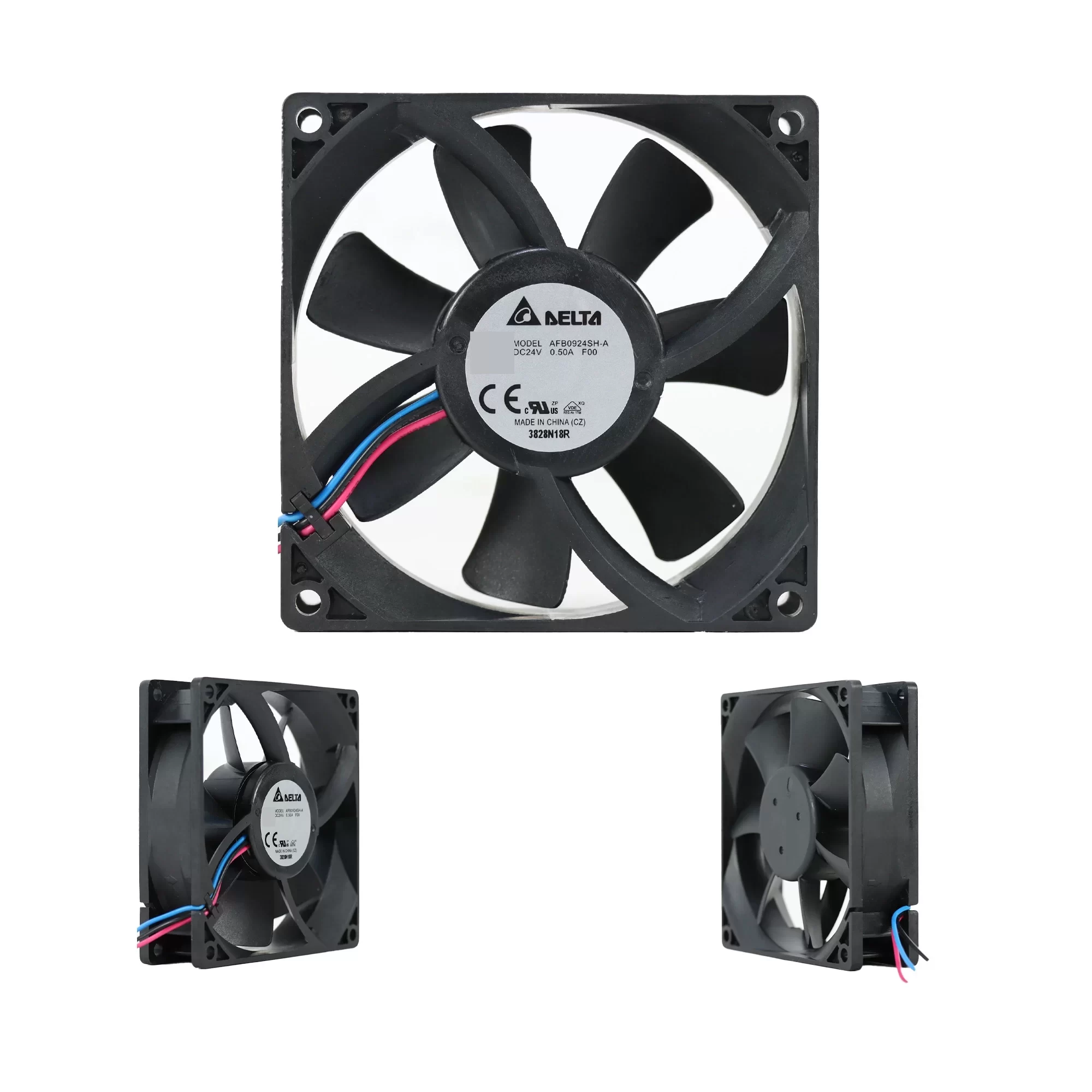

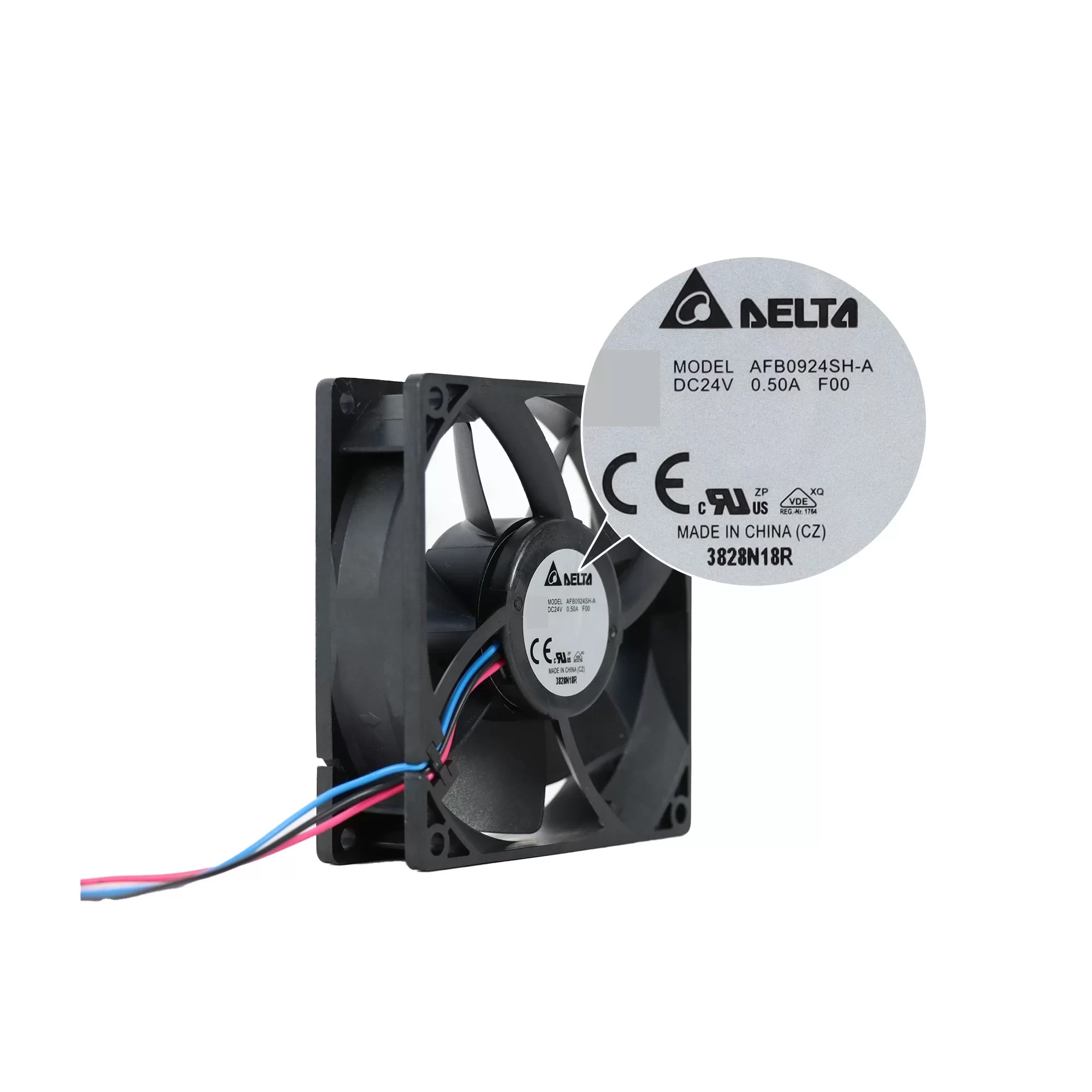

FB0924SH-AF00 Delta 24V DC Axial Fan

Description

The Delta AFB0924SH-AF00 is a high-performance 24 VDC axial fan with measuring 92x92x25mm. It is designed to provide substantial airflow, reaching 103 CFM (2.9 m³/min), and can generate up to 13 mmAq (0.526 inch H₂O) of static pressure, operating at a speed of 4800 RPM. This fan consumes 12 W of power and draws 0.50 A of current. It incorporates reliable ball bearings for extended life and features a plastic frame and impeller. For enhanced monitoring, it includes a speed sensor (tachometer) and connects via 3 wire leads. The fan operates effectively within a temperature range of -10 to 70°C and has a rated lifetime of 70,000 hours at 40°C. It is commonly used for thermal management in control panels, servers, industrial equipment, and various electronic enclosures where efficient DC cooling is critical.

AFB0924SH-AF00 Fan Parameters
Manufacturer: Delta
Model: AFB0924SH-AF00
Fan Type: DC Axial Fan (Tubeaxial)
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14 ~ 26.4 VDC
Current Rating: 0.50 A
Power Consumption: 12 W
Airflow: 103 CFM (2.9 m³/min)
Static Pressure: 13 mmAq (0.526 inch H₂O)
Speed: 4800 RPM
Noise Level: 53 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Locked Rotor Protection, Speed Sensor (Tachometer)
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 ~ 70°C
Lifetime @ Temp: 70,000 Hours @ 40°C
Weight: 0.121 kg
Approval Agency: CE, CSA, UL, VDE
Application: This Delta DC axial fan is suitable for thermal management in control panels, servers, industrial equipment, and various electronic enclosures where efficient DC cooling is critical.
