Description

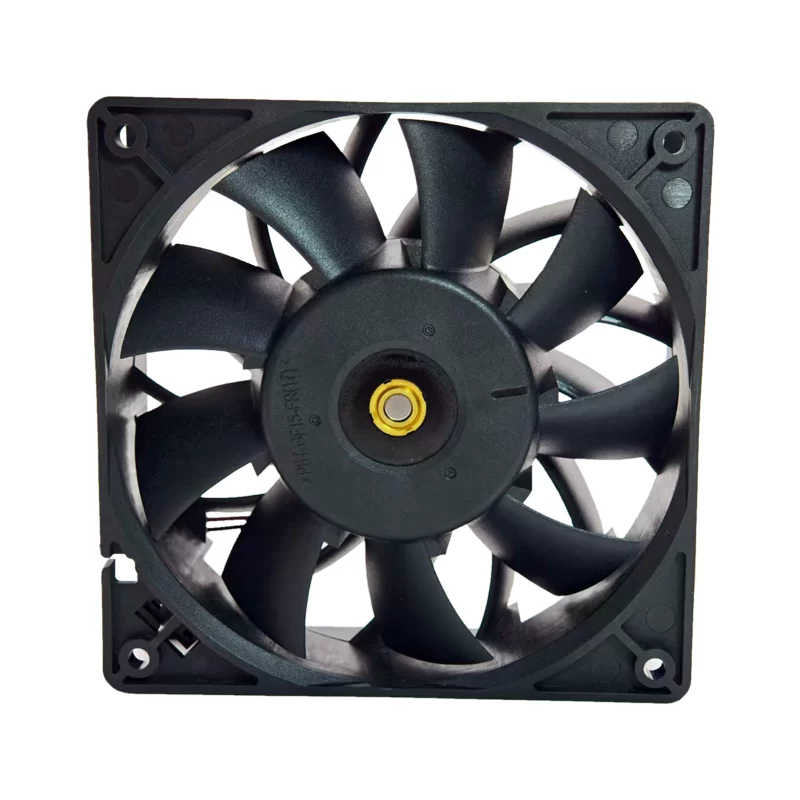

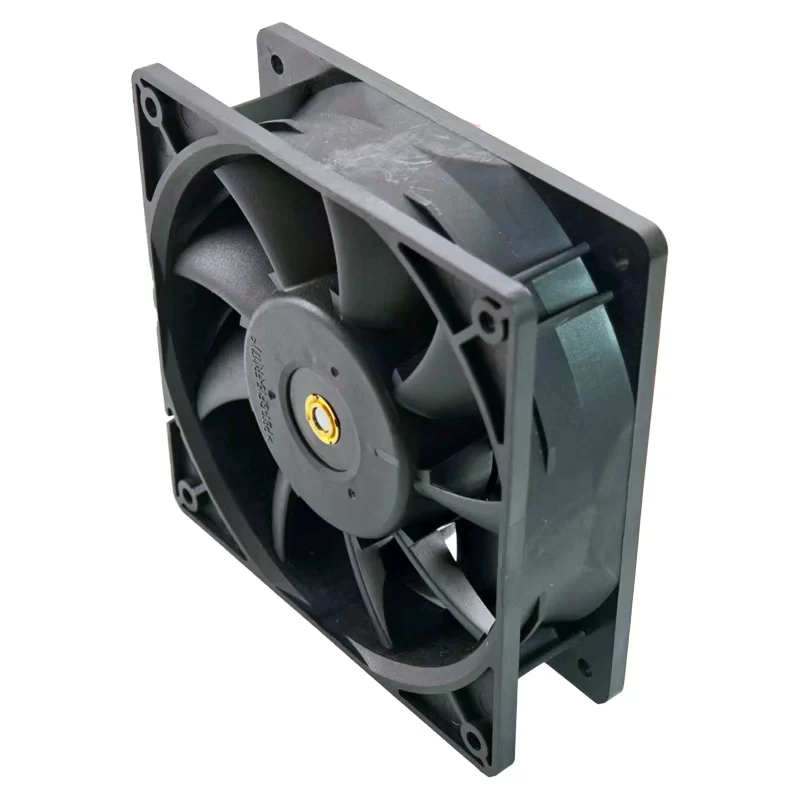

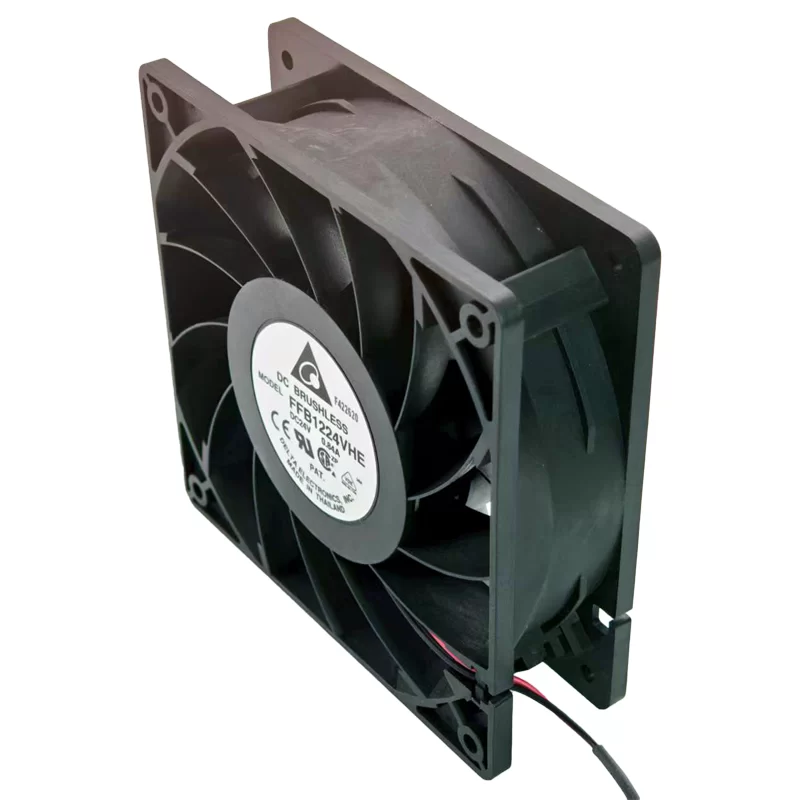

The Delta FFB1224VHE is a high-performance DC Axial Fan with dimensions of 120x120x38mm. It operates on 24VDC, drawing 0.84A of current and consuming 20.16W of power. This fan delivers a very high airflow of 200 CFM (5.66 m³/min) at a speed of 4800 RPM, with a substantial static pressure of 1.05 Inch-H2O and a noise level of 62 dBA. Featuring a durable ball bearing system and a 2-wire lead for connection, it is designed for demanding cooling applications where high airflow and pressure are critical.
FFB1224VHE Fan Parameters
Model: FFB1224VHE
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24 VDC
Current Draw: 0.84 A
Power Input: 20.16 W
Fan Speed: 4800 RPM
Airflow: 200 CFM (5.66 m³/min)
Static Pressure: 1.05 Inch-H2O
Noise Level: 62 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire lead
Life Expectancy: 70,000 hours at 40°C
Weight: 250 g
Application: Servers, Industrial equipment, Telecommunications, High-performance cooling systems
