Description

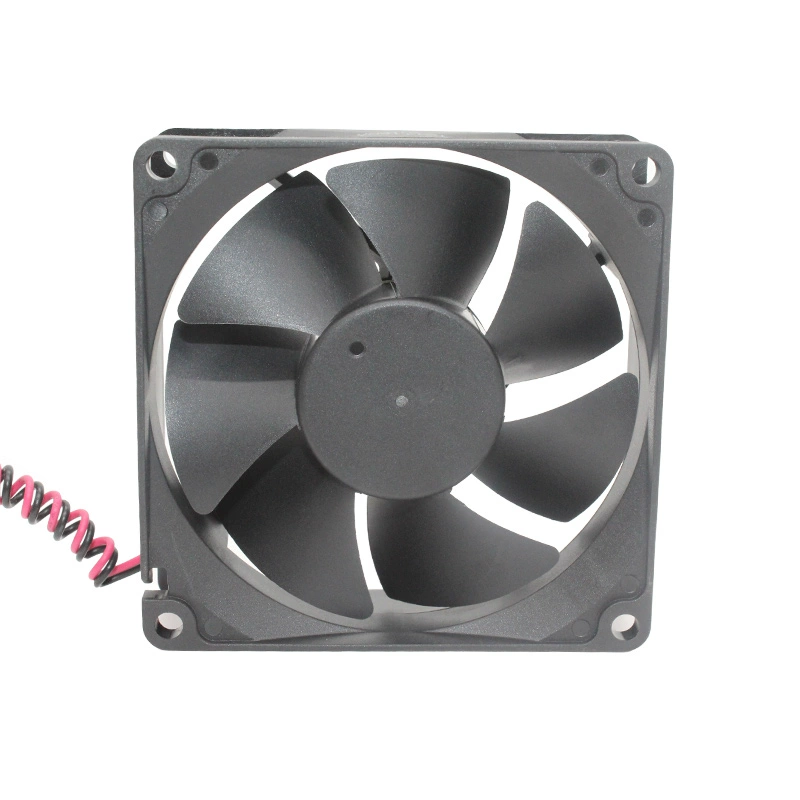

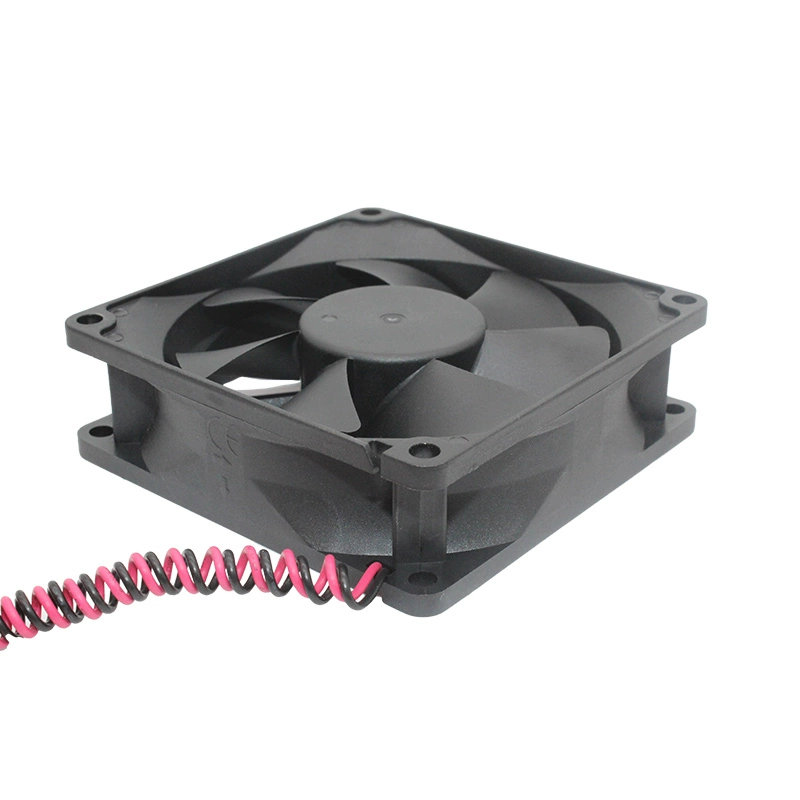

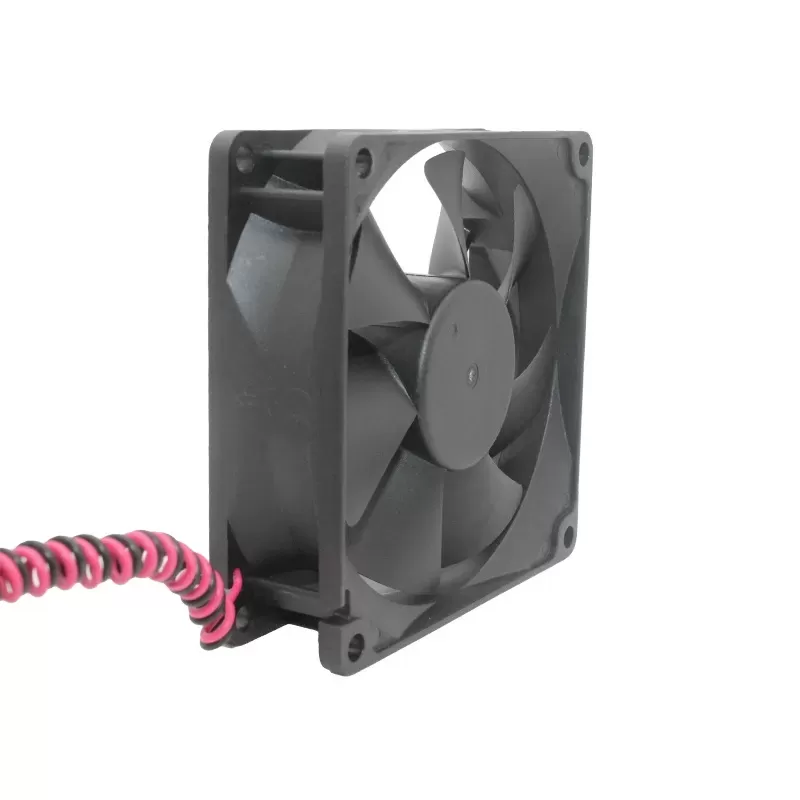

The Y.S. TECH FD128025EB-N is a powerful 12V DC axial cooling fan, measuring 80x80x25mm. It operates with a rated current of 0.45A (5.4W). This fan achieves approximately 3800 RPM, providing strong airflow suitable for demanding cooling tasks within computer chassis, CPU coolers, and server applications.
It features durable double ball bearings for extended reliability. Depending on the specific variant, it can come with either 2-wire leads or a 4-wire PWM connector that includes speed measurement for precise control. It’s designed to deliver efficient cooling performance for its size, making it a popular choice for high-performance cooling solutions.
Manufacturer: Y.S. TECH
Model Number: FD128025EB-N
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm (3.15″ x 3.15″ x 0.98″)
Rated Voltage: 12V DC
Rated Current: 0.45A
Rated Power: 5.4W
Speed: Approximately 3800 RPM
Airflow: Typically 40-50 CFM
Static Pressure: Typically 0.20-0.30 inch-H2O
Noise Level: Around 30-40 dBA
Connector: Commonly 2-Wire
Bearing Type: Double Ball Bearing
Life Expectancy: Typically 50,000 to 70,000+ hours at 40°C
Operating Temperature: Typically -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
