Description

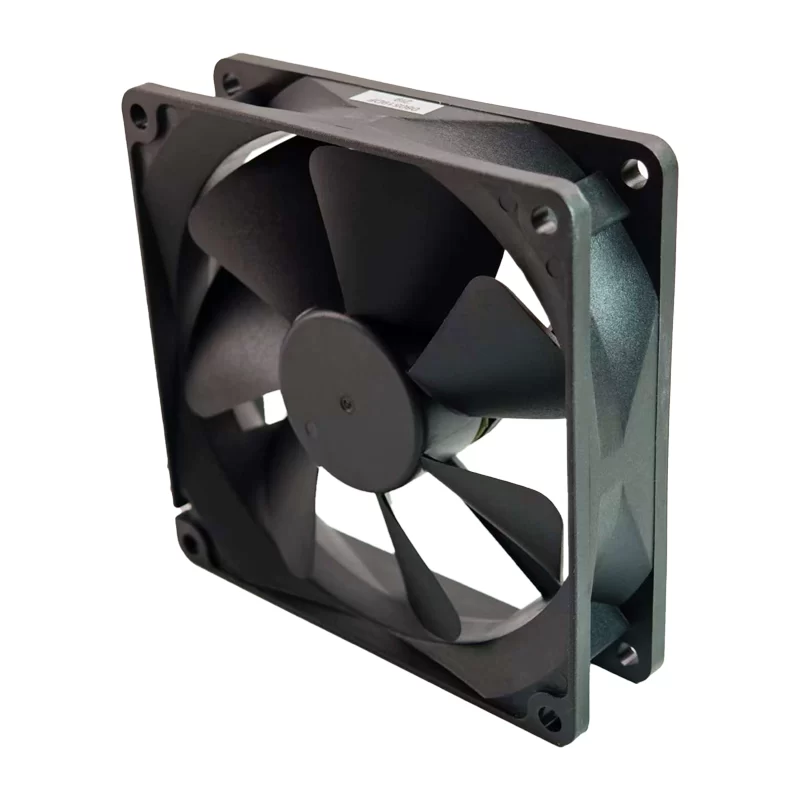

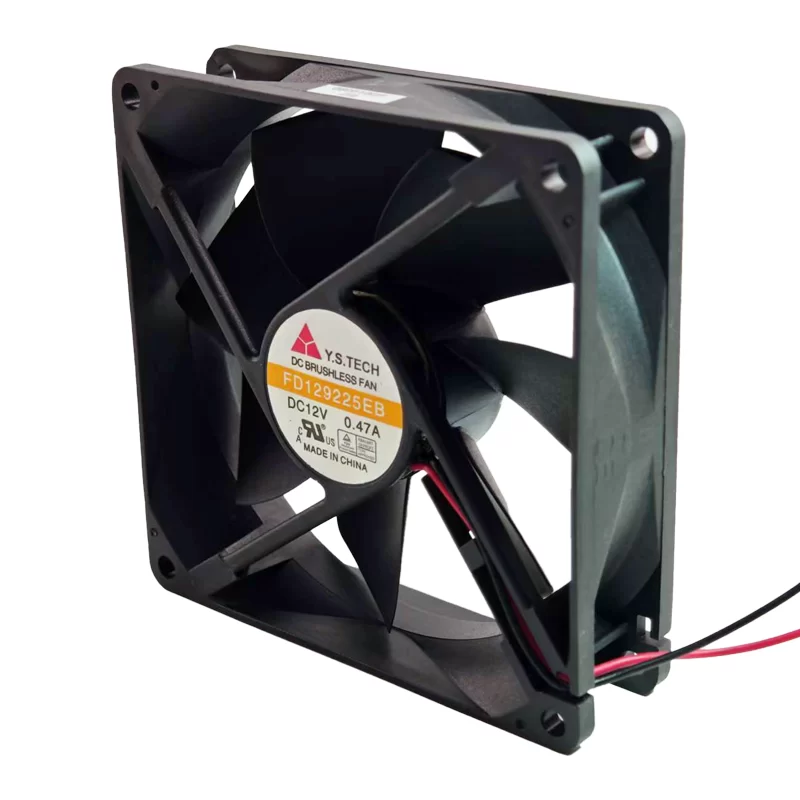

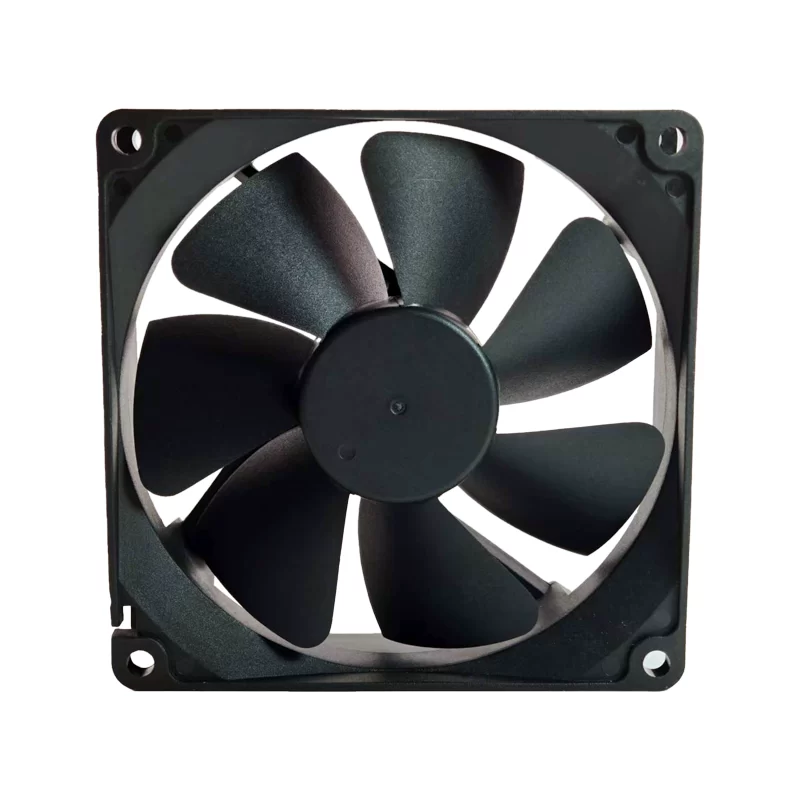

The Y.S.Tech FD129225EB is a powerful 12V DC axial cooling fan measuring 92mm x 92mm x 25mm. Operating at a rated current of 0.47A (5.64W), this fan is engineered for demanding thermal management applications requiring substantial airflow. It achieves a high rotational speed of 4000 RPM, delivering 84.0 CFM of airflow with a static pressure of 0.24 inch-H2O (59.7 Pa). Its noise output is 48.0 dBA, reflecting its increased performance. The fan is typically equipped with ball bearings for a long operational life of 65,000 hours at 40°C. Connectivity is generally via 2-wire leads, though 3-pin variants with tachometer output may exist for specific OEM configurations. Integrated features usually include auto-restart and polarity protection, ensuring dependable performance.
Model Number: FD129225EB
Manufacturer: Y.S.Tech
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage: 7.0V to 13.2V DC
Rated Current: 0.47A
Rated Power: 5.64W
Speed: 4000 RPM
Airflow: 84.0 CFM / 2.38 m³/min
Static Pressure: 0.24 inch-H2O / 59.7 Pa
Noise Level: 48.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing (2B)
Life Expectancy: 65,000 hours at 40°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (typically PBT, UL 94V-0)
Impeller Material: Plastic (typically PBT, UL 94V-0)
Features: Auto Restart, Polarity Protection
